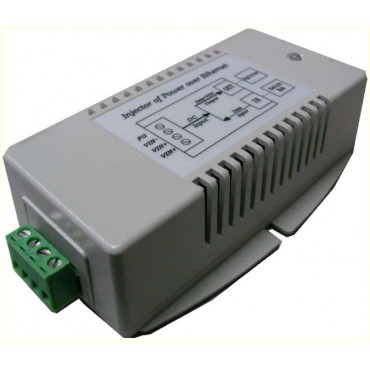

Tycon TP-DCDC-4848GD-HP DCDC converter with PoE, 36-72V input, output 56V, 35W, 802.3af/at

Tycon TP-DCDC-4848GD-HP DCDC converter with PoE, 36-72V input, output 56V, 35W, 802.3af/at

Tycon TP-DCDC-4848GD HP's HP-voltage converter with PoE port with power by 802.3. Input voltage 36-72VDC regulated at 56V/0.625. Source has two isolated inputs for redundant power supply. ; ; Application: ; 48V battery systems ; Wireles...More information

Producer

TYCON Power

Part No.

TP-DCDC-4848GD-HP

Code

00018888

Warranty

2 Year

Availability

Availability in stores

Order

Your price exc. VAT

2 544 Kč exc. VAT

VAT

21%

Your price inc. VAT

3 078 Kč inc. VAT

Ask for a better price

Description

Tycon TP-DCDC-4848GD-HP is HP voltage converter with POE port with power supply according to standard 802.3at. The input voltage 36-72VDC is regulated at 56V/0.625A. The source has two insulated inputs for redundant power.

Use:

48V battery systems

wireless access points and client stations

security cameras, IP phones

Parameters

Physical parameters
DC Output Voltage (V)	56
Input Voltage (V)	48
Local signalling	LED
Network interface (Mbps)	10/100/1000, 1000
Ochrana proti podpětí	Ne
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Operating Temperature	-30° až +60°C
Output Current (A)	0.35
Output Power (W)	35
Remote signalling	Ne
Depth (mm)	85
Design	Standalone
Efficiency (%)	75
Height (mm)	36
Weight (kg)	0.134
Width (mm)	76
PoE parameters
Number of PoE ports	1
PoE standard	802.3at, 802.3af
Powering
PoE	Yes
Typ zdroje	PoE
