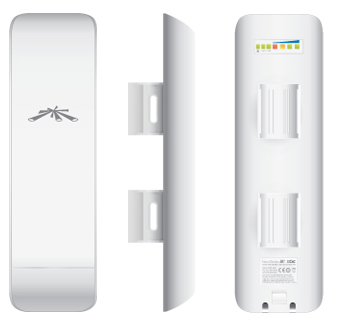

UBNT airMAX NanoStation M2
UBNT Airmax Nanostation M2 is 802.11n Outdoor CPE unit with integrated duplex 11 dBI antenna for 2.4 GHz bands using TDMA and 2x2 outside protocols.More information
NSM2
Ask for a better price
Parameters
| Antenna gain 5 GHz (dBi) | 11 |
| Category | Wireless networks |
| Consumption | 8 |
| CPU - frequency (MHz) | 400 |
| Encryption | WPA2 |
| IPv6 support | Transparent (Bridge mode) |
| Network interface (Mbps) | 10/100 |
| Operating Temperature | -30° až +75°C |
| Processor | Atheros MIPS 24KC |
| RAM | 32 MB |
| Sensitivity (dBm) | -96 |
| Speciální funkce | PoE out |
|
Physical parameters |
|
|---|---|
| Depth (mm) | 31 |
| Design | Outdoor |
| Height (mm) | 293 |
| Počet LAN portů | 2 |
| Weight (kg) | 0.4 |
| Width (mm) | 80 |
|
Powering |
|
| Power Supply | PoE |
|
Wireless parameters |
|
| Antenna type | Vestavěná, Sector |
| Frequency | 2,4 GHz |
| MIMO (2,4 GHz) | 2x2 |
| Operating mode | AP, Client, Client Router (wisp), Repeater, AP Router |
| WiFi Standards | WiFi 4 (802.11n), 802.11b/g, airMAX |
| WIFI transfer rate - 2.4 GHz [Mbps] | 300 |
Do you need help?
We will help you with product selection or technical problems.
Bc. Petr Křápek
Product managerProducts classification
Product question
Product question
Do you need help?
We will help you with product selection or technical problems.
Bc. Petr Křápek
Product managerDownloads2
Related products4
Related products
UbiBracket universal adjustable wall mount or pole for all NanoStation and Loco
UbiBracket universal adjustable wall mount or pole for all NanoStation and LocoStation Home; Džák can be attached to the pipe diameter up to 60 mm
exc. VAT
inc. VAT
UBNT holder window or wall for NanoStation
Excellent plastic holder intended to places where it is not possible to drill through the suction cup so it can be mounted on the window. The bracket can be locked in all directions.
exc. VAT
inc. VAT
UBNT universal mount antennas for all NanoStation and LocoStation
Introducing universal arm bracket (UB-AM) by Ubiquiti. Designed for mounting on walls or poles, UB-AM provides a versatile and robust solution for mounting all your devices.
exc. VAT
inc. VAT
UBNT ETH-SP-G2 - ethernetová přepěťová ochrana
UBNT ETH-SP-G2 is an overvoltage protection from Ubiquiti Networks for outdoor units. This is the effective protection of the device (including POE-powered devices) with a connection speed of up to 1 GBPS that allows you to redirect harmful electrostatic discharges and for example ...
exc. VAT
inc. VAT
GPSR
Ubiquiti International Holding B.V.
Ekkersrijt 3102, 5692 CC Son en Breugel, Netherlands
support@ui.com
You could also need these products
| Code | Article name | Producer | Status | Availability | Price exc. VAT | Price inc. VAT | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|
00030836 | UBNT CRM point-Centralized device management AirMAX | Ubiquiti |
|
83.67 EUR exc. VAT | 101.24 EUR |
|
Last visited
Description

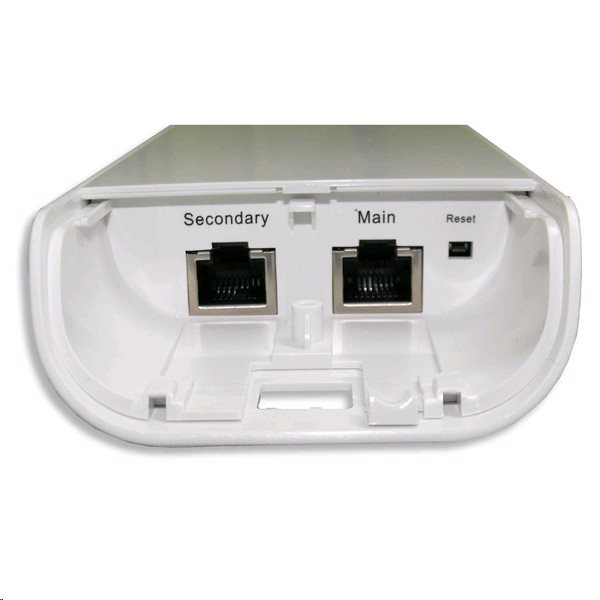

Software-handled POE output on the secondary port allows you to connect additional devices on the mast, such as a security camera or CPE /PTP device.
The biggest advantage of any Airmax devices is, in addition to the high transfer rate thanks to the 802.11n use of TDMA time multiplex. TDMA Airmax protocol allows excellent scalability and high permeability while maintaining low latency in PTMP networks.
Package content
