Tycon TPDIN-Monitor-WEB Remote System Monitor and Control

Monitoring and control system tpdin-monitor-Web V3 is a versatile tool that allows remotely tracking devices and entire locations. The unit can be accessed via network ( web and SNMP ) for remote monitoring up to 4 voltages, 4 currents, 2 temperatures and controlling different devices using 4 relays.

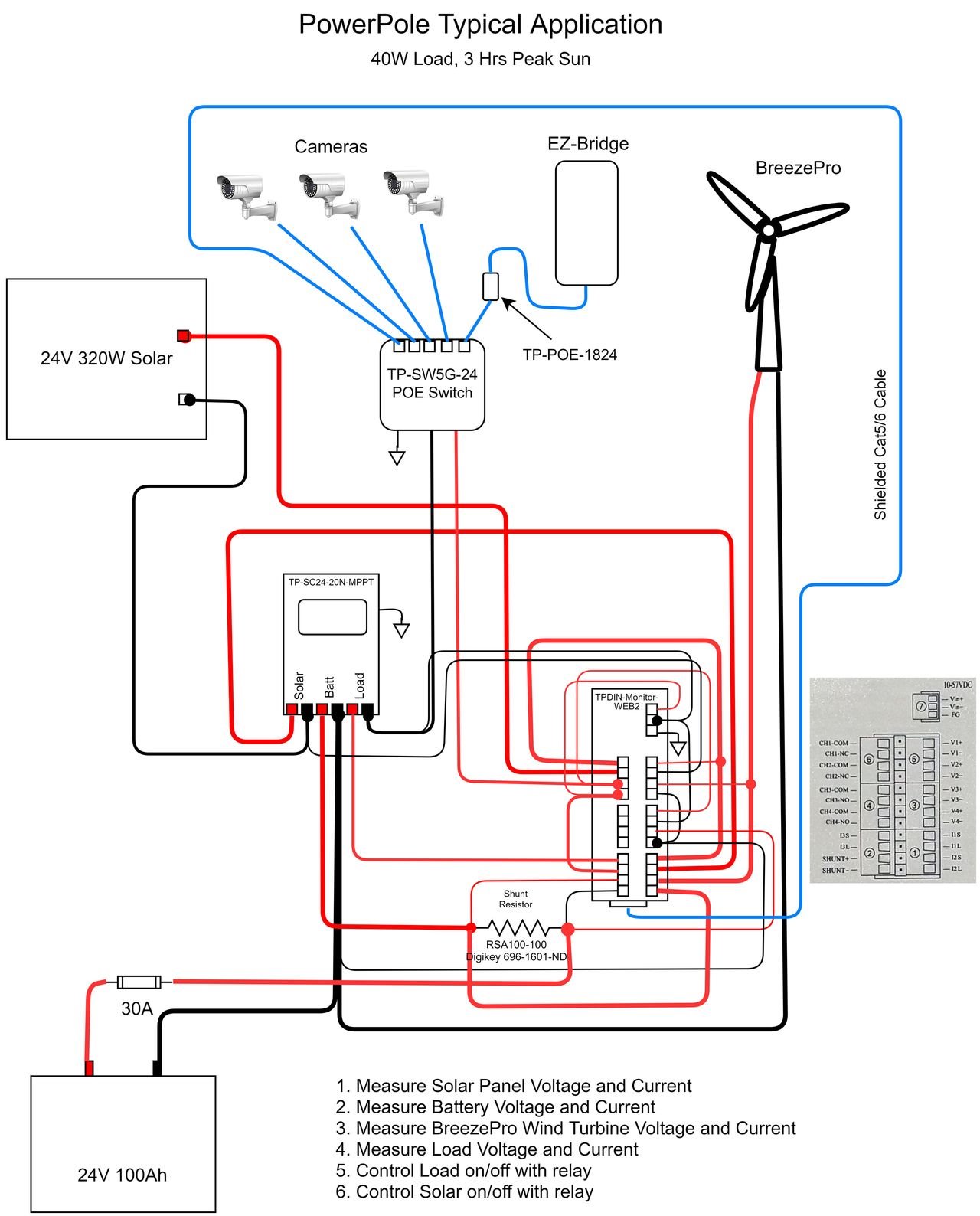

In addition to the common web3 interfaces mentioned above, the Tycon MPPT communicates with a serial cable to tighten the FV voltage, FV current, battery voltage, battery temperature, etc. It also allows manual switching on/off the output power of the MPPT solar regulator via the web interface. This makes it very easy to remotely monitor and control the remote power system, record and create trend graphs, send e-mail warnings and control relay based on integrated sensor or MPPT data.

Integrated data logging and graphing features allow the user to view history various parameters . The graphics interface allows the user to control the relay with a single click and monitor all real-time measurement parameters via any web browser. The web interface allows access and control through desktops, laptops, tablets and smartphones. Tycon App for iOS and Android allows remote access.

The system enables automatic relay control based on voltage, current, temperature, time, Ping Watchdog and MPPT. This provides almost unlimited flexibility. The relays have a special cycle function per click with programmable cycle times that can be used to turn off the device and turn it on again after a predetermined time by a single click on the button. This is useful for restarting equipment such as PoE SWICH or camera. The CH1 and CH2 relays are normally closed, the CH3 and CH4 relays are normally open.

Two of the current monitoring ports can monitor the current flow direction. This is useful for battery monitoring-detection when the battery is charged and when it discharges. One of these current ports supports external current sidebets, so you can watch very large currents. The user interface allows rapid calibration of external sidewalls by entering the nominal MV and the side of the side.

The connection is made using removable connectors. This makes it easy to remove problems and maintenance, as the unit can be removed from the system without disturbing the system cabling. Of course there is integrated overvoltage protection to prevent electricity damage.

The user-defined labels for each parameter ensure that when checking the web interface or graphs, it is possible to quickly identify the parameter they concern. Each parameter has a programmable +/-offsets in order to be able to calibrate at the site of deployment and compensate for, for example, loss of lines or fluctuations in the measuring device. This provides insurmountable flexibility as each device can adapt to the user to their specific needs.

The unit can be set to send e-mails with the current values of parameters on the basis of a periodic period of time or based on parameters exceeding programmable limits. Using SNMP allows the user to create a fully automated remote system for data collection and control.

Function:

• remote monitoring 4 voltage, 4 currents and 2x temperature
• Remote control of the device using 4 relay ( 2x nc and 2x no)
• Connection to Tycon MPPT solar controllers using a serial cable
• automatic relay control of voltage, current, temperature, ping, time and data from MPPT
• Access via web or SNMP
• Automatic Sending Notification by Email
• Local logging and graphs
• Power supply via POE (802.3af or passive) or DC

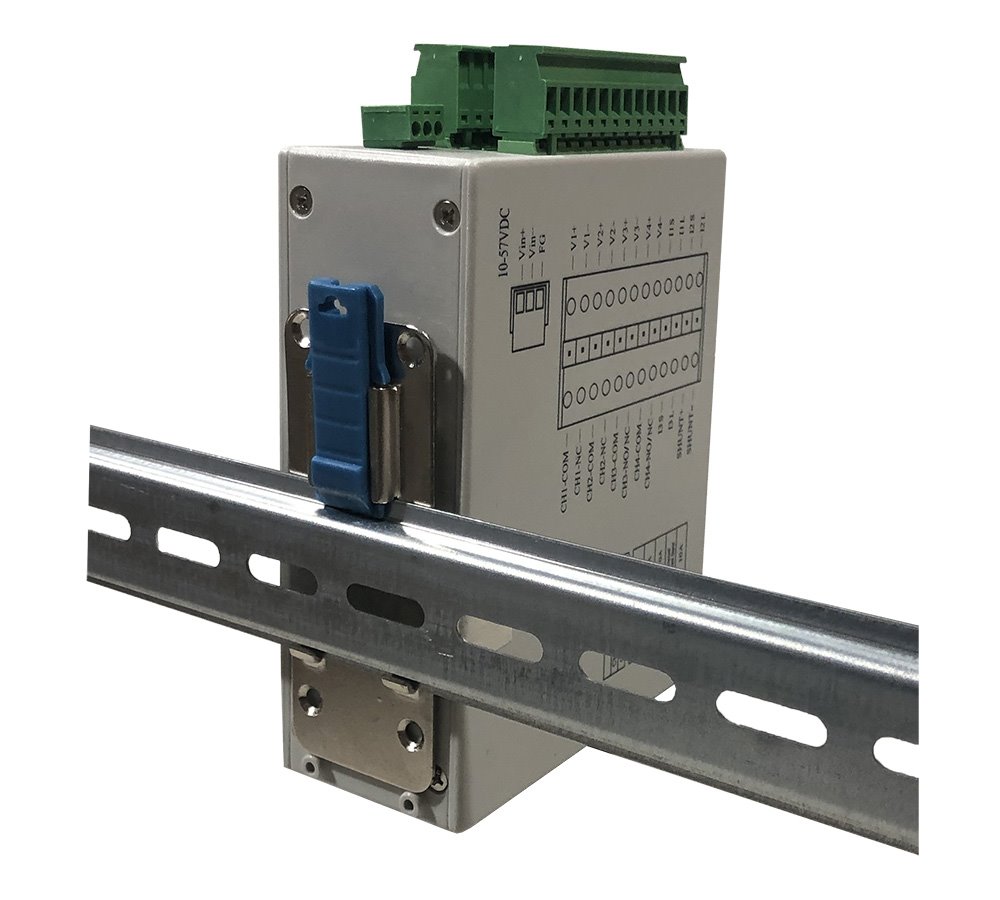

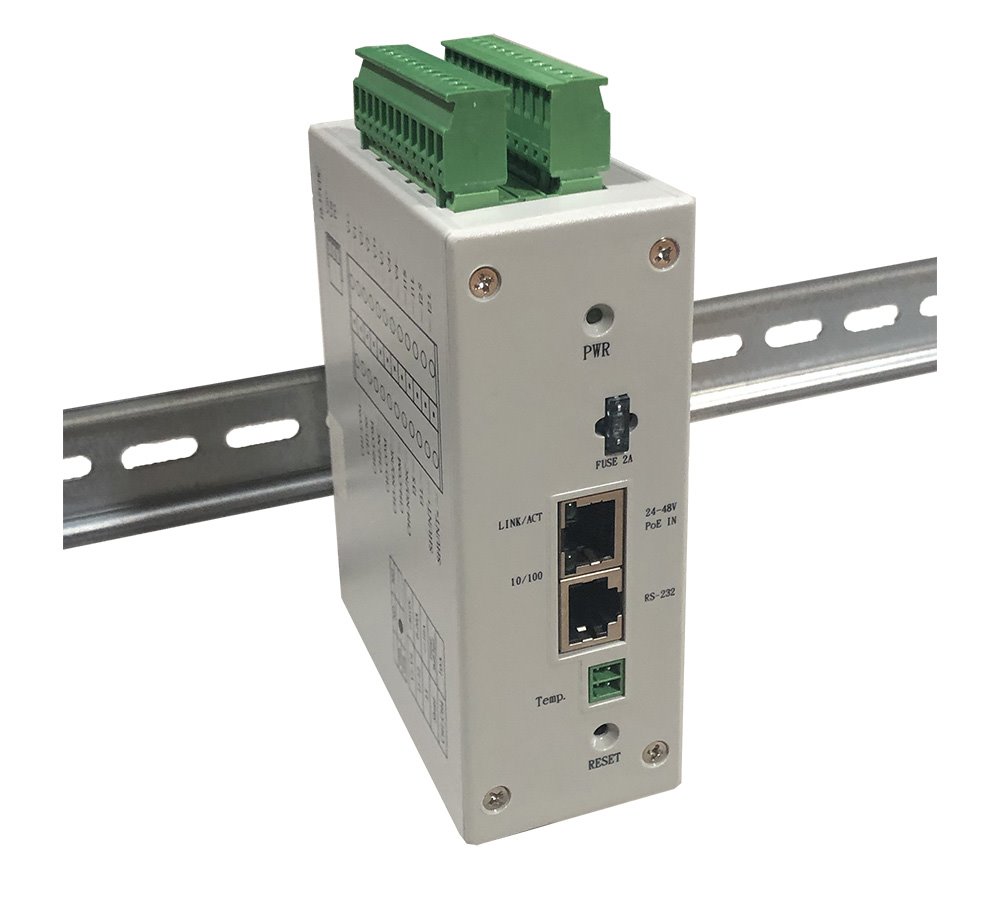

• Installation on the DIN Railway

The whole system can be tested in the online demo below (user"demo", no password):
