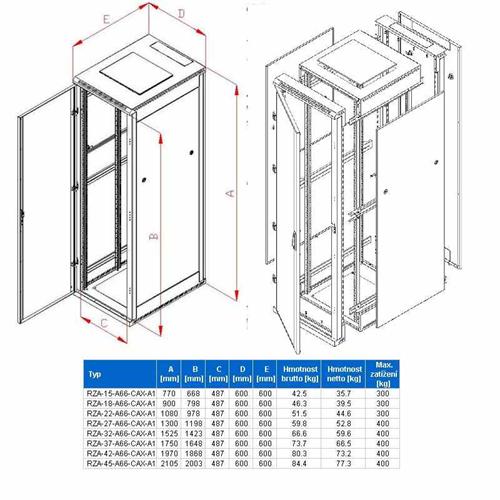

RACK Triton, 19", 45U, 600x600mm, glass door, stand, disassembly, gray

The individual parts of the RZA are connected by the screw joints system into the compact unit with the same load capacity as the welded switchboard.
Most parts are connected by threading bolts TAP-Lite technology.
This ensures the high strength of the screwed joint even after several disassembly.
The product is supplied in the assembled state and its relocation to hard-to-reach places is possible after partial or complete disassembly.

parameters:

name	value
Type:	Stand
pitch:	19"
Covering:	IP 20
doors:	glazed
sidewall:	Removable
height:	45U
width (mm):	600
depth (mm):	600
height (mm):	2105
Color:	gray
Weight (g):	77 300
Max. Load (G):	400 000
Material:	Safety hardened glass thickness. 4 mm, steel sheet

Package content:

key-removable covers 2x

key-front door 2x

Floating nuts M6 16x

Anti-draft plug 1x

rectification bolt/foot for switchboard 4x

matrix M10 4x
