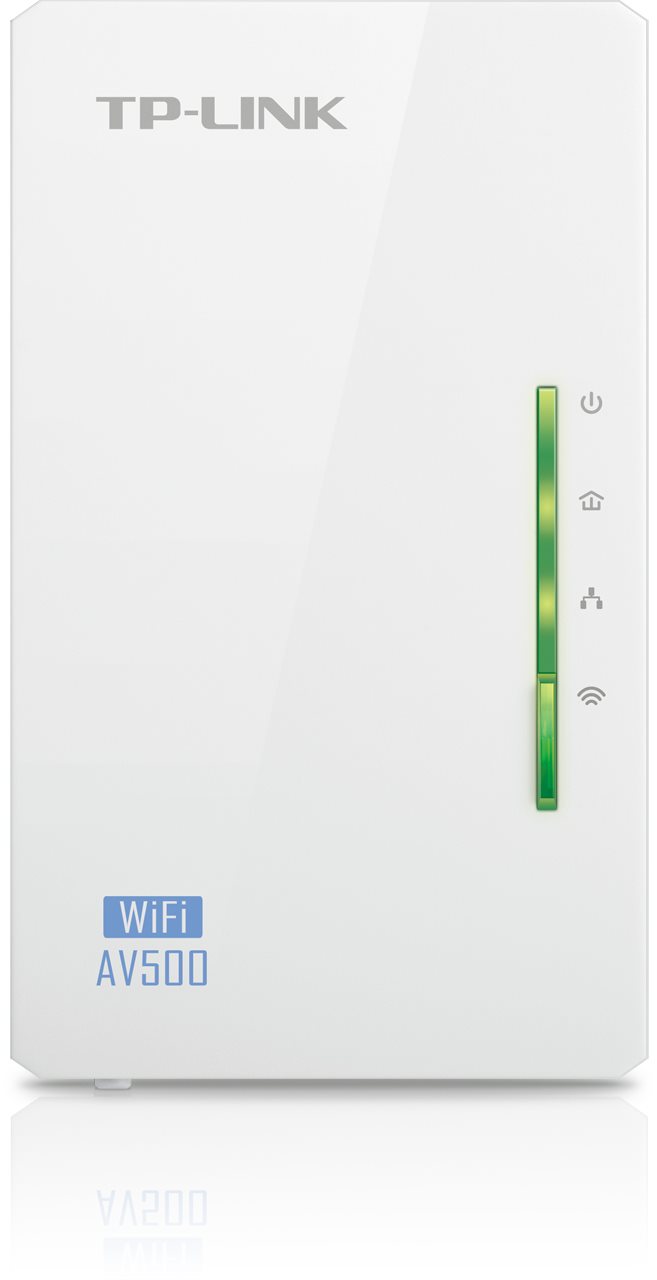

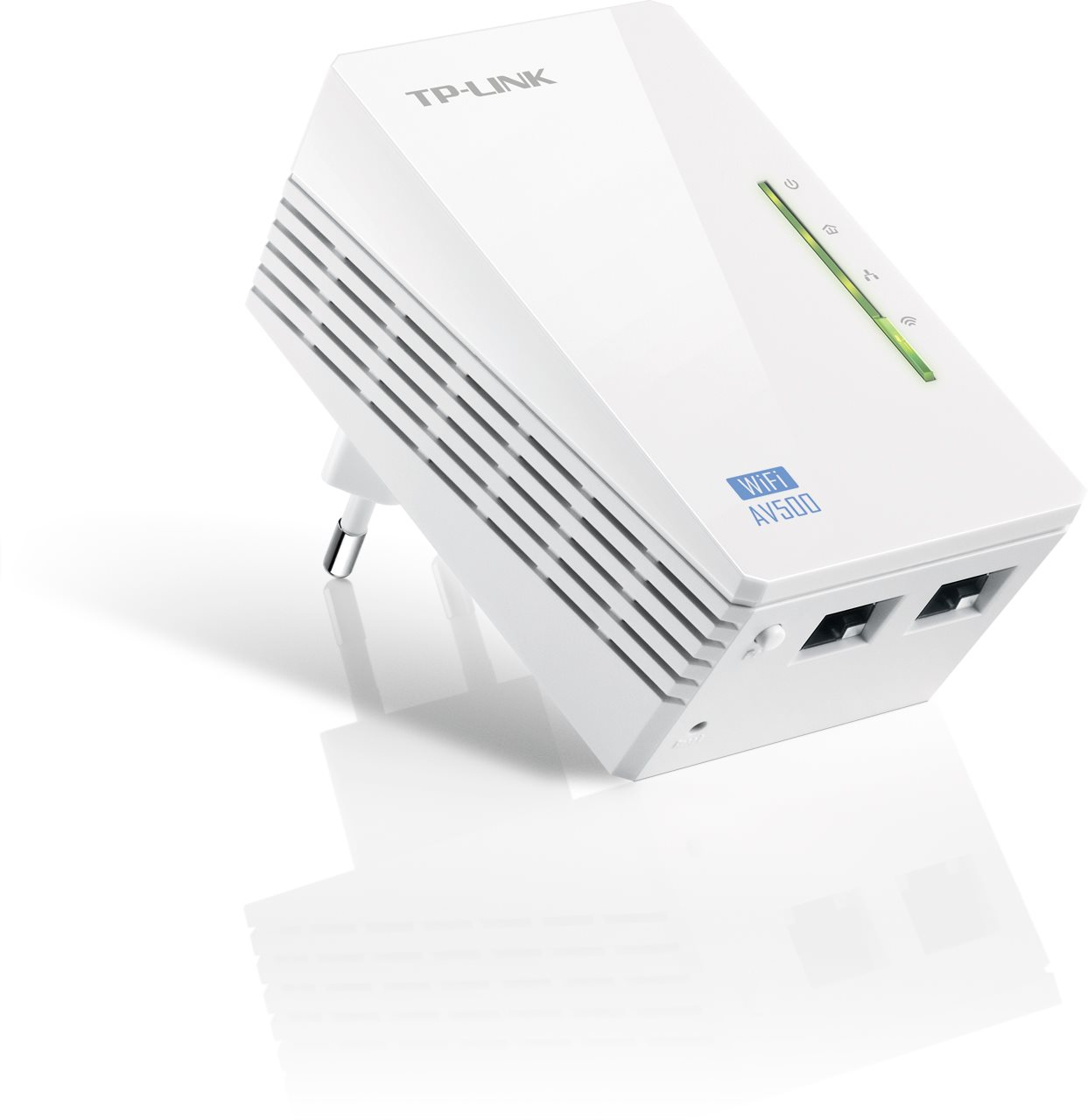

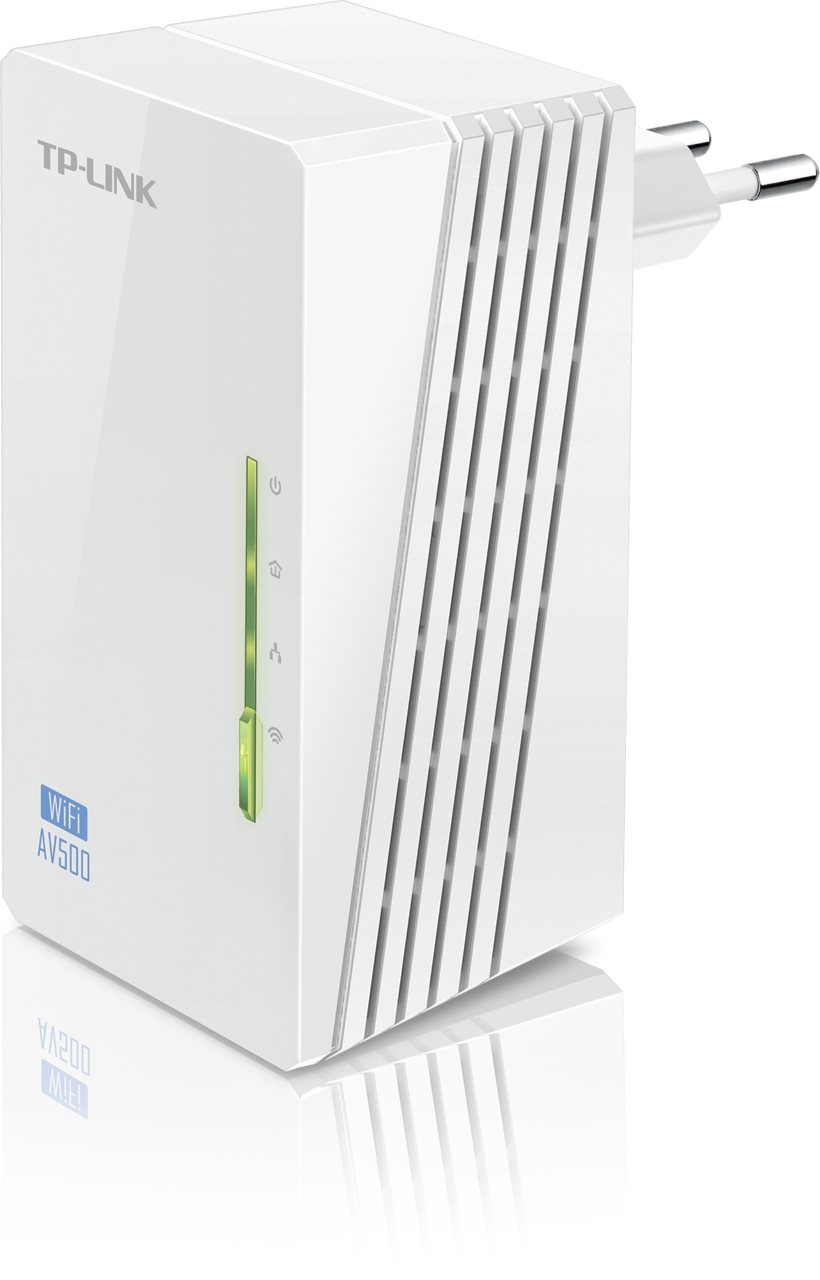

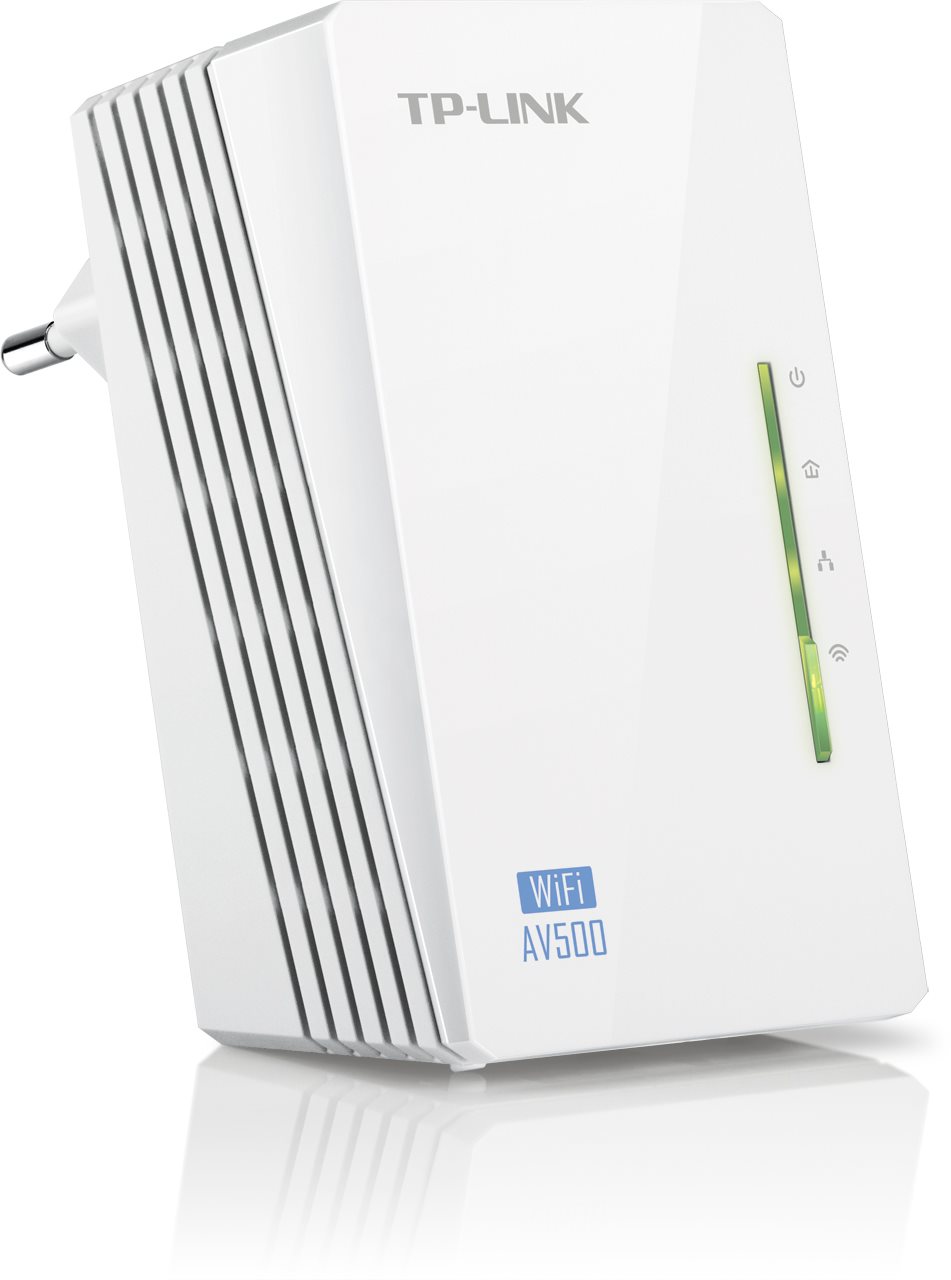

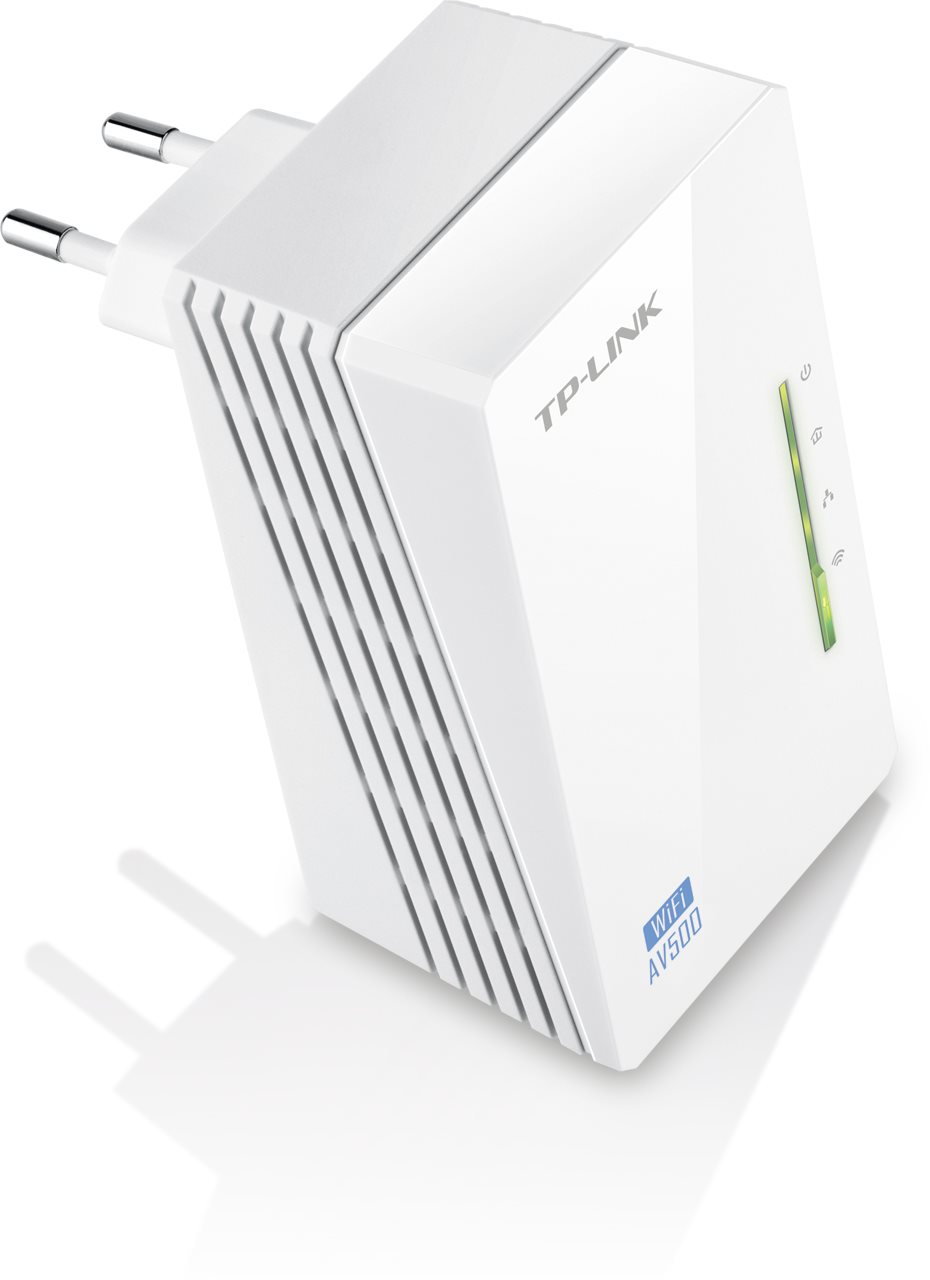

Powerline Ethernet TP-Link TL-WPA4220 500Mbps, WiFi 300Mbps

Adapter Powerline Ethernet TP-Link TL-WPA4220 will expand your internet connection to any room in your home using an existing electrical outlet. The TL-WPA4220 is equipped with Wi-Fi Clone to expand range, which means that it can automatically copy the SSID and password of your router . In this way, the TL-WPA4220 simplifies Wi-Fi configuration and allows trouble-free roaming within your home network.

600 Mbit/s-Ideal for streaming HD videos

With advanced HomePlug AV adapter, the TL-WPA4220 adapter provides stable and high-speed data transmission at to 600 Mbit/s at a distance of to 300 meters . It is a great choice for a complete home solution designed to connect all network compatible devices-from computers and game consoles to set-top boxes for IPTV, printers and hard drives.

network stability

A huge advantage is possible cooperation with TP-Link products OneEmesh , that will bring more flexible and MESH with a single Wi-Fi title for trouble-free coverage throughout the household. Eliminates the weak areas of the signal once and for all. Advanced Mesh technology arranges to automatically choose the device best possible connection when moving around the household.

engage and play

Within minutes, you can use TP-Link network adapters to create a trouble-free Powerline network. Just connect and play. The"pair" buttons on each adapter can also be used to secure or manage multiple network adapters in your home electricity network.

• Connect one adapter with an Internet connection to an electrical outlet.
• Connect other adapters to your computer/laptop/internet TV or other network device using an Ethernet cable or wirelessly via Wi-Fi and is done!

Specifications

• range: 300 m
• Electric wiring: 128-bit AES
• modulation technology: OFDM (PLC)
• network speed: 600 Mb/s

wireless features

• wifi standards and protocols: HomePlug AV, IEEE802.3, IEEE802.3U, IEEE802.11b/g/n
• transfer speed-2.4 GHz: 300 Mb/s
• Antenna type: built-in
• Integrated WiFi: Yes
• antenna gain[dbi]: <2

connectors and interfaces

• LAN speed: (2) 10/100 Mbps

power

• Max. Energy consumption[W]: 7.6

physical properties

• buttons: pair, reset, wifi/wifi clone
• operating temperature[° C]: 0 to 40
• Dimensions TL-WPA4220 (W x H x H): 54 x 94 x 40 mm
• Dimensions TL-PA4010 (W x H x H): 52 x 65 x 28.5 mm

Package content

Powerline Ethernet Adapter TL-WPA4220
2m Ethernet cable (RJ45)
Resource cd
Quick Installation Manual
