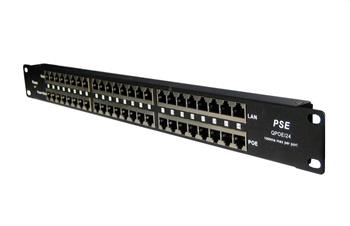

Shielded 24-port passive POE panel

Panel integrating 24 passive Poe injectors, suitable for powering up to forty-two devices, in the 19"seagull.

Professional solutions for remote power of larger number of active elements with integrated extractor after UTP cabling.

Adding this passage panel to the switchboard to get a power center that you can easily connect between the existing switch and patchpanel that already leads to a powered device (IP camera, IP telephone, wireless elements, etc.)

parameters:

name	value
Maximum allowed input values:	Jack 57V/8A, Terminal Country 57V/16A
Ports output:	according to the type and power of the attached external power adapter
Data steam:	1/2 &3/6
Power of steam:	4/5 (+) &7/8 (-)
OCP protection:	Refuse fuse on each port (1000mA, +15#i6per#/-10#i6per#)
Data in Connector:	For connecting PC/HUB/Switch
Weight (g):	670
Dimensions (mm):	483 x 44, 5 x 25
LAN:	10/100MBPS
Ethernet standards:	TIA/EIA 568 CAT.5
Connectors:	rj-45
Power input:	2x (1.
Operating temperature (° C):	0 to 40
