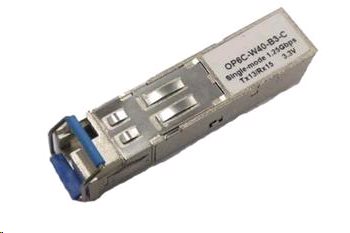

SFP WDM 1.25Gbps, LC simp., 10km, SM, 1310nm, DDM, 0-70°C, HP

Name: SFP WDM 1.25Gbps, LC simp., 10km, SM, 1310nm, DDM, 0-70°C, HP
Brand: OEM
SKU: 35572
Price: 14.95 EUR
Availability: InStock

with TX wavelength: 1550, for temperature range 0 to 70 ° C, HP compatibleMore information

Producer

OEM

Part No.

FA-S125-W31-LP-LR-D-HP

Code

00032879

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

12.35 EUR exc. VAT

VAT

21%

Your price inc. VAT

14.95 EUR inc. VAT

Ask for a better price

Description

It is a compact optical transceiver used in telecommunications and data networks. It is popular, widespread, manufacturers of active optical components massively supported module
Special WDM modules are used for two-way operations that work on the principle of different broadcast wavelengths (always in pair type A and type B) and have already built-in WDM filter.

parameters:

name	value
Format:	SFP
Transfer type:	WDM 1 Trainer
Connector type:	LC Simplex
for fiber/cable:	SM
Better speed:	1.25 Gbps
Transmission protocol:	1000MBPS Ethernet
Transmission protocol:	FIBRE CHANNEL 1x
range:	10 km
Compatibility:	HP
Wavele length TX:	1310nm
Wave length RX:	1550nm
dmi diagnostics:	Yes
Operating temperature range (° C):	0 to 70
type of transmitter (TX):	dbf ld
spectral width (nm):	4
Detector type (RX):	Ingaas Pin-Ti
Transmitter Power (dbm):	-9 to-3
Reciever Sensitivity (DBM):	-20
Power Budget (DB):	11
Reciever overload (dbm):	-3

Parameters

Ethernet parameters
SFP bit rate	1,25 Gbps
SFP compatibility	HP
Optical parameters
Fiber type	Singlemode
Optical connector type	LC
Reach (km)	10
RX wavelength (nm)	1550 nm
Simplex / Duplex	Simplex
Temperature Range	Commercial
Transmission type	1 thread (WDM)
TX wavelength (nm)	1310 nm
