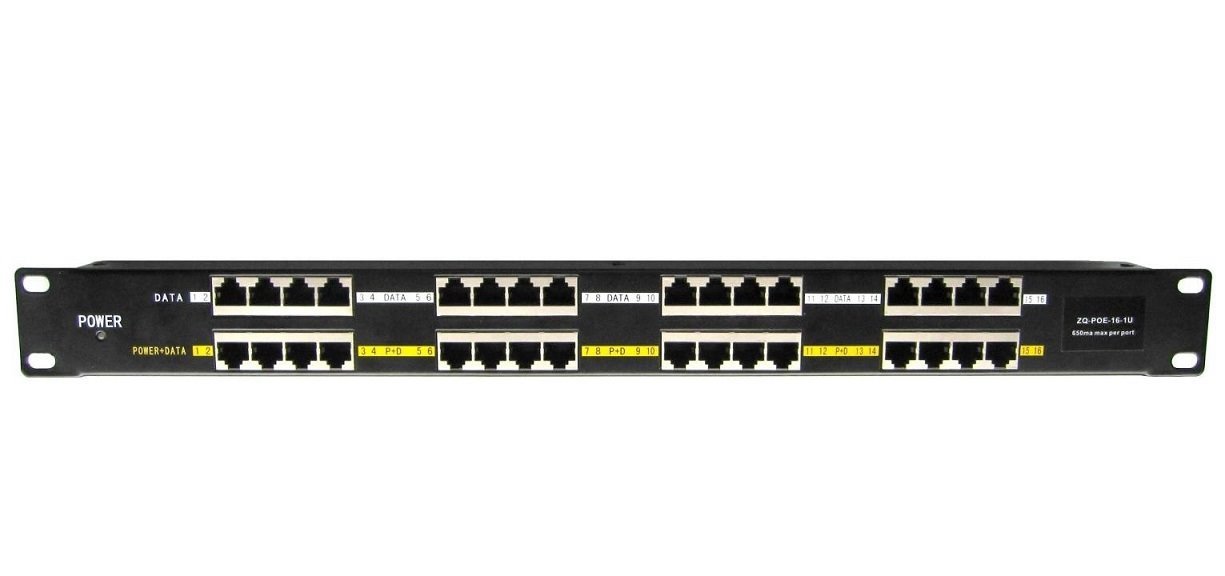

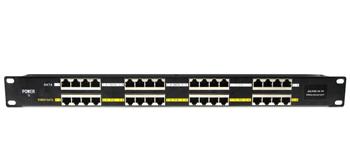

PoE panel 19", mounted, shielded, 16 x RJ45, passive PoE injector

A professional panel that integrates 16 passive PoE injectors and is suitable for powering up to sixteen devices with integrated PoE extractor. It is a very suitable solution for powering wireless devices, IP phones, IP cameras, etc. If the power supply has no POE extractor, it can be combined with passive PoE splitter.

On the one hand, Ethernet ports are connected to the RJ45 connectors, for example from switch (without power). On the other hand (marked POE), UTP cables are then connected to lead to equipment that also supply. Two unused ethernet cable pairs are used to power. Power is held in pairs 4.5 (+) and 7.8 (-).

• version 19"Rack
• LED light for visual monitoring of operation
• Grounding member for filtering overvoltage on the back of the panel
• Refundable Fuse against current (OCP protection 650 ma) on each port
• Input for the power connector (Jack 2.5 mm POSITIVE Center)


parameters:

• name	value
  Input power:	0-240V AC 50/60Hz
  Output:	According to the type and power of the connected power adapter
  Data steam:	1/2 &3/6
  Power of steam:	4/5 (+) &7/8 (-)
  OCP protection:	RFEM Fuse RF60 on each port
  Weight (g):	680
  Dimensions (mm):	482.6 x 44.3 x 21.8
  LAN:	10/100Mbps
  standards:	TIA/EIA 568 CAT.5
  Connectors:	rj-45
  Power input:	for 2.5/5.5mm jack
  Operating temperature (° C):	0-40
  Certification:	CE
