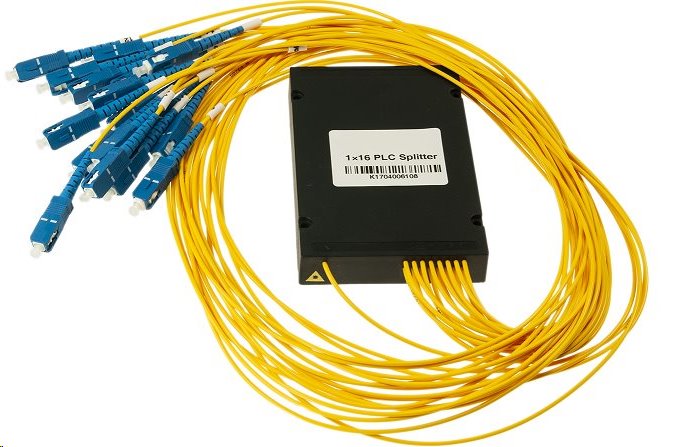

PLC Splitter ABS BOX 1x16, 1260-1650 nm, SM PLC 2 m, SC, G.657A2

Optical hub 1:16 1260-1650 nm, SM PLC 2m SC

Planar Lightwave Circuit Splitter \u003d PLC hub. PLC FTTX splitters are a key building element for FTTX access networks type P2MP (Point to Multi-Point). They have excellent optical characteristics-low attenuation and high reflection. The compact dimensions of these splitters allow easy installation in switchboards and optical baths. For passive optical networks (Epon, Bon, Gpon, etc.). They are in line with the Telcordia GR-209-Core, Telcordia GR-1221-Core, YD/T1117-2001 and Rohs norm.

Planar branch respectively. PLC Splitters OCC can be characterized as a uniform, broadband power splitters with excellent transmission parameters, especially in terms of the uniformity of the insertion of all channels in the range of transmission spectrum from 1260 to 1650 nm. The total value of the insertion of the splitters OCC exceeds the theoretical values only minimally, from 0.5 dB (for splitter 1x2) to 2.5 dB (for splitter 1x128, ie a total of 7 times the input signal energy in half).

OCC PLC Splitters are the best choice for diverse applications from telecommunications and sensor technology. Based on PLC planar pipeline technology, the OCC splitters represent an optimal ratio between power, dimensions and price.
