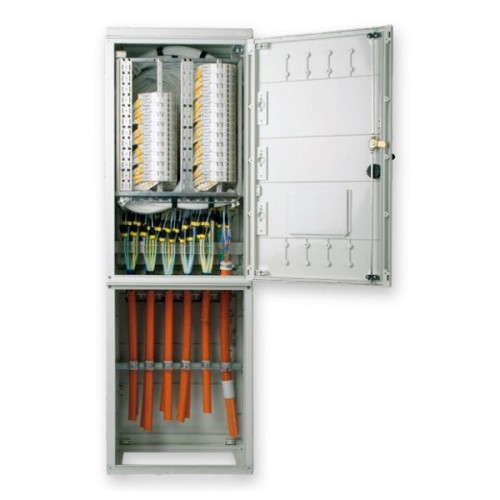

Optical switchboard ORU 3 SIS

The ORO 3 SIS optical switchgear is designed as a universal pillar switchboard with a tilting frame for mounting up to 24 pieces of Safetnet cassette modules, for ending or connecting optical cables blown in micro-racks or HDPE protectors. The construction of the switchboard allows its use in the indoor and outdoor environment. The switchboard is installed in the open space into the excavation.

capacity of optical welds max. 864 pcs

capacity of attached participants max. 288 (2 fibers per participant)

Number of cassette modules Safetnet max. 24 pcs

Saving an optical fiber reserve 4 m

base in variants V \u003d 300, 500, 600, 700, 900 mm

Possibility to install oval bushing for indivisible cable (so-called"omega")

parameters:

name	value
Bushes:	12 × rubber bushing of 50 mm
degree of coverage:	IP 54 according to ČSN EN 60529
degree of self-extinguishing:	v0 according to UL 94
impact protection degree:	k 10 according to ČSN EN 50102
Color:	Light gray RAL 7035
Material-switchboard:	Prepreg SMC
Material-Bushings:	PA6/PVC
Material-metal parts:	aluminum
Dimensions (mm):	1600 × 550 × 350
Weight (kg):	53
