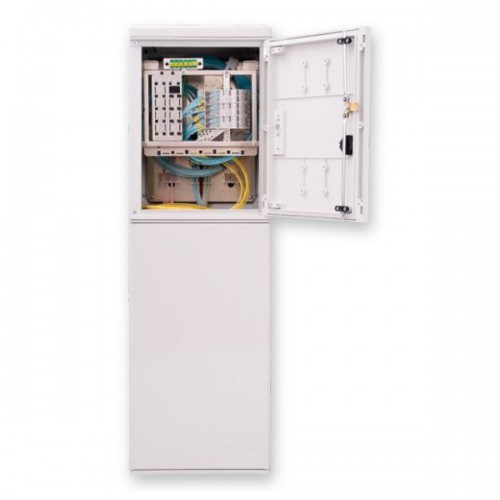

Optical switchboard ORU 1 SIS

Constructed as a universal pillar switchboard with a tilting frame for mounting up to 4 pieces of Safetnet cassette modules, for ending or connecting optical cables blown in micro-tracks or HDPE protectors. The construction of the switchboard allows its use in the indoor and outdoor environment. The switchboard is installed in the open space into the excavation

capacity of optical welds max. 144 pcs

capacity of attached participants max. 48 (2 fibers per participant)

Number of cassette modules Safetnet max. 4 pcs

Saving an optical fiber reserve 2.15 m

option to install connector panel for measurement

base in variants V \u003d 300, 500, 600, 700, 900 mm

Possibility to install oval bushings for indivisible cable (so-called"omega")

parameters:

name	value
Bushes:	4 × rubber bushing of 30 mm, 3 × rubber bushing of 50 mm
degree of coverage:	IP 54 according to ČSN EN 60529
degree of self-extinguishing:	v0 according to UL 94
impact protection degree:	k 10 according to ČSN EN 50102
Color:	Light gray RAL 7035
Material-switchboard:	Prepreg SMC
Material-Bushings:	PA6/PVC
Material-metal parts:	aluminum
Dimensions (mm):	1200 × 390 × 350
Weight (kg):	39
