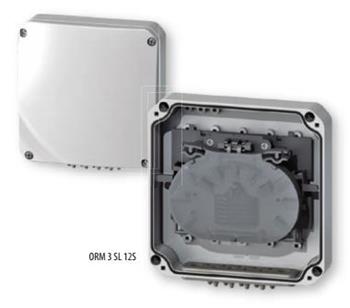

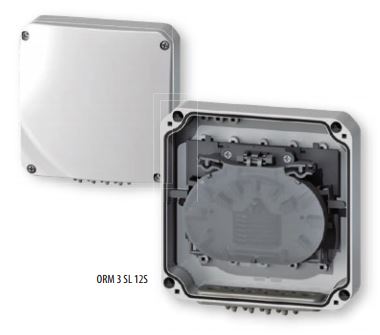

Optical switchboard ORM 3 SL 12S

Capacity 12 splices ; Integrated fiber management ; 1 ×/2 × KM3 cassette for storing splices ; Ability to save PLC splitter ; Save the optical fiber reserve 3 m ; Fixing input/output cables ; 1 x Universal rubber bushing (for"Omega" and the...More information

Producer

OEM

Code

00030717

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

16.24 EUR exc. VAT

VAT

21%

Your price inc. VAT

19.65 EUR inc. VAT

Ask for a better price

Description

It is designed to store a maximum of 12 optical welds in both indoor and outdoor environments. The switchboard can be completed with a holder that allows installation to the column

capacity of 12 welds

Integrated fiber management

1 × KM3 cartridge for storing welds

Possibility to store PLC splitter

Saving an optical fiber reserve 3 m

Fixing input/output cables

1 × universal rubber bushing (for"omegu" and individual inputs/outputs)

Use only for g657a fibers, b

lid fixed bolts

Installation on the wall, on the column

IP 54

parameters:

name	value
Bushes:	Universal rubber bushing 2 × O to 10 mm and 8 × o to 5 mm
degree of coverage:	IP 54 according to ČSN EN 60529
degree of self-extinguishing:	v0 according to UL 94
impact protection degree:	k 10 according to ČSN EN 50102
Color:	Light gray RAL 7035
Material-switchboard:	PC + ABS
Material-Bushings:	ENSOFT
Dimensions (mm):	136 × 136 × 46
Weight (kg):	0.4

Parameters

Optical parameters
IP protection	IP54
Material	Plastic
Capacity of optical connectors / welds	12
Equipment	Cassette
Max. Number of Fibres	12
Mounting on/in	Mat, Wall
Physical parameters
Design	Outdoor
