Optical cable WIREX J/A-DQ(BN)H WBF, 4vl., 09/125, LSOH-FR, AE02, CLT, Eca, KDP

storage in cable troughs

Storage in cable protectors

backbone routes of the network

side wiring

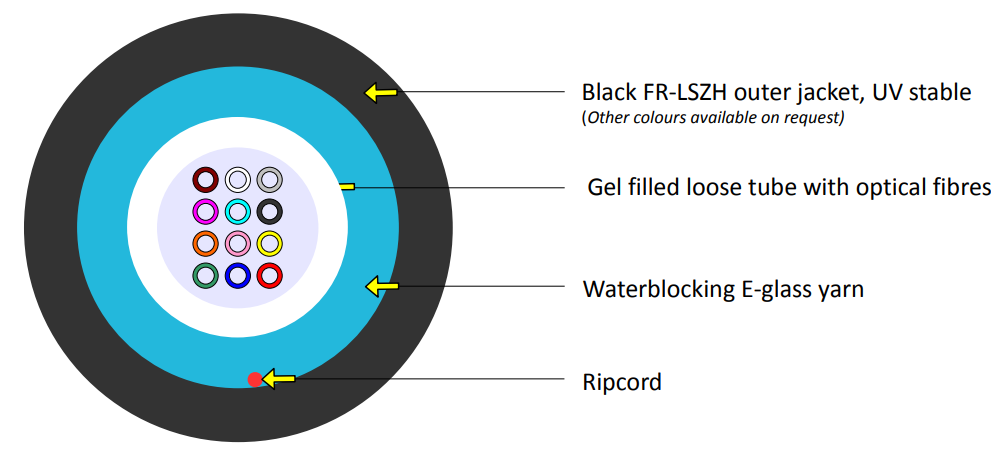

This universal optical cable can be used in both indoor and outdoor environments. It is designed primarily for storing in cable troughs or pulling into installation pipes. Cable diameter 5.4mm. It has standard rodent protection. The optical fiber is guided in a gel filled with a tube. The operating temperature of-30 ° C to +70 ° C. The life of the cable is at least 30 years old.

parameters:

name	value
number of threads:	4
cable diameter (mm):	5,4
Weight:	35 kg/km
Tensile load (n):	1100/TD>
Installation temperature (° C):	15 to 50
Operating temperature (° C):	-20 to 70
storage temperature (° C):	-20 to 70
