Optical cable, Blown Cable, 12v, 9/125, LFP, 2.8mm, CLT

Name: Optical cable, Blown Cable, 12v, 9/125, LFP, 2.8mm, CLT
Brand: OEM
SKU: 29611
Price: 0.64 EUR
Availability: InStock

Optical cable suitable for outdoor use with central tube, PA sheath, 12 fibers, singelmode, (SM), 9/125, Z006, 2.8mm, KDP, fiber OFS AllwaveMore information

Producer

OEM

Code

00029469

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

0.53 EUR exc. VAT

VAT

21%

Your price inc. VAT

0.64 EUR inc. VAT

Ask for a better price

Description

Outdoor use

for blowing into HPDE tubes

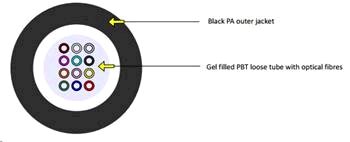

fiber G.657A led by a gel filled with a tube with a polyamide sheath

cable life: at least 30 years

G.657-Defines optical fibers that produce lower attenuation levels caused by bending. The minimum bend radius was reduced to 15-5 mm (depending on the version). The G.657A fiber is compatible with G.652 fiber, G.657.B do not provide 100# i6per# compatibility with other fibers, although they have unique mechanical properties suitable for the most demanding devices.

parameters:

name	value
number of threads:	12
cable diameter (mm):	2,8
Weight:	8 kg/km
Short-term tensile load (n):	70/TD>
Long-term tensile load (n):	-
Installation temperature (° C):	-5 to 50
Operating temperature (° C):	-20 to 70
storage temperature (° C):	-20 to 70
