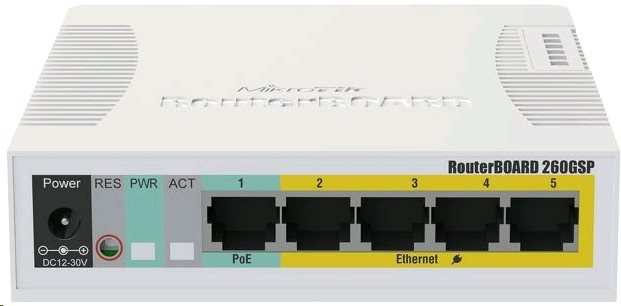

MikroTik RouterBOARD RB260GSP, 5-port gigabit switch, SFP port, PoE

RB260GSP is adjustable, fully gigabit 5-port switch with one SFP slot !!! Everything is powered by Atheros Switch Chip. It also includes a specially designed operating system for fast switching and a large range of settings-SWOS.
So SWOS can be fully set from your web browser. This gives you all the basic functions for a controllable switch (switch), plus another: allows you to manage port-to-port forwarding, MAC addresses, configuration, Mirror Traffic, Mac-and IP and IP settings.

This model differs from the previous RB260GS options to power additional devices on the 2-5 passive PoE with a maximum current of 500 mA/port.



parameters:

name	value
No fan:	Yes
CPU:	TAIFATECH TF470
Gigabit LAN:	Yes-all ports
depth[mm]:	138
LAN:	(5) 10/100/1000 Mbps
Max. Energy consumption[W]:	6
Power:	8 .. 30 in DC
Power via POE:	8 .. 30 in DC
operating system:	swos
Number of CPU cores:	1
Number of LAN ports:	5
Number of SFP ports:	1
POE:	input and output
poe budget[W]:	60
version:	Desktop
operating temperature[° C]:	-25 to 65
chassis:	Plastic
width[mm]:	113
Power type:	DC connector
Power type:	POE
default IP address:	192.168.88.1
default and password:	admin/-
height[mm]:	28
Web Management:	Yes

The current version of the SWOS operating system can be found on the official website of the manufacturer: http://www.mikrotik.com/
