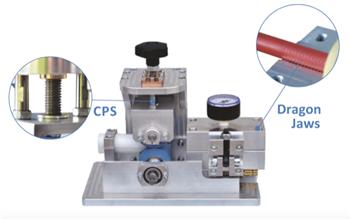

Used: Fiber blowing machine BDJ MINI

The Blue Dragon Jet MINI is designed to build the last mile of FTTH networks. Its simplicity and compact design make it very easy to use. Using interchangeable collets and input reducers, it is designed for blowing cables of 0.8-9.8 mm into microtubes from 5 mm to 16 mm. When using special accessories it is possible to blow cables from 0.8 mm !! An optional cable length gauge can be supplied as an option.

Specifications:

Construction: Anodized Al alloy, stainless steel

Compressed air supply: connection: 3/4"bayonet coupling, up to 15 bar Dimensions: 260 x 150 x 230 mm

Weight without accessories: 4 kg

Driven by Drill

Maximum blowing speed 110 m/min

Diameter of optical cable: 0.8 mm-9.8 mm

Minimum microtube diameter: 5 mm

Maximum microtube diameter: 16 mm

Designed to remove unfinished cable

Accessories:

Collet reduction kit for 5, 7, 10, 12, 14 and 16 mm microtubes

Set of reduction cable for optic cables, diameters 0.8-9.8 mm

Set of sealing cuffs in cassette of 1-1-10 mm

Set of removable drive wheels

IMBUS keys

Delivered in protective aluminum case
