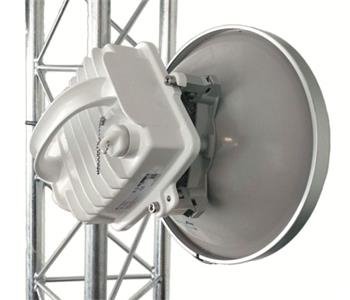

RACOM RAy3 17 GHz, incl. antennas, 713 Mbps (1000/540 Mbps)

A professional high-speed joint developed and manufactured with an emphasis on quality and durability.More information

Producer

RACOM

Code

00035058

Warranty

60 Month

Availability

in stock

Availability in stores

Order

Your price exc. VAT

3 707.22 EUR exc. VAT

VAT

21%

Your price inc. VAT

4 485.73 EUR inc. VAT

Ask for a better price

RACOM RAy3 17 GHz, incl. antennas, 713 Mbps (1000/540 Mbps) - components

	Count	Name	Code	Description	Availability
in stock	2pcs.	RACOM RAy3 17 ODU 00035059	00035059		in stock
in stock	2pcs.	Parabolic antenna 40cm 17/18 GHz Ra 00018429	00018429	Parabolic antenna for microwave joints in bands 17 and 18 GHz. Precise design meeting ETSI EN 302-217-4-2 V1.5.1 in class 3. The antenna is in a set with a holder that allows easy installation on the mast. First, just install the holder with approximately ...	in stock
in stock	2pcs.	Racom License 1000 Mbps 00034371	00034371		in stock

Ask for a better price

Description

Third Generation RAy Microwave Links takes the performance of one of the most widespread, free-band links in the Czech Republic even further.

Promo Video:

RAy3 has an optimal mix of features that allow it to be deployed in backbone networks , in solar panel installations , in recent miles with installations on low rigidity masts etc.

RAy3 is optimized for maximum spectrum utilization and a large number of mast connections. It can effectively use the full bandwidth with the ability to asymmetrically set up channels 3.5 to 112 MHz. The minimum space between channel edges is 18 MHz , its width and location are sw adjustable. In addition, complies with the licensing band standard.

QPSK to 4096 QAM modulations with advanced ACM are available. In the 112 MHz channel, the link reaches 1 Gbps FDD. Due to legislative limitations of the 17 GHz band to 200 MHz, it is possible to use a maximum symmetrical capacity of 713/713 Mbit / s or asymmetrically 1000/540 Mbit / s

Continuing with previous generations, we have excellent reliability , exceptional immunity interference and simple management including the mobile phone application.

Other innovations such as Synchronous Ethernet, precision time protocol , and AES256 encryption allow RAy3 connections to be deployed on even the most advanced networks.

Benefits:

17 GHz, FREE band

Up to 1000 Mbps capacity

Frequency asymmetry

Optical and metallic interfaces

Flexible DC and PoE power supply with 20-60 V range

IPTV optimization

MTU 10239 B

Universal unit for both sides of the joint

Exceptional sensitivity

High immunity to interference

Low power consumption

Full Outdoor

ACM, ATPC, FEC

An extra 5-year warranty is provided on RACOM equipment. For other manufacturers' equipment (dishes, power supplies, etc.) according to the conditions individual producers.

Advanced Diagnostics and Management

Reliability:

Made exclusively from components for industrial heavy-duty use

Each piece tested in a climatic chamber

High surge and electrostatic charge protection

Certified Temperature Range -30 ° C to + 55 ° C

Key Features:

Same HW for both sides of the joint, Universal unit for both sides of the joint

Transfer rate up to 1000 Mbps

Widely Configurable Duplex Spacing (from 18 MHz)

Asymmetric Channel Setup

5 Year Warranty

Additional parameters:

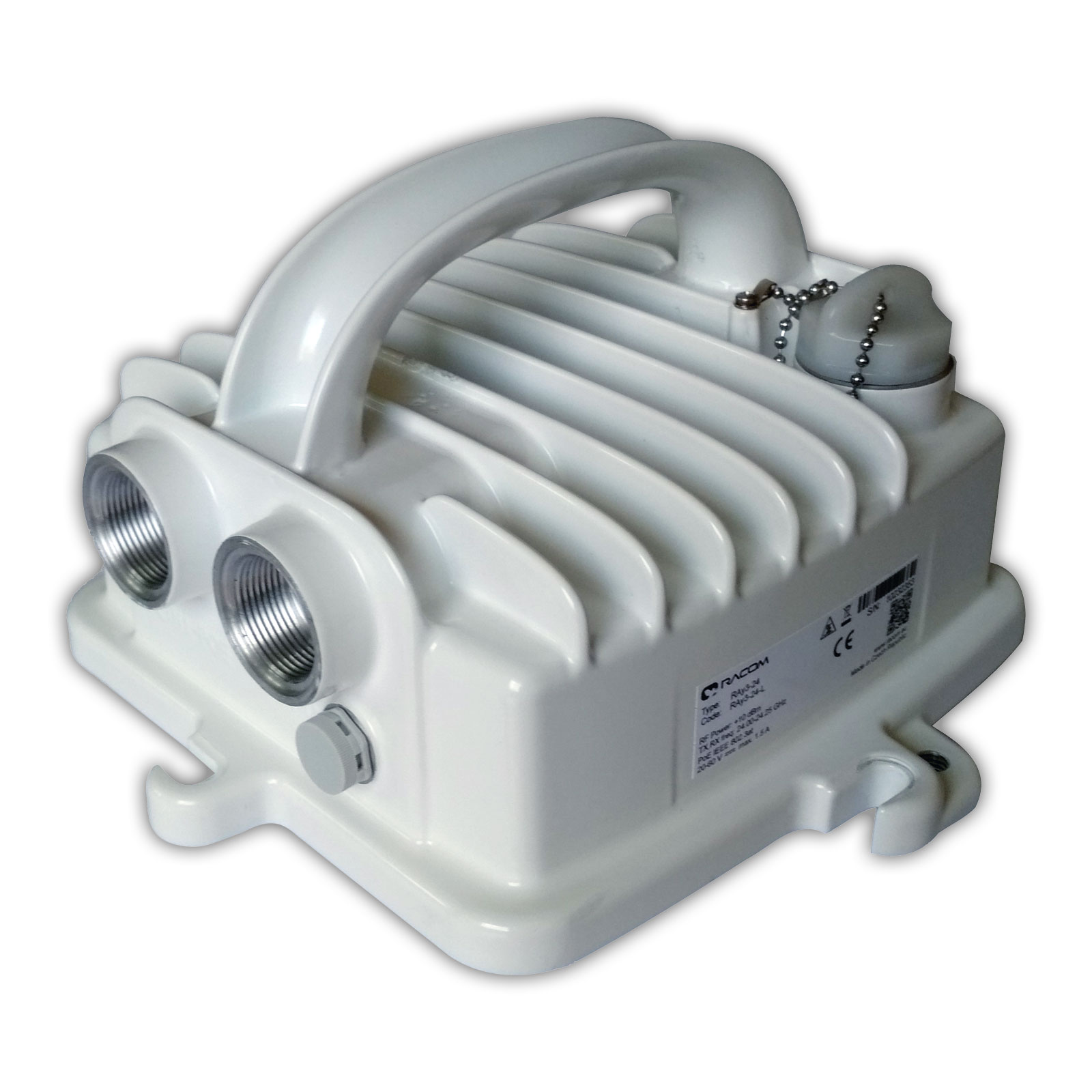

Full outdoor unit with easy installation

Compact dimensions (245 x 245 x 160 mm) and low weight (2.6 kg)

Low power consumption: 22 W

Output power -30 dBm to +10 dBm

The wide range of regulation allows the use of antennas up to 120 cm, while maintaining the maximum allowed EIRP.

1x optical port, 1x metallic port, configurable as 2 independent user ports, or 1x user and 1x management port

USB: Management via ETH / USB adapter, Firmware upgrade via flashdisk

Direct mounting of the unit on antennas of different manufacturers. Flexible waveguide as a universal solution.

Diagnostics:

Web interface

Temperature, power, RSS, SNR, BER and data rate are monitored and their history is available in text and graph form

SNMP including generation of TRAPs when the set limits are exceeded

Built-in spectrum analyzer for free channel search

Constellation diagram of the received signal

Security:

Configuration over HTTPS, SSH

Parameters

Ethernet parameters
ACM - hitless	Yes
ATPC	Yes
Band	Free
Concept	Full-Outdoor
Consumption	22
FEC	Yes
Channel Width	až 112
Jumbo frameworks	Yes
Max. guaranteed capacity (Mbit/s)	1000
Max. transmitting power (dBm)	10
Metallic port	Yes
Modulation	až 4096 QAM
Optical port	Yes
Port E1	No
Possibility of closing SLA	Yes
Possibility to rent equipment	Yes
Power Supply	DC, PoE
SNMP	Yes
XPIC	No
Port speed (Gbps)	1 Gbps
Physical parameters
Depth (mm)	245
Height (mm)	160
Weight (kg)	2.6
Width (mm)	245
