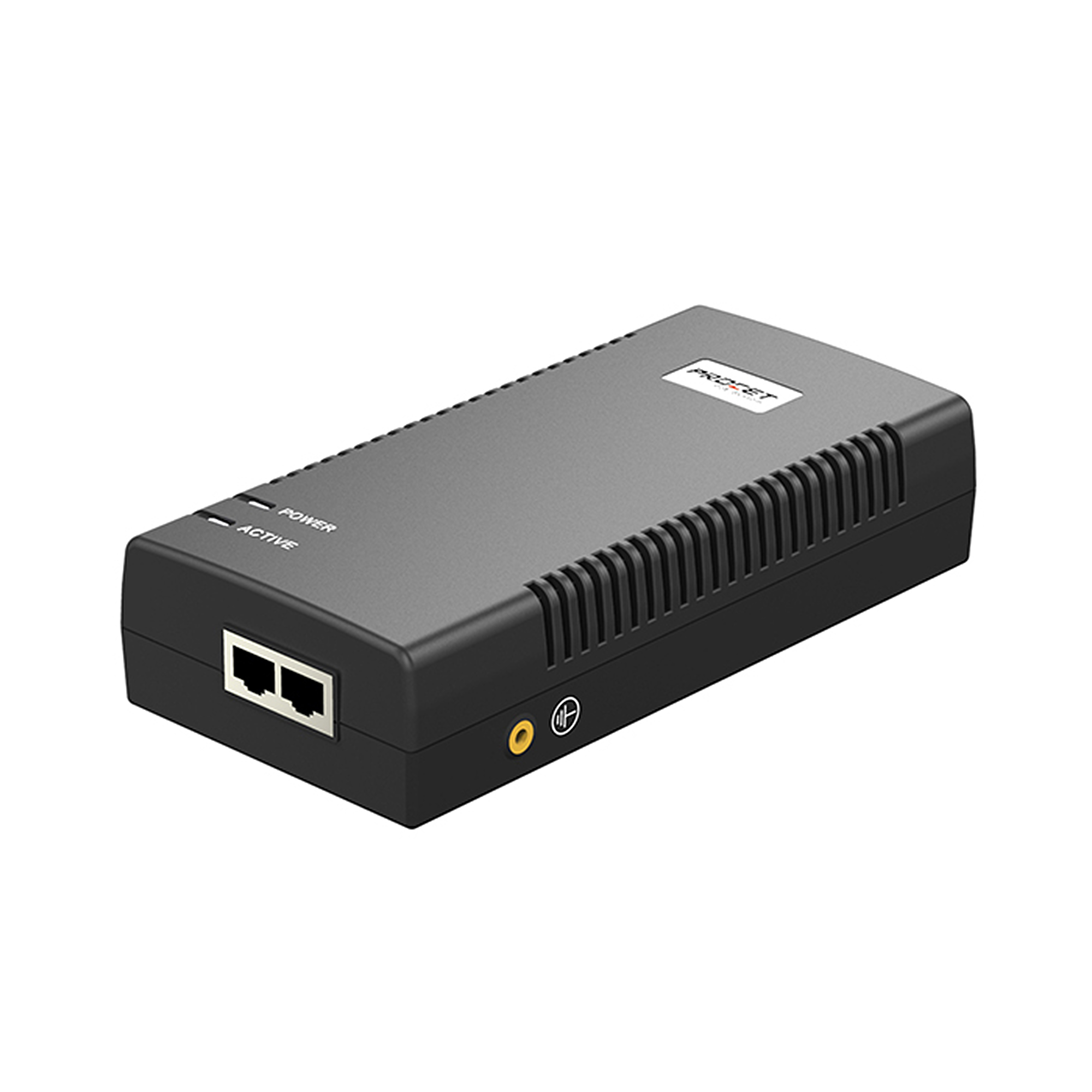

PROCET PT-PSE106GBRN-10, 10Gbps PoE source, 55V/1.6A. 90W

PoE adapter Procet PT-PSE106GBRN-10 is an industrial solution for powering the most demanding network elements using passive PoE with power consumption of up to 90 W (power on all wires) and integrated surge protectors up to 6 kV . In addition, this adapter supports 1 / 2.5 / 5 / 10G Ethernet , making it suitable for powering high-throughput backbone components or, for example, motor-operated PTZ cameras.

Thanks to the compact size, it is not a problem to simply place the device on a mounting plate in the cabinet or directly on the wall. The package includes a connecting cable with an EU terminal.

Features:

• Ethernet standard: 1 / 2.5 / 5 / 10GbE NBASE-T
• PoE standard: passive PoE - 4/5 (+), 7/8 (-), 3/6 (+), 1/2 (-)
• Output voltage: 55 V
• Output current: 1.1 A
• Input voltage: 100-240 VAC / 50-60 Hz
• AC input protection: 1.5 kA (8 / 20us) / 3 kV (1.2 / 50us)
• Temperature range: 0 to +40 ° C
• Dimensions: 146 x 66 x 34 mm
• Weight: 255 g
