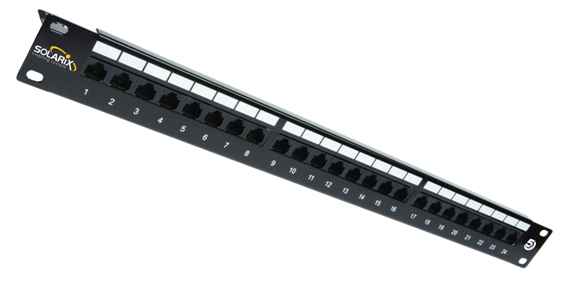

Patch panel 19", CAT5e, STP, 24x RJ45, 1U

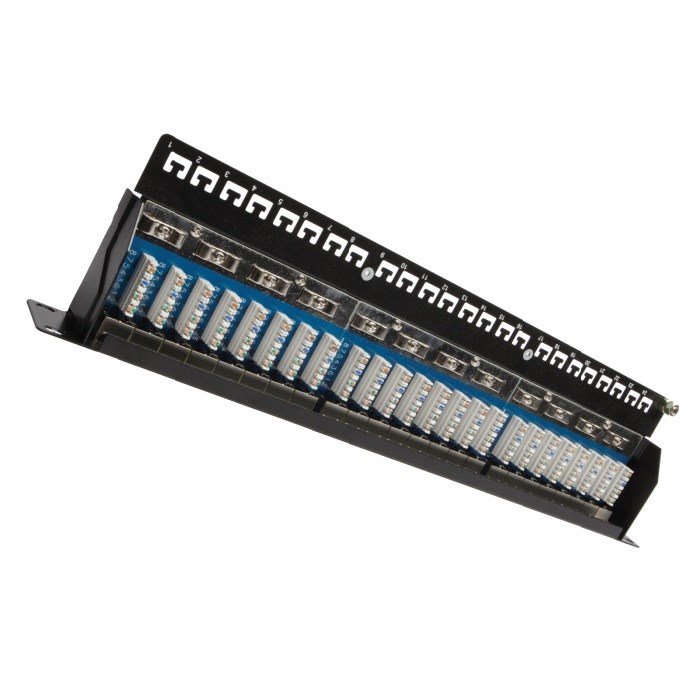

The terminal block is labeled both T568A and T568b, using the color and numeric designation of individual wires directly on the printed circuit board (the odd number always indicates a semi-color wire and even fully color).
The body of the panel includes an alignment bar, which is used for a clear arrangement and fixed data cable attachment as well as the grounding conductor, which reliably connects the shielding of the cabling to the grounds in the switchboard.
Shielded patch panels Solarix-Cat5e meet and also exceed the requirements for category 5E components defined in TIA/EIA standards 568, EN 50173 and ISO 11801.
The panels are firm, reliable and provide a long life. The standard patch panel color is black. Size in the data switchboard is 1U.

parameters: > >

name	value
Category:	Cat.5e
Number of ports:	24
pitch:	19"
Shielding:	Yes
height (mm):	44
width (mm):	484
depth (mm):	108
Color:	black
Supreme Supported Protocol:	1000BASET
contact coverage:	50 µ gold and 100 µ nickel
terminal:	dual 110/KRONE 8P8C
wire size:	AWG 26-22
Operating temperature (° C):	-10 to 60
Max. Operating humidity:	93#i6per#
