Optical cable coupler, 24x SC for 48 welds

FIBER Arsenal, for 48 (up to 96) fibers (can be put on top of each other). This is a passive element that provides excellent fiber protection
The clutch passed the tests in extreme conditions. It will stand out for the worst temperature conditions, extreme moisture, or the environment with a more frequent occurrence of vibration.

Thanks to the user-friendly design, work with this clutch is absolutely frameless.

Suitable for indoor and outdoor FTTH cables 2 * 3 mm

user-friendly, easy operation and installation

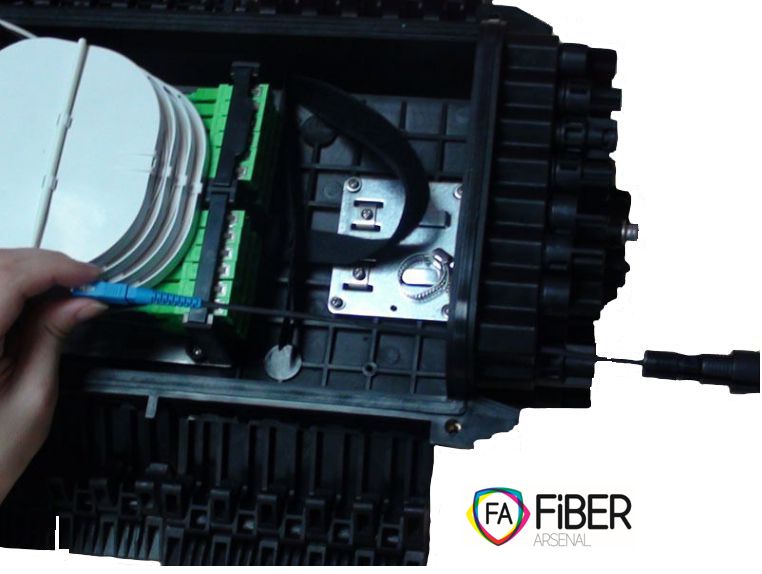

Removable panel with connectors

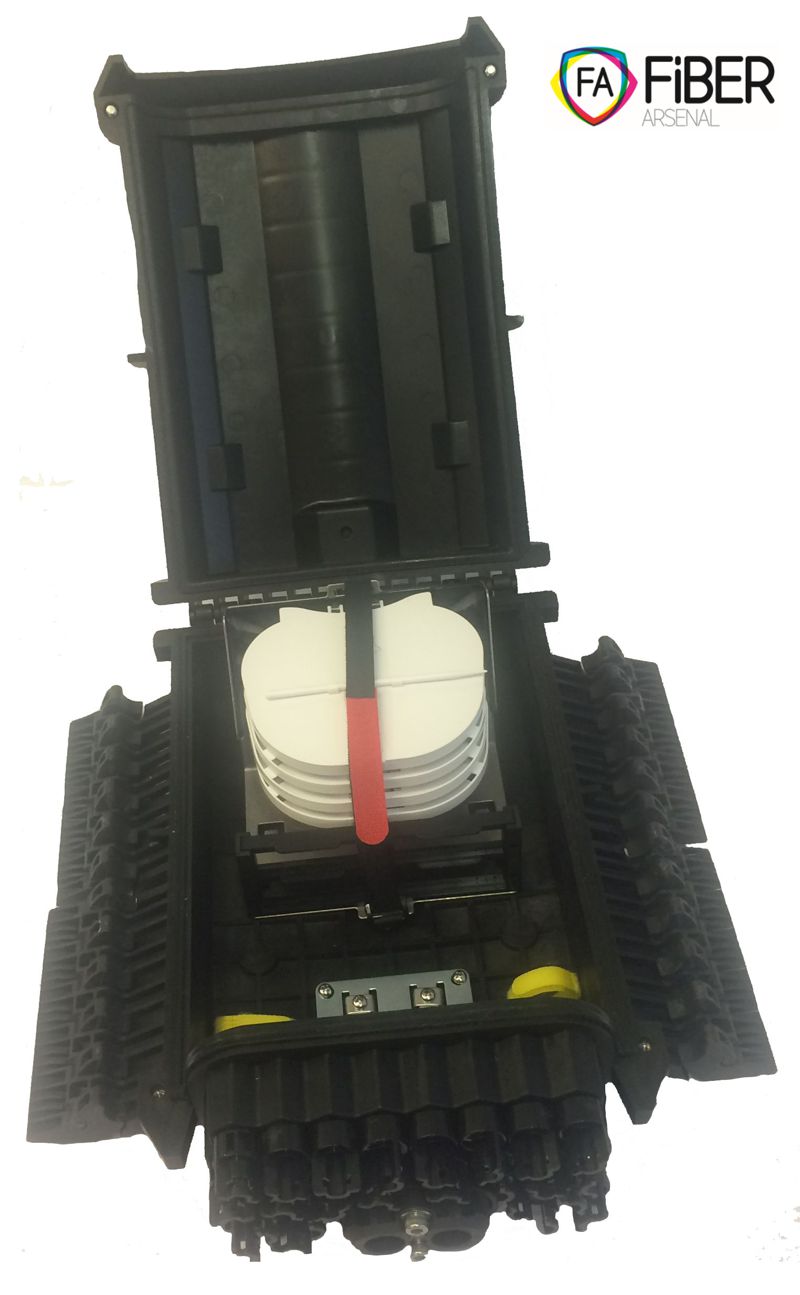

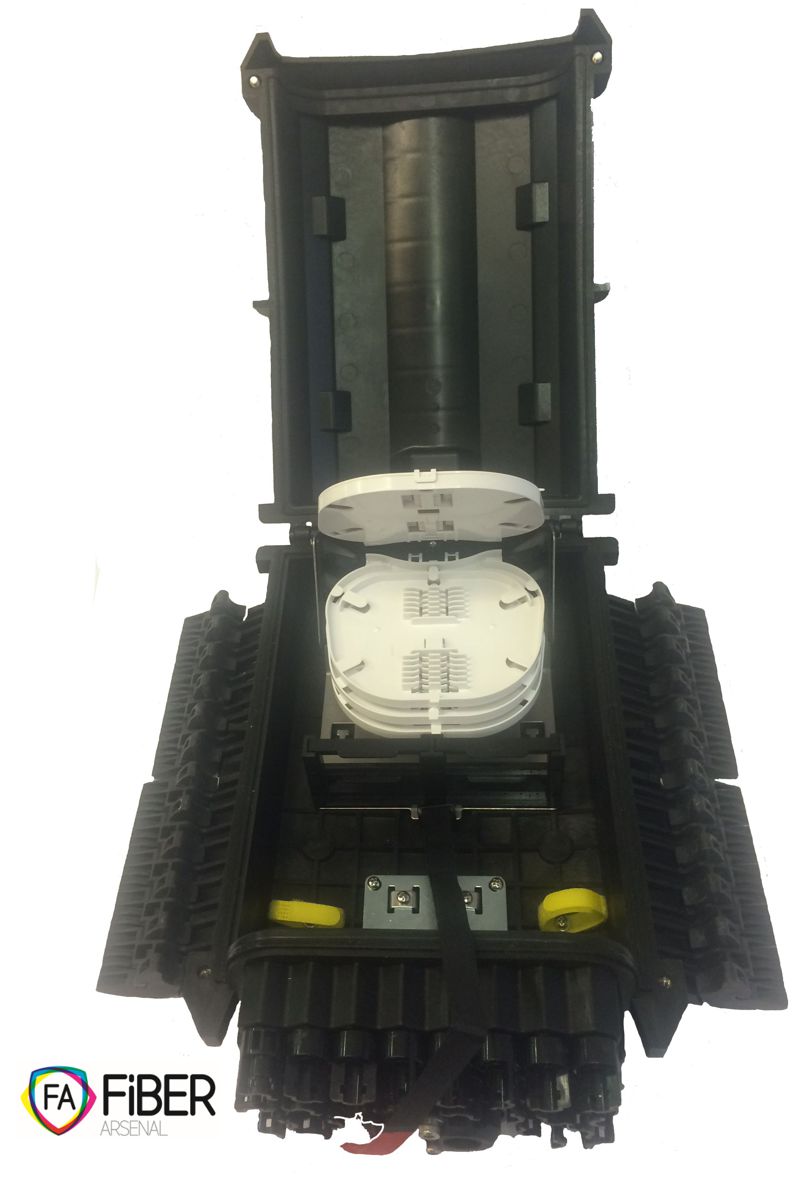

removable cassette with a comb

mounting into the ground, on the wall, column

parameters:

name	value
Number of ports/couplings:	24x SC
Number of cable ports/cable diameter:	1 /10 to 17.5mm
Number of cable ports/cable diameter:	24/2*3mm FTTH DROP CABLE, 2*5mm Figure 8 FTTH Drop Cable, 6mm Cable (Optional)
Dimensions (mm):	385 x 245 x 130
Material:	Modified Polymer Plastic
Color:	black
Max. Capacity:	48 fibers (4 optical cartridges, each for 12 fibers/welds
usable splitter:	1x 1*16 PLC splitter, or 2x 1*8 PLC splitters
degree of coverage:	IP68
Impact Test:	ik10
Tensile force (n):	100
MIDSPAN ENTRY:	yes
storage for microstats/microBel:	Yes
Weight (g):	4000

Package content:

IMBUS +"Key" to remove the plugs for cables

plugs

48x weld protection

insulating tape

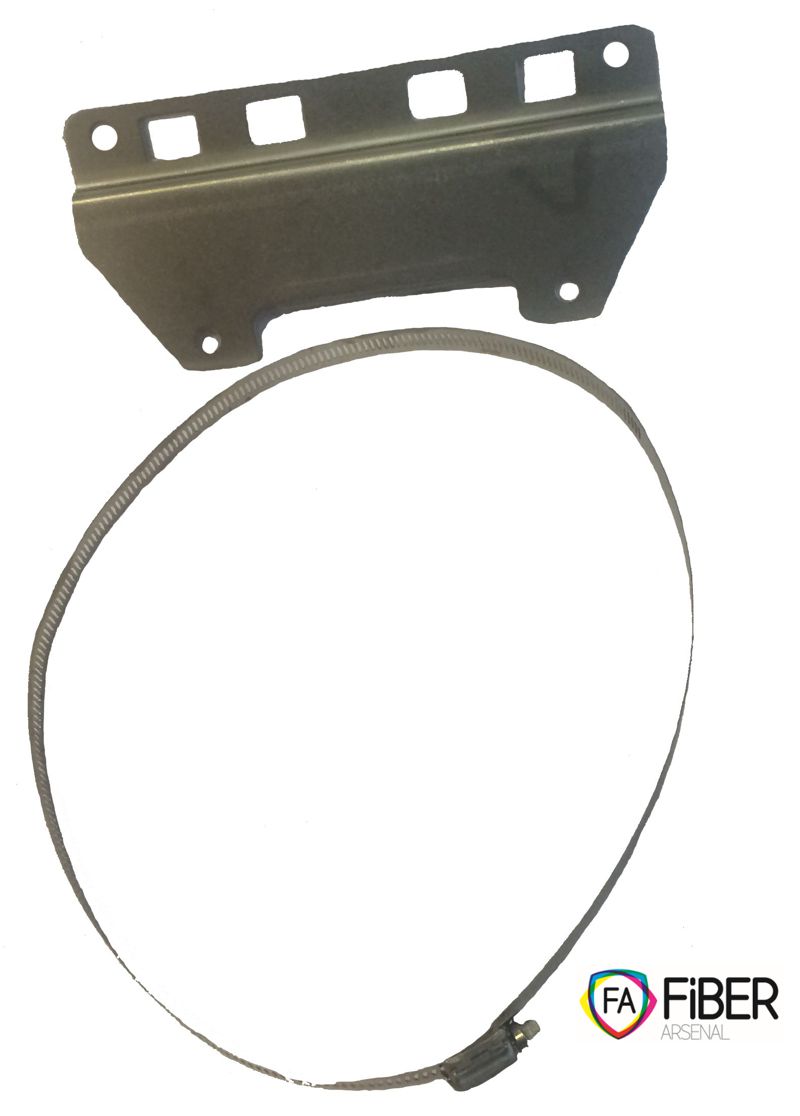

hold on column + bolts

English instructions
