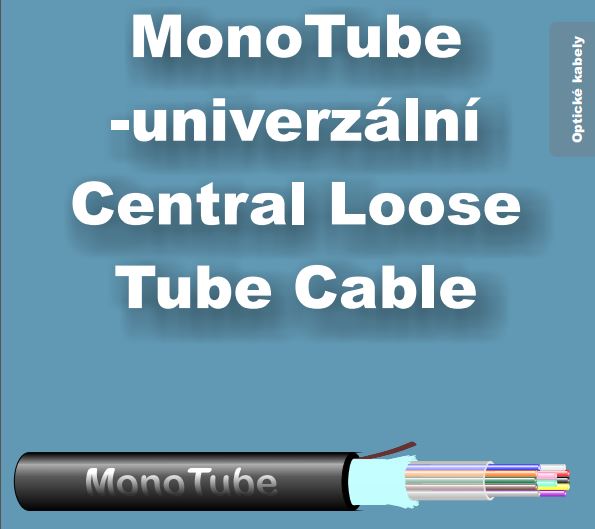

MonoTube 12 in. AW FLEX, FRNC jacket, OD 6.5 mm

Universal internal/external monotube optical fiber cable, with a central structure, gel-filled tube and the tensile elements of glass fibers, 12 fibers. The cable is available with a jacket in PE and LS0H ; for customer connections in přísupovách...More information

Producer

OFS a Furukawa Company

Code

00030636

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

0.77 EUR exc. VAT

VAT

21%

Your price inc. VAT

0.93 EUR inc. VAT

Ask for a better price

Description

Universal internal/outer optical cable Monotube, construction with central, gel filled with tube and tensile elements made of glass fibers, 12 fibers. The cable is available with PE and LS0H tires

for customer connection in incters, power supply small above-ground points in the net, ...

Increased resistance to flame spread

Installation on routes in the troughs

G.657-Defines optical fibers that produce lower attenuation levels caused by bending. The minimum bend radius was reduced to 15-5 mm (depending on the version). The G.657A fiber is compatible with G.652 fiber, G.657.B do not provide 100# i6per# compatibility with other fibers, although they have unique mechanical properties suitable for the most demanding devices.

parameters:

name	value
number of threads:	12
cable diameter (mm):	6.5
Weight:	35 kg/km
Short-term tensile load (n):	1000/TD>
Long-term tensile load (n):	400
Installation temperature (° C):	-5 to 50
Operating temperature (° C):	-25 to 60
storage temperature (° C):	-25 to 75
