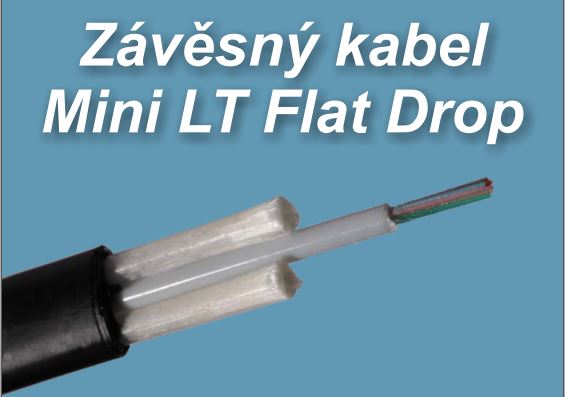

Mini LT Flat Drop, 12 v. AW FLEX

Hanging cable Mini LT Flat Drop 6 fibers. ; suspension, cantilever ; for customer connections in přísupovách networks, supplying small aboveground points in the network, PON, ... ; Installation are used koty flat cable suspension ; The opti...More information

Producer

OFS a Furukawa Company

Code

00030624

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

0.83 EUR exc. VAT

VAT

21%

Your price inc. VAT

1.00 EUR inc. VAT

Ask for a better price

Description

Hanging cable mini lt flat drop 6 fibers.

hanging, self-supporting

for customer connection in incters, power supply small above-ground points in the net, ...

for installation are used Koty flat hanging cable

Possibility to store in the ground, pull into the chill

G.657-Defines optical fibers that produce lower attenuation levels caused by bending. The minimum bend radius was reduced to 15-5 mm (depending on the version). The G.657A fiber is compatible with G.652 fiber, G.657.B do not provide 100# i6per# compatibility with other fibers, although they have unique mechanical properties suitable for the most demanding devices.

parameters:

name	value
number of threads:	12
cable diameter (mm):	4.3 x 7.8
Weight:	32 kg/km
Short-term tensile load (n):	1335/TD>
Long-term tensile load (n):	667
Installation temperature (° C):	-40 to 70
Operating temperature (° C):	-30 to 60
storage temperature (° C):	-40 to 75
