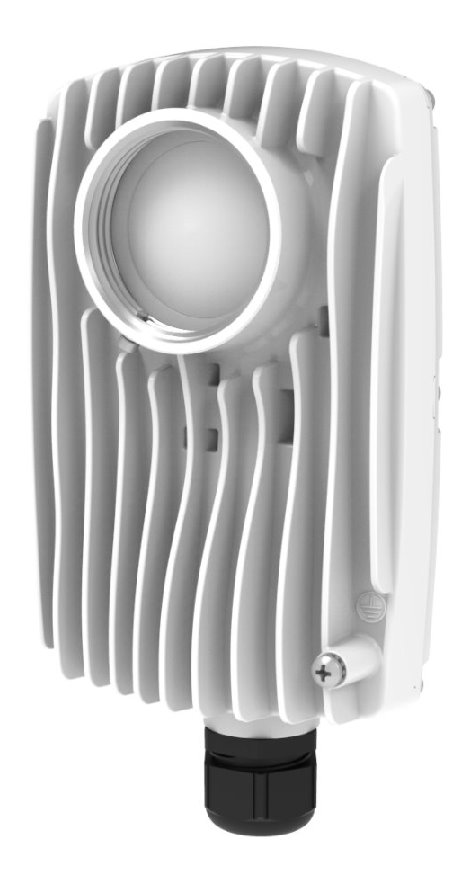

Mimosa C6x-LE

Name: Mimosa C6x-LE
Brand: MIMOSA NETWORKS
SKU: 79678
Price: 107.65 EUR
Availability: InStock

Mimosa C6x-LE is an outdoor client and Point-to-Point unit in a robust aluminum chassis with high resistance to environmental interference, IP67 protection with an integrated 2x2 MIMO antenna with a gain of 8 dBi.More information

Producer

MIMOSA NETWORKS

Part No.

100-00111-01(C6x LE)

Code

00075680

Warranty

12 Month

Availability

Availability in stores

Order

Regular selling price exc. VAT

89.47 EUR

The discount is calculated against the lowest regular selling price for which the product was sold in the last 30 days before the start of the discount event.

Your price exc. VAT

88.97 EUR exc. VAT

VAT

21%

Your price inc. VAT

107.65 EUR inc. VAT

Ask for a better price

Description

Mimosa C6x-LE is an outdoor client and Point-to-Point unit in a robust aluminum chassis with high resistance to environmental interference, IP67 protection with an integrated antenna with gain 8 dBi, the possibility of mounting a directional antenna from a wide range (12 to 25 dBi), supporting Wi-Fi 6E OFDMA technology (built on 802.11ax) including older Wi-Fi 5/6 standards. The unit has a 2x2 MIMO radio part and is able to reach up to 1 Gbps in PTP mode, up to 750 Mbps in PtMP mode, and is also able to work in the frequency band 5150-6425 MHz. To connect to the network, the C6x unit has one Gigabit Ethernet port with support for passive PoE 24 V.

Among other things, the unit offers a high output power of 27 dBm. The maximum consumption of the unit is 20 W. The unit offers wireless WiFi Interop protocol.
Wi-Fi 6e OFDMA Support -C6x reduces the impact of in-band interference across the used channel with significantly smaller parts of the used spectrum (2 MHz) instead of older OFDM solutions where any interference affected the entire channel width.

Package Contents:

Device
2x metal tightening tape

Parameters

Ethernet parameters
Antenna gain (dBi)	8
Connectors	Twist-on-port (Mimosa)
Consumption	20
Encryption	802.1X, AES
IP protection	IP67
IPv6 support	Yes
Počet vestavěných antén	4
PoE Type	Input
Power Supply	PoE
Properties	OFDMA, MU-MIMO
Gigabit LAN	yes
LAN port speed	1 Gbps
Physical parameters
Depth (mm)	67
Design	Outdoor
Height (mm)	178
Operating Temperature	-40° až +55 °C
Weight (kg)	0.7
Width (mm)	113
Wireless parameters
Antenna type	Removable
Frequency	5 GHz
MIMO (5 GHz)	2x2
Operating mode	Client, Bridge
Vysílací výkon 5 GHz [dBm]	27
WiFi Standards	Mimosa SRS, WiFi Interop
WiFi transfer rate - 5 GHz [Mbps]:	2402

All parameters Less parameters
