Mimosa A6 Access Point

Name: Mimosa A6 Access Point
Brand: MIMOSA NETWORKS
SKU: 74720
Price: 1761.36 EUR
Availability: InStock

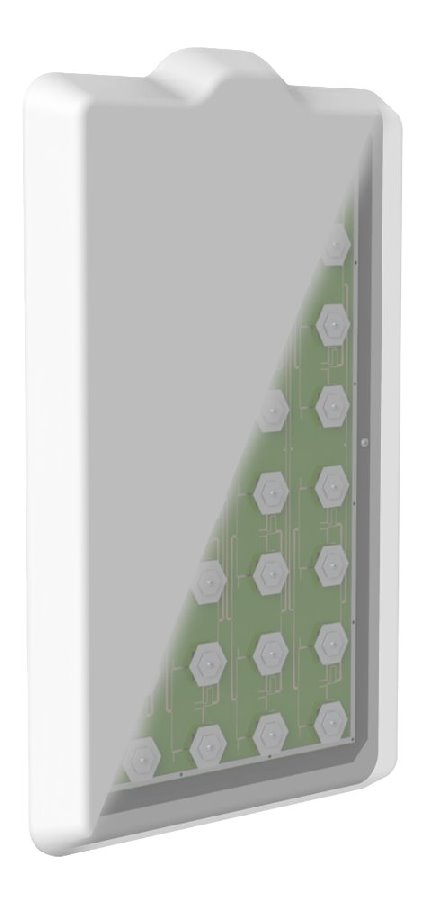

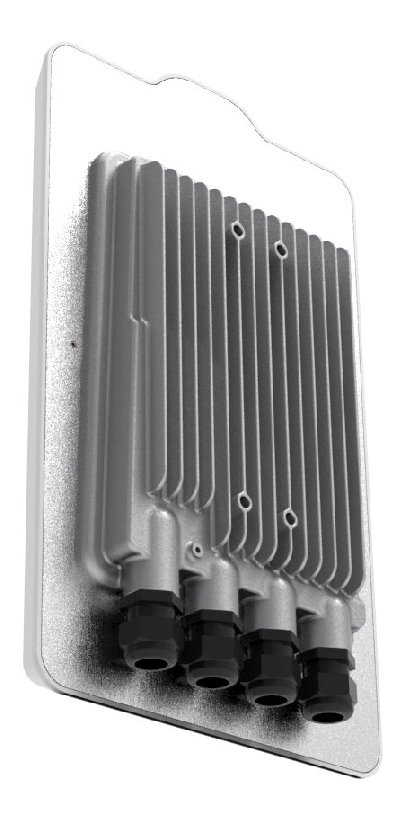

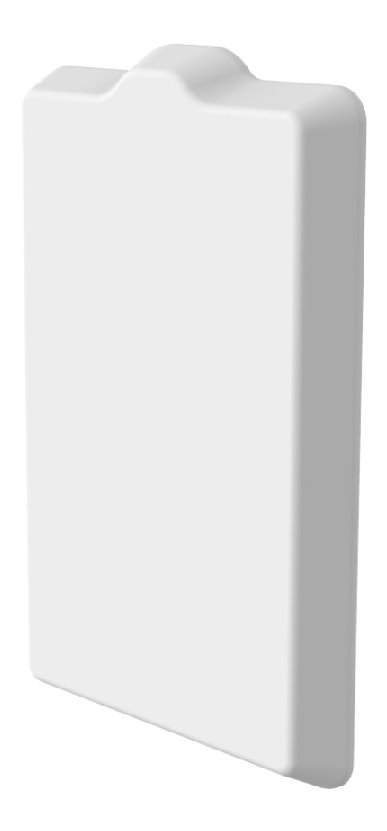

Mimosa A6 is an outdoor Access Point in a robust aluminum chassis with high resistance to ambient interference, covering IP67 with integrated 8x8 outside an antenna with a profit of 16 dBI.More information

Producer

MIMOSA NETWORKS

Part No.

100-00113(A6)

Code

00075040

Warranty

12 Month

Availability

Availability in stores

Order

Your price exc. VAT

1 455.67 EUR exc. VAT

VAT

21%

Your price inc. VAT

1 761.36 EUR inc. VAT

Ask for a better price

Description

Mimosa A6 is outdoor Access point in a robust aluminum chassis with high resistance to surrounding interference, IP67 and with a built-in antenna with a 16 dBI radiation angle beamforming . The unit has the radio part 8x8 outside with a 9608 Mb/s modulation speed at 160 MHz , maximum 24 dBm power and can work on the 5150-6425 MHz . To connect to the network, the unit has one gigabit Ethernet port with passive PoE 48 to 56 V and 2x SFP+ slots with a speed of up to 10 Gbps. The unit offers wireless wifi interop .
Support Wi-Fi 6e ofdma (based on 802.11AX)-reduces A6 impact of interference inside the band across the used channel with significantly smaller parts of the spectrum used instead The maximum consumption is 40 W . Supports Standard encryption WPA3 .

Package content:

device

Parameters

Ethernet parameters
Antenna gain (dBi)	16
Beam angle horizontal (°)	90
Beam angle vertical (°)	7
Consumption	40
Encryption	WPA3
Frequency range	5150 - 6425 MHz
Front rear ratio (dB)	30
IP protection	IP67
IPv6 support	Yes
Management	Yes
Modulation	1024 QAM
Počet vestavěných antén	8
PoE Type	Input
Power Supply	PoE
Properties	Beamforming, OFDMA, GPS modul, MU-MIMO
Sensitivity (dBm)	-56
Gigabit LAN	yes
LAN port speed	1 Gbps
Number of SFP+ (10G) ports	2
Optical parameters
Optické rozhraní	10 Gbps
Physical parameters
Depth (mm)	75
Design	Outdoor
Height (mm)	490
Operating Temperature	-40° až +55 °C
Weight (kg)	3.95
Width (mm)	295
Wireless parameters
Antenna type	Vestavěná
Frequency	5 GHz, 6 GHz
MIMO (5 GHz)	8x8
Operating mode	AP
Vysílací výkon 5 GHz [dBm]	24
WiFi Standards	WiFi Interop, Mimosa SRS
WiFi transfer rate - 5 GHz [Mbps]:	9608
