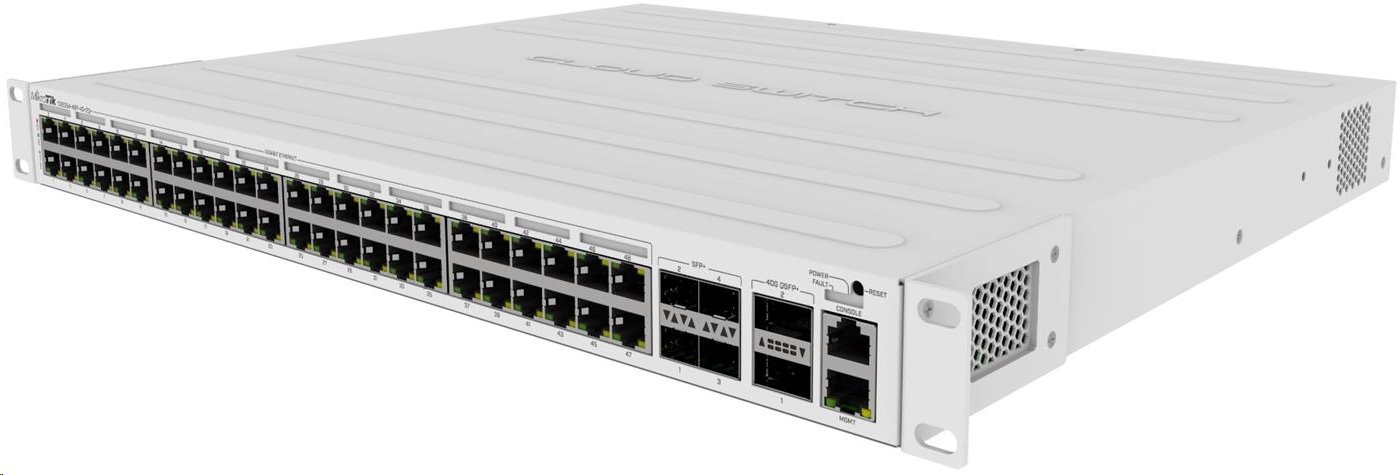

MikroTik CRS354-48P-4S+2Q+RM, 2x QSFP+, 4x SFP+, 48x LAN (PoE)

Mikrotik Cloud Router Switch CRS354-48P-4S+2Q+RM is an outflowed switch with 2x QSFP+, 4x SFP+, 48x gigabit ethernets and one 10/100Mbps metallic port designed only for management. The Switch provides a total permeability of 168 Gbps and a 336 GBPS switching capacity with a forwarding speed of 235 MPPS for most common packets.

Switch has an integrated 800W power supply capable of supplying the total power 700W . Each metallic port supports PoE 802.3AF/AT or passive 26 and 53V DC with power limit set at 30W at 52V or 26W at 26V.

parameters:

name	value
version:	Rackmount
Number"U" positions:	1
fans:	(3) 40 x 40 mm
chassis:	metal
buttons:	Reset
operating temperature[° C]:	-20 to 60
depth[mm]:	297
width[mm]:	443
height[mm]:	44
RAM[MB]:	64
CPU:	QCA9531
CPU Frequency[MHz]:	650
Number of CPU cores:	1
internal storage size[MB]:	16
Management LAN:	(1) 10/100Mbps
serial port:	rj45
LAN speed:	(48) 10/100/1000mbps
Gigabit LAN:	Yes
Optical interface:	(4) 10Gbps + (2) 40Gbps
Redundant power:	No
Power type:	from network (230V)
POE types:	POE-OUT (only)
Supported Poe-Out Standards:	802.3AF, 802.3AT, passive 24V, passive 48V
poe budget[W]:	750
Max. Energy consumption[W]:	800
Power supply via connector/terminal:	230V AC
Packet transfer speed[MPPS]:	235
Switch speed[Gbps]:	336
Web Management:	Yes
Function:	VLAN, QOS, L3
operating system:	routeros-l5

Package content:

• device
• power cable
• mounts up to 19"rack
• cable management
