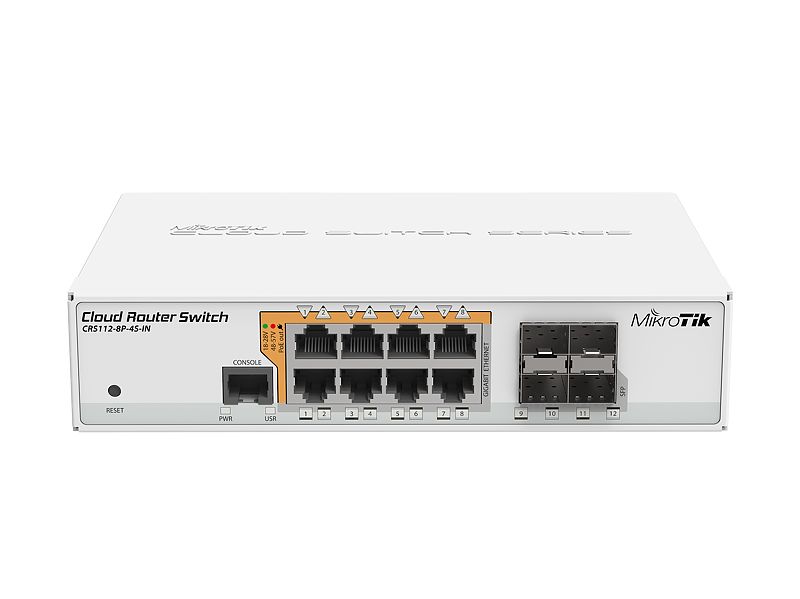

MikroTik Cloud Router Switch CRS112-8P-4S-IN, 8x GLAN with PoE, 4x SFP

CRS112-8P-4S-in is an eight-port gigabit Poe router/switch that offers different Poe-out power options. In addition to the passive Poe, it also offers 802.3af/at standards on all eight ports. In addition to metallic ports, you can use the 4 Optical SFP ports to connect your device to the speed at up to 1 Gbps ..





Power Pool Out

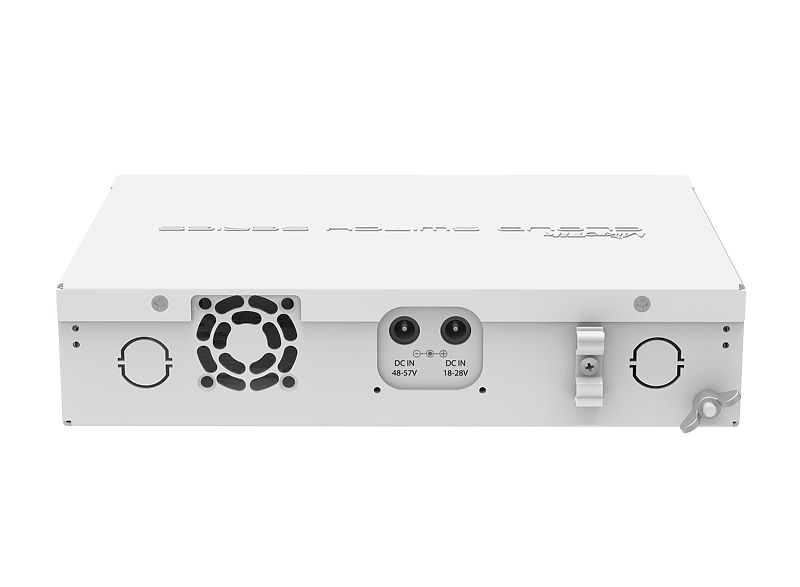

CRS112-8P-4S-in has 2 power connectors on its back. The first 18-28 V connector is used to connect the enclosed DC adapter, and it is possible to supply other devices connected to the POE ports using the CRS using a passive POE. Optionally, you can buy a power supply with a voltage in the range of 48-57 V, then the CRS112 allows you to power via PoE ports of devices supporting standards 802.3af/at.

For output power supply 24 V, it is sufficient to connect the included power adapter. If necessary, a 48 V power supply is required to buy a source, such as the GM-4820. If you need to connect a mix of devices that require both types of power, you need to have both power supply connected simultaneously!


parameters:

name	value
version:	Desktop, Rackmount
fans:	(1) 40 x 40 mm
chassis:	metal
depth (mm):	143
width (mm):	200
height (mm):	40
CPU:	QCA8511
RAM (MB):	128
SIZE SIZE (MB):	16
Number of LAN ports:	8
LAN speed:	10/100/1000 Mbps
Gigabit LAN:	Yes
serial port:	RJ 45
Number of SFP/SFP+ Ports:	4 x 1000 Mbps
Max. Energy Consumption (W):	10
Power type:	DC connector
POE types:	Output
Supported PoE Standards:	802.3AF, 802.3AT, Passive 24 V
Number of Poe Out Ports:	8
poe budget[W]:	95
Power supply via connector/terminal:	18 .. 57 in DC
Web Management:	Yes
Function:	VLAN, QOS, L3
operating system:	ROUTEROS-L5

Package content:

device

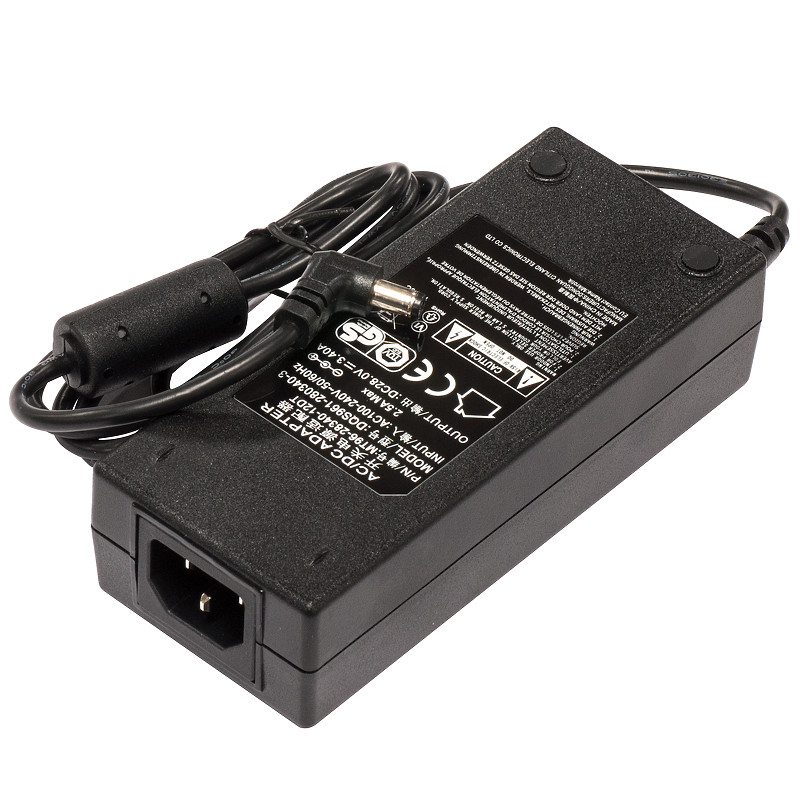

power adapter 28 V/3.4 and

power cable

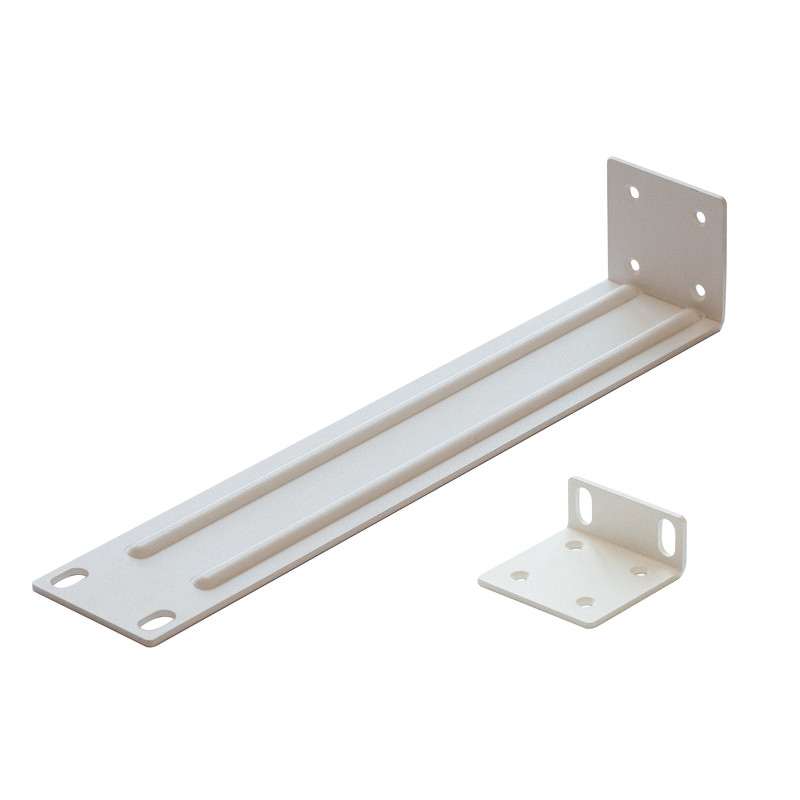

mounts up to 19"rack

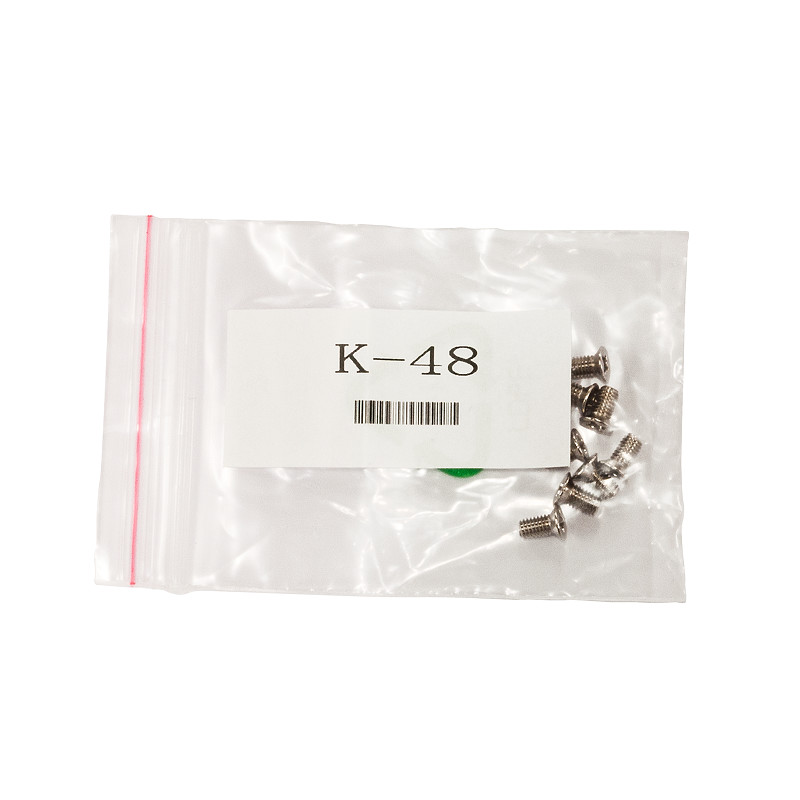

screws
