MiDia CT, 12 vl. AW FLEX, OD 4.1 mm, PA orange casing

Optical micro-CT MIDI central element 12 threads, about 4.1 mm ; for blowing into the micro-low friction extra term ; G.657A-defines the optical fibers that produce lower levels of attenuation caused by bending. The minimum bend radius was redu...More information

Producer

OFS a Furukawa Company

Code

00030612

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

0.82 EUR exc. VAT

VAT

21%

Your price inc. VAT

1.00 EUR inc. VAT

Ask for a better price

Description

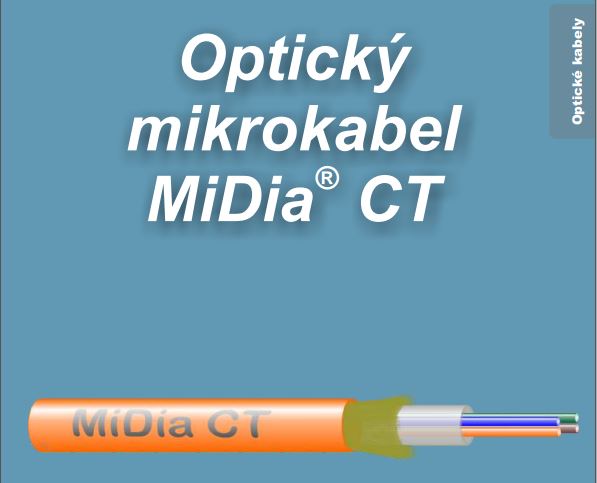

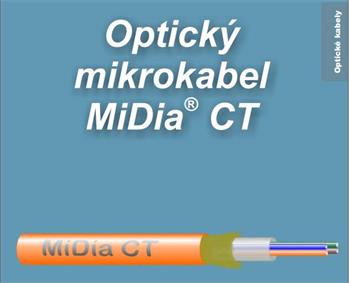

Optical microBel Midia CT with central element, 12 fibers, 4.1 mm

for blowing into microtubes-low spawn hunter

G.657-Defines optical fibers that produce lower attenuation levels caused by bending. The minimum bend radius was reduced to 15-5 mm (depending on the version). The G.657A fiber is compatible with G.652 fiber, G.657.B do not provide 100# i6per# compatibility with other fibers, although they have unique mechanical properties suitable for the most demanding devices.

parameters:

name	value
number of threads:	12
cable diameter (mm):	3,9-4,1
Weight:	15 kg/km
Short-term tensile load (n):	200/TD>
Long-term tensile load (n):	-/TD>
Installation temperature (° C):	-5 to 40
Operating temperature (° C):	-20 to 60
storage temperature (° C):	-20 to 60
