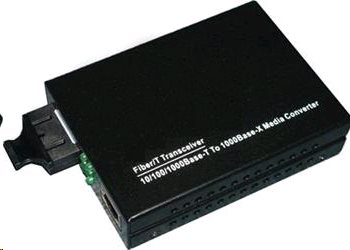

Media converter ZCOMAX AK, 1.25 Gbps, SM, SC dupl., 20km, 1310nm

The main purpose of media converters is in the use of optical fibers as a transfer medium between two locations where metallic cabling can no longer be used, whether for ensuring the environment by EM radiation or for long distance.
Media converters ZCOMAX from the Chinese primary producer are basic converters with passing functionality and unrivaled the lowest price on the market.
The converters use the popular Taiwan chipset IP113x LF

Built-in lightningist (only variants with external DC power), max. 4KV

Metallic port is self-adaptive, supports both 100Mbps and 1Gbps Ethernet.

parameters:

name	value
Format:	stand-alone
converter type:
Transfer type:	2 threads
Connector type:	SC DUPLEX
Type of thread:	SM
Better speed:	1.25 Gbps
Transmission protocol:	1000 GBPS
standards:	IEEE 802.3U/IEEE 802.3Z/IEEE 802.3x
reach (km):	20
Wavele length TX:	1310
Wave length RX:	1310
Power:	Adapter 230V AC/9V DC
Operating temperature range (° C):	0 to 50
Management:	Unmanageable
Connector type-metallic:	rj45
RAM (KB):	128
Support 9K Jumbo Packets:	Yes
Transmitter Optical Power (DBM):	-9 to-3
Reciever Sensitivity (DBM):	-24
Weight (g):	260
Dimensions (mm):	94 x 71 x 26
