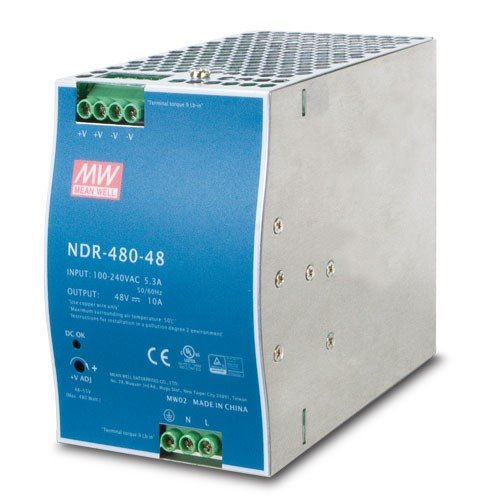

Mean Well, NDR-480-48, Switching Power Supply 48V/10A, 480W

Switching power supply brand Mean Well, AC/DC with stabilized output voltage 48 V, maximum power of 480 W and high efficiency. Mechanical design on DIN rail. The input voltage is switchable (115V AC and 230V AC). Maximum power: 480 W; Exit...More information

Producer

MEAN WELL

Code

00072719

Availability

Availability in stores

Order

Your price exc. VAT

102.23 EUR exc. VAT

VAT

21%

Your price inc. VAT

123.70 EUR inc. VAT

Ask for a better price

Description

Mean Well, AC/DC power supply with stabilized output voltage 48V , current 10a , maximum power 480W and high efficiency. The input voltage is switchable (90 ... 264V AC, 127 ... 370V DC). The source has an overvoltage, short circuit, overload and overheating. Mechanical design on din bar.

Parameters

Physical parameters
DC Output Voltage (V)	48
Input Voltage (V)	230
Ochrana proti přepětí	Ano
Ochrana proti zkratu	Ano
Output Current (A)	10
Output Power (W)	480
Over temperature Protection	Ano
Depth (mm)	125
Design	DIN rail
Efficiency (%)	92.5
Height (mm)	128
Operating Temperature	-20° až +70°C
Weight (kg)	1.5
Width (mm)	85.5
Powering
Typ zdroje	Spínaný
