LT MiDia GX NG 48 in. AW+, 4x12 in./pipe, OD 5.2 mm (6 el.), HDPE jacket

Name: LT MiDia GX NG 48 in. AW+, 4x12 in./pipe, OD 5.2 mm (6 el.), HDPE jacket
Brand: OFS a Furukawa Company
SKU: 50571
Price: 1.57 EUR
Availability: OutOfStock

The MIDIA GX NG PE optical microBel is an innovated version of MIDIA GX PE cables with a reduced outer diameter and cable weight to improve cable parameters.More information

Producer

OFS a Furukawa Company

Code

00070692

Warranty

24 Month

Availability

Availability in stores

Order

Your price exc. VAT

1.30 EUR exc. VAT

VAT

21%

Your price inc. VAT

1.57 EUR inc. VAT

Ask for a better price

Description

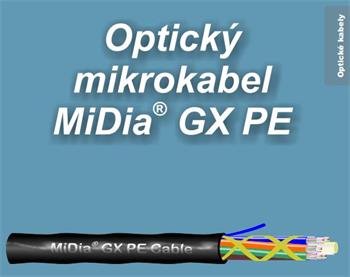

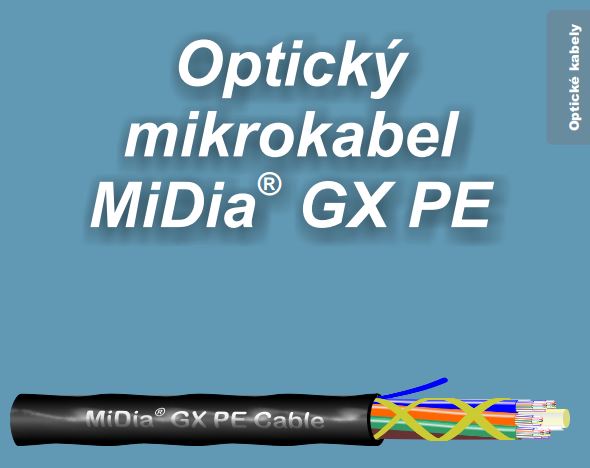

The MIDIA GX NG PE optical microBel is an innovated version of MIDIA GX PE cables with reduced outer diameter and cable weight to improve cable parameters. Tubes with fibers are bottled along the dielectric central tensile member and fixed by aramid fibers, the dry cable core contains Vodoblocating elements. Below the polyethylene sheath of the black color is located by the steam cable. For blowing into microtubes.

parameters:

name	value
number of threads:	48
cable diameter (mm):	5,2
Weight:	25 kg/km
Short-term tensile load (n):	600
Long-term tensile load (n):	-
Installation temperature (° C):	-5 to 40
Operating temperature (° C):	-30 to 70
storage temperature (° C):	-30 to 70
