Huawei AC6508, WLAN controller, official CZ distribution

The Huawei AC6508 is a specialized WLAN controller for small and medium-sized enterprises that can manage up to 256 WiFi access points Huawei while containing a 10-sports switch, simply connecting the wire and wireless part of the network. The Huawei AC6508 is characterized by high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei access points 802.11AX, 802.11ac and 802.11n, the AC6508 can be used to manage small to medium wifi networks.

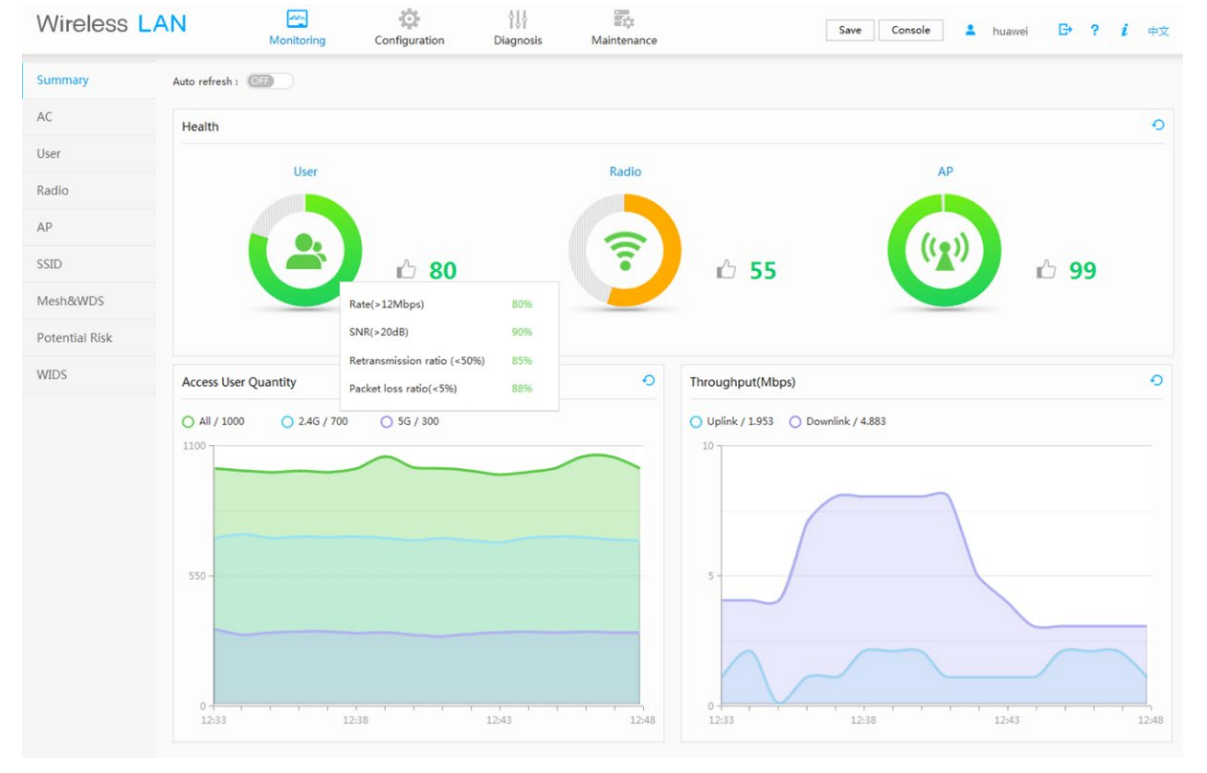

The AC6508 is controlled by a built-in intuitive web interface that is easy to configure and provides comprehensive and intelligent diagnostics . The central page contains real-time summary and statistics, KPIs are displayed in clear graphs, including the performance of individual users, access points and other components, allowing administrators to extract useful information from a huge amount of monitored data.
Mass configuration of the device based on AP group profiles simplifies the configuration procedure and increases efficiency. The web system supports simple AP configuration and automatically selects typical parameters, which makes it possible to configure all parameters in advance, simplifying the configuration procedure and speeding up deployment.

properties:

• Manage up to 256 access points at once (License must be purchased separately)
• Possibility of management via L2 or L3 (eg AP are deployed in a private network and WLAN controller is deployed in a public network)

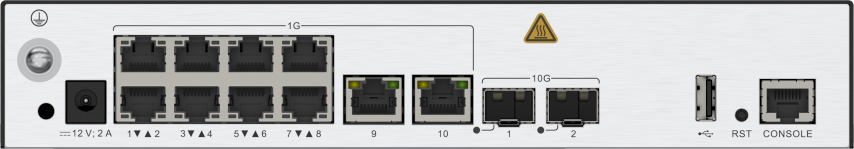

• 2x 10GE optical interface and 10x 1g RJ45 interface with a total switching capacity of 10 Gbit/s.
• Support for balance of individual access points
• Intelligent DFA Technology: Dynamic Assignment Algorithm (DFA) is used to automatically detect disturbing neighboring channels and common channels
• Intelligent Conflict Optimization Technology: Dynamic Enhanced Distributed Access to Channel (EDCA)
• Built-in Captive Portal/AAA Server Options Verification 802.1x
• Inline, BYPASS, BRIDGE and MESH
modes
• Built-in application identification server-supports identification of applications on a layer of 4 to 7 and can identify more than 6000 applications, including P2P download applications such as Lync, FaceTime, Youtube and Facebook.
• Support for application-based principles, including operation blocking, restrictions and adjustment of priorities.
• Support 1+1 HSB and Backup N+1
