Fusion splicer INNO A3

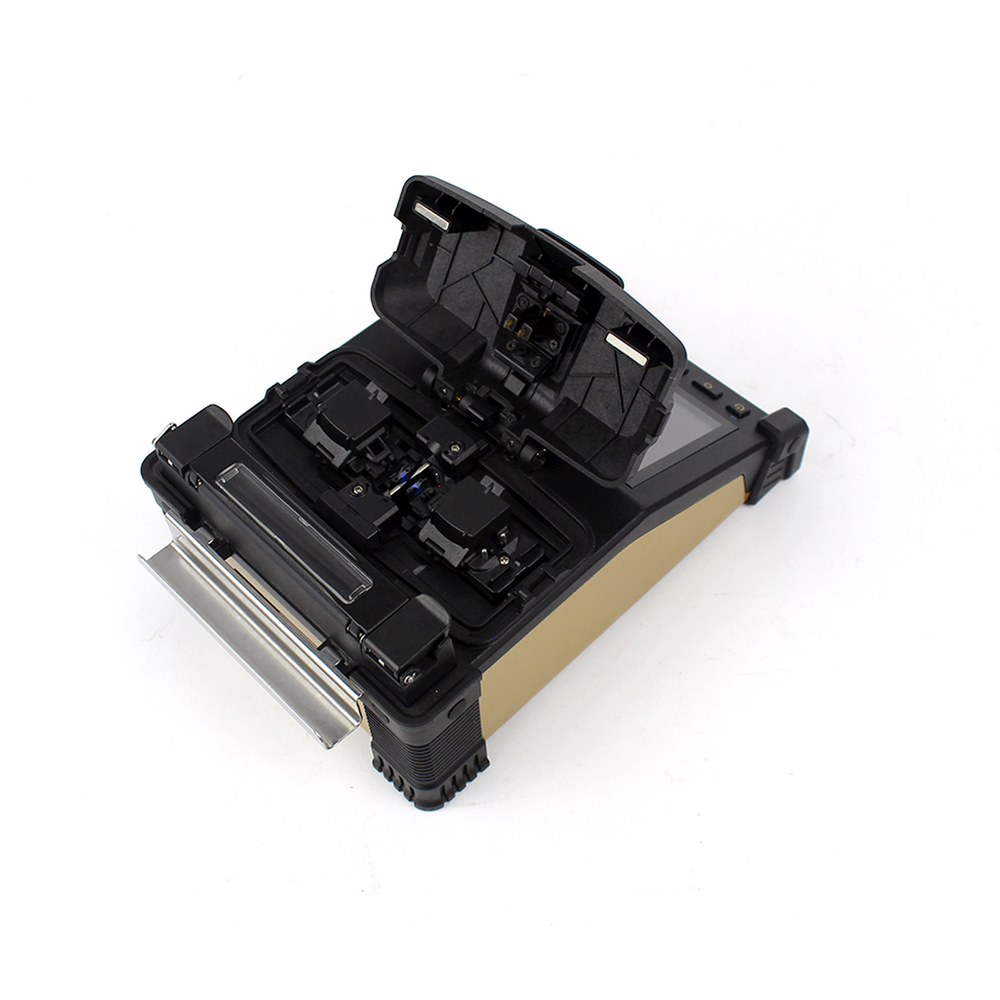

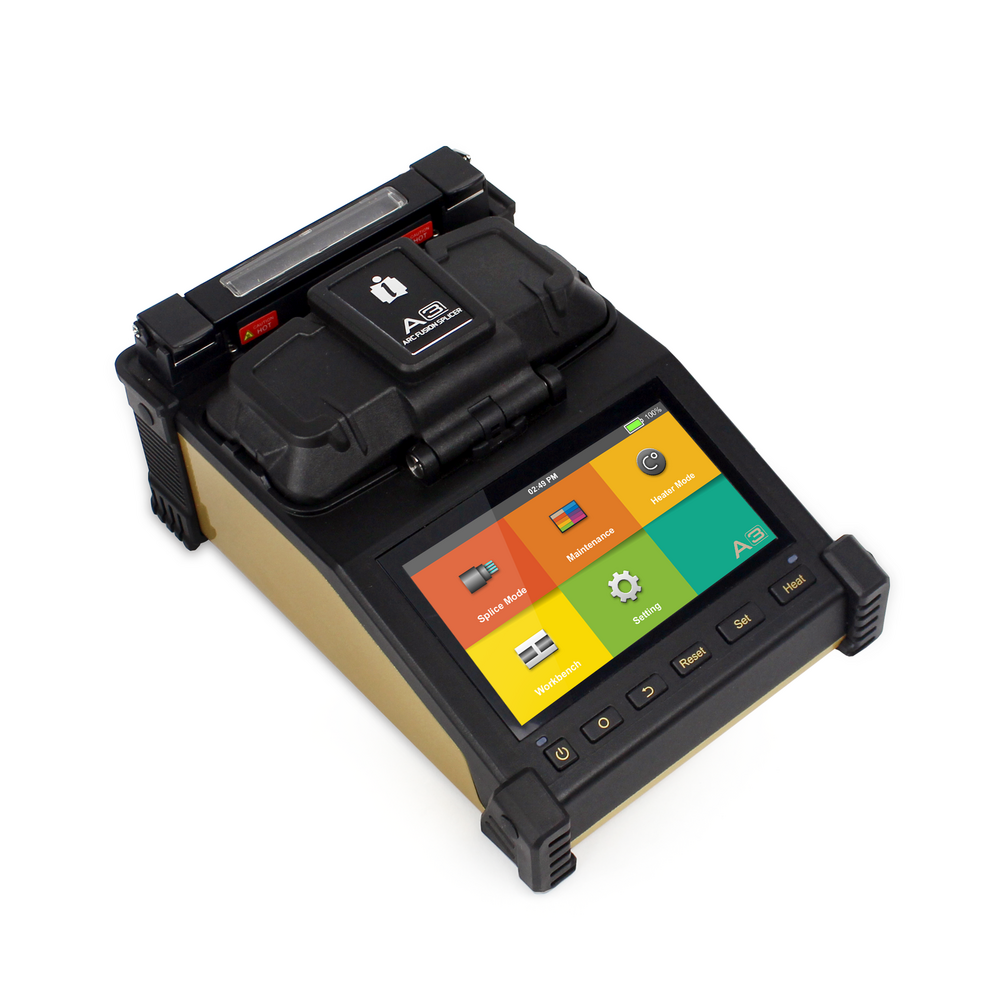

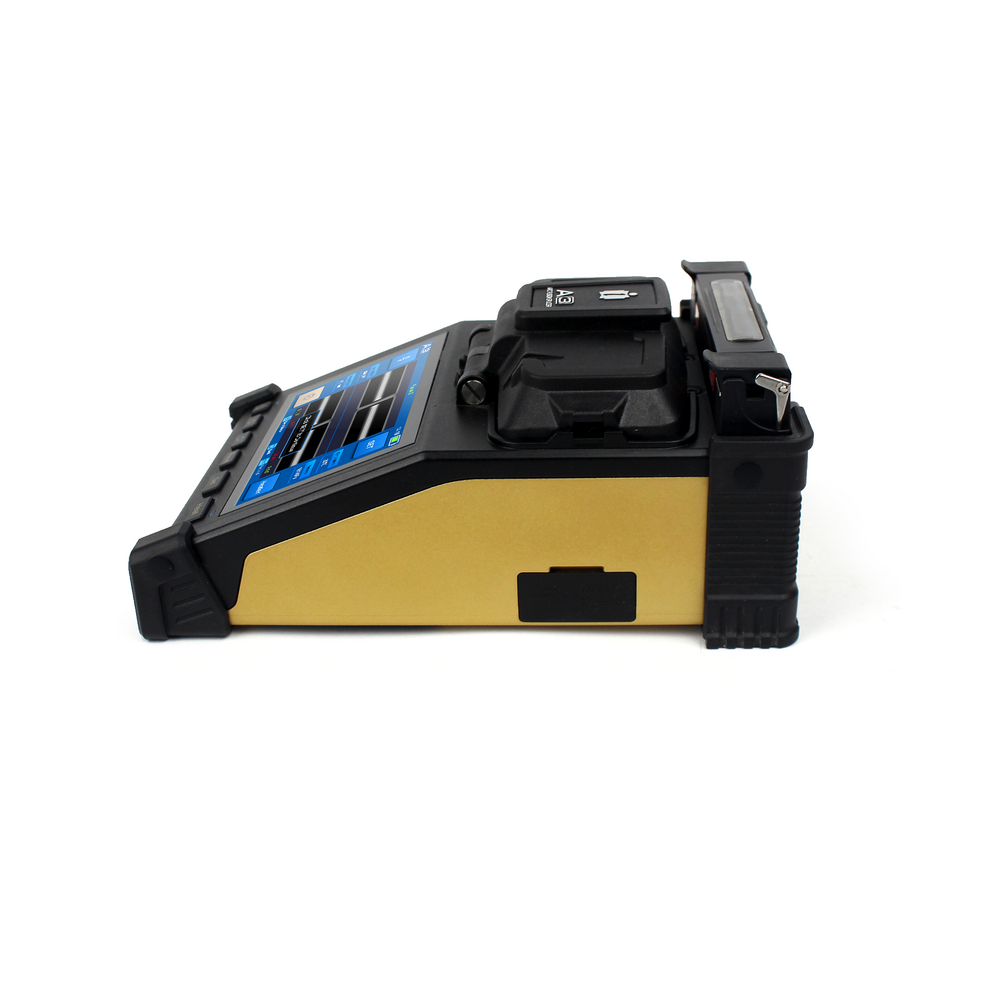

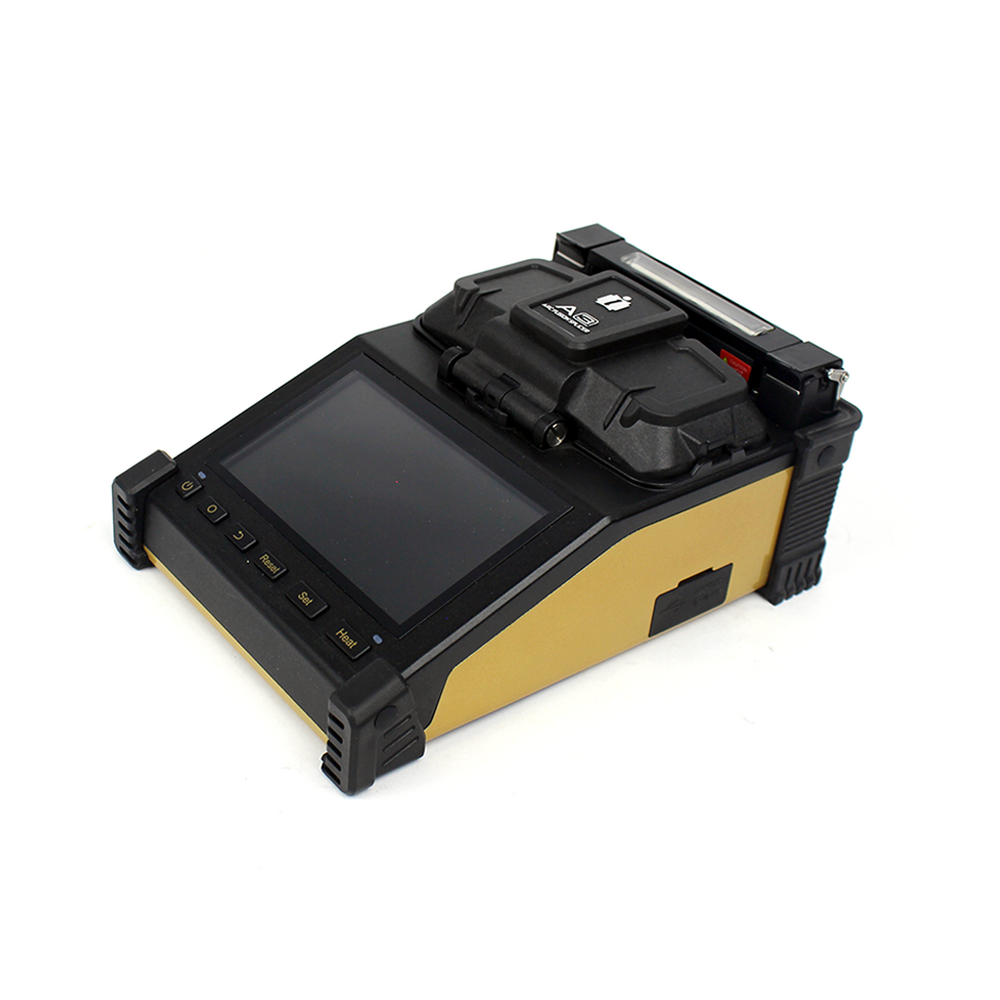

The INNO A3 fusion splicer with active clad-to-clad alignement brings very compact dimensions, robust construction with protective elements, dust resistance and water resistance and 3-years warranty. Large 4.3" high-resolution touch screen and intuitive graphical interface provide users a large and clear image of the fiber. Two LEDs illuminate the splicing chamber and enable splicing even in non-illuminated environments. The battery with a capacity of 3000 mAh ensures the endurance of up to 150 cycles (splice + heat), in the economy mode even 200 cycles. Thanks to the USB Type C connector, the splicer can also be charged with a power bank. The package includes a fully automatic cleaver V11.

SOC:
The splicer supports the Splice-On connectors.

Accessories:
The splicer includes a fully equipped case. Contains:


Cleaver V11	AC power adapter	Cooling tray
Isopropyl alcohol bottle	Battery (1 year warranty)	USB Type C cable

Service and Maintenance:
We are a certified service center of INNO Instrument. We perform regular maintenance and service of splicers
Everyone who buys a new INNO splicer from us has their first service inspection completely free of charge.
The splicer should be inspected by a technician every year, cleaned and adjusted. This prevents poor splicing, overall equipment degeneration and unexpected failures.


Promo video:


Parameters:

Dimensions	197 x 137 x 87 mm
Weight	without battery 0.997 kg; with battery 1,206 kg
Supported fibers	SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Typical splice loss	SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard)
Lighting	2 white LEDs
Splice time	Quick mode 7 sec
Length of splice protection	20 - 60 mm
Results Memory	10,000 splice data
Operating conditions	altitude: 0 - 5000 m, humidity: 0 - 95%, temperature: -10 - 50 ° C, wind: max 15 m / s
Storage conditions	humidity: 0-95%, temperature: -20 - 60 ° C
Display	4.3 ”Color LCD display, Full touch screen
fiber views	120-240x magnification
Power supply	input: AC 100 - 240 V, DC 9 - 14 V
Battery capacity	3000 mAh / typically 150 cycles with protection heating (up to 200 in power save mode)
Control options	buttons, touch screen
Auto Calibration	Automatic pressure and temperature calibration
Electrode life	5500 arcs
Power input	USB Type C
