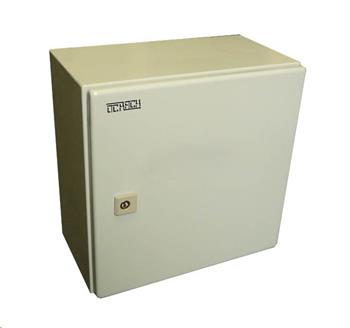

Electrical cabinet OCRACK, 500x500x300 mm, IP55

OCCCLOOP BLACK SUPPORT IS A versatile steel product.
Most often it finds use for regulation and measurement needs. Construction of the switchboard
The OCway cabinet consists of a welded sheet of 1.3 mm sheet metal, adapted for wall mounting.
Mounting can be realized over four holes on the back of the cabinet.
The door is suspended on two or three door panels according to the height of the power switchboard.
The door against opening is made using one or two single-point locks.

The devices are mounted on the cabinet on the mounting panel, which is made of galvanized sheet metal 2 mm.
IP-55 switchgear coverage. This is secured by PUR by sealing around the door perimeter.
By default, the cabinets are supplied with the RAL 7035 powder color (light gray). Other color shades NY order and minimum collection mnown is 10pcs.

parameters:

name	value
height:	500
width:	500
depth[mm]:	300
Weight (g):	19 000/TD>

Package content:

1x key,

4x holder

4x screw M8x20,

4x MATICEM8

8x pad M8x16,

4x spring pads,

6x m6matice copper

6x padsm6x12 copper

4x spring pad M6 copper

4x bolt self-tapping

1x blanket 15mm

4x plug 6mm

Set of stickers"grounding"

supplied without lock
