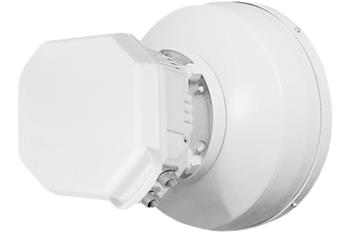

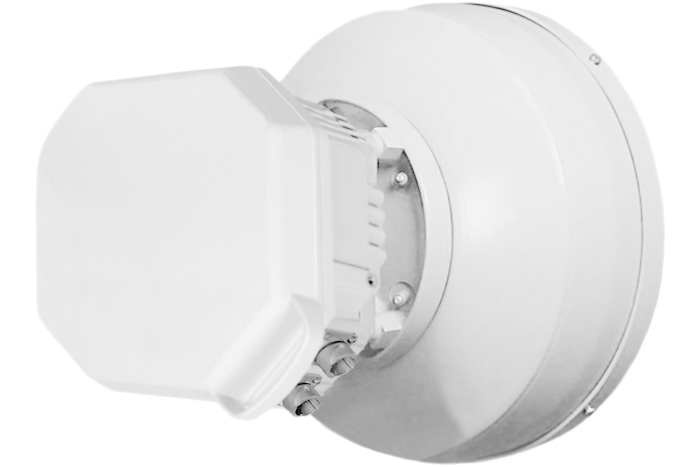

Connection SIAE ALFOplus, 500M, AM, 18 GHz, 0.6m ant.

Siae alfoplus is a microwave joint of the Full Outdoor , available in the 7-80 GHz bands. technology, which contains many unique functionalities, is produced by SIAE Microelettonica, which has more than 60 years experience with the development and production of radio modems and microwave technologies. Thanks to the annual production of more than 100,000 terminals , the Italian company with its registered office and production plant in Milan ranks fourth worldwide, within the EU it is even the second largest manufacturer next to spol. Ericsson. The largest customers are telecommunications operators Vodafone and telephone, no less important part is the ISP segment and system integrators.

Alfoplus is a microwave connection of a new generation, which in the 7-42 GHz bands has a guaranteed user capacity 436 Mbps in any type of operation , including triple play services.



Thanks to the advanced functionality of the optimization and compression of the data packet headers, it is possible to achieve the capacity of to 1 Gbps in a single 56 MHz channel , depending on the type of operation.

The technology has an intelligent switch on which all modern functions can be set. Switch contains full support of VLAN including. Qinq, supports Jumbo Packets (MTU up to 10 Kytes), QoS, LACP ...

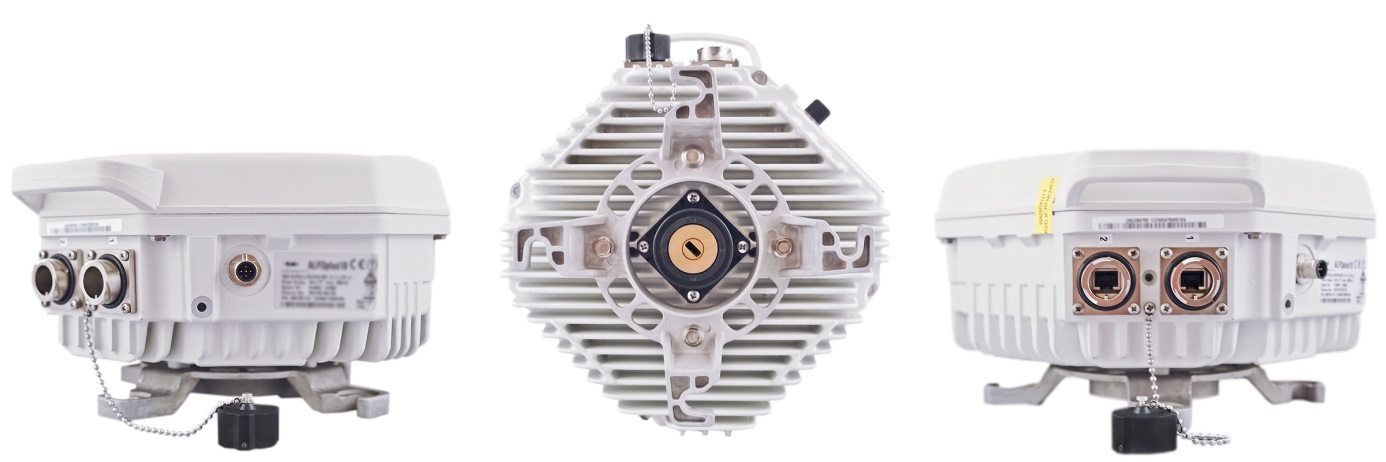

The physical interface is solved by a combination of two metallic interfaces or a combination of metallic and optical interface.

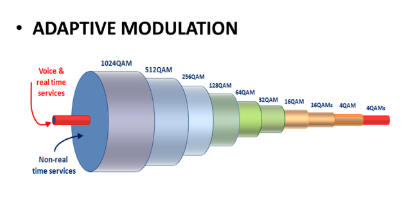

The radio part contains all functions for maximum range and availability of the joint, especially lossless ACM in the range 4QAM-1024QAM and ATPC adjustable after 1 dBm. Detailed specifications can be found here.



basic functionality of Layer 2

Support for Jumbo frames> 10 Kbytes

Carrier Ethernet Services (Evpline/Lan/Tree)

flexible QoS definitions based on VLAN, IPv4, IPv6, MPLS

Advanced VLAN Administration (Qinq)

Association of data streams (link aggration)

Erp support

RSTP (Rapid Spanning Tree Protocol)

Flow Control (IEEE 802.3x)

rmon statistics

LLF (Link Loss Forwarding)

ETH OAM (IEEE 802.1AG/ITU-T Y.1731)

Reasons for acquiring ALFOPLUS 18 GHz joint

Licensed band guarantees protection against interference

high transmission capacity over long distances

Thanks 1024 qam modulation it is possible to coordinate narrower channels for the same capacity

Unique option to compress data packets

Guarantee of the quality of one of the world's largest manufacturers

500 Mbps, 436 Mbps user (up to 1 GB with packet compression)

Features:

capacity/max capacity:

Max. Transmitter power:

23 dbm

power:

energy consumption:

max. 35 W

Supported Configuration:

1+0/1+1/2x (1+0)

modulation:

4/16/32/64/128/256/512/1024 QAM

ACM Hittles:

4 Qam 1024 Qam

safety standards:

en 60950

Frequency Stability:

ATPC:

Settings of 1 dB in the range of 20 dB

RTPC:

> 20 dB stopable after 1 dB, software adjustable

interface:

rj45 or SFP optical port

Operating temperature:

-35 to 55 ° C

dimensions:

254x254x154 mm

weight:
