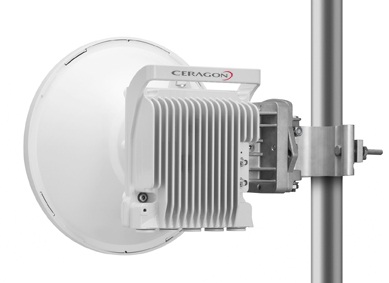

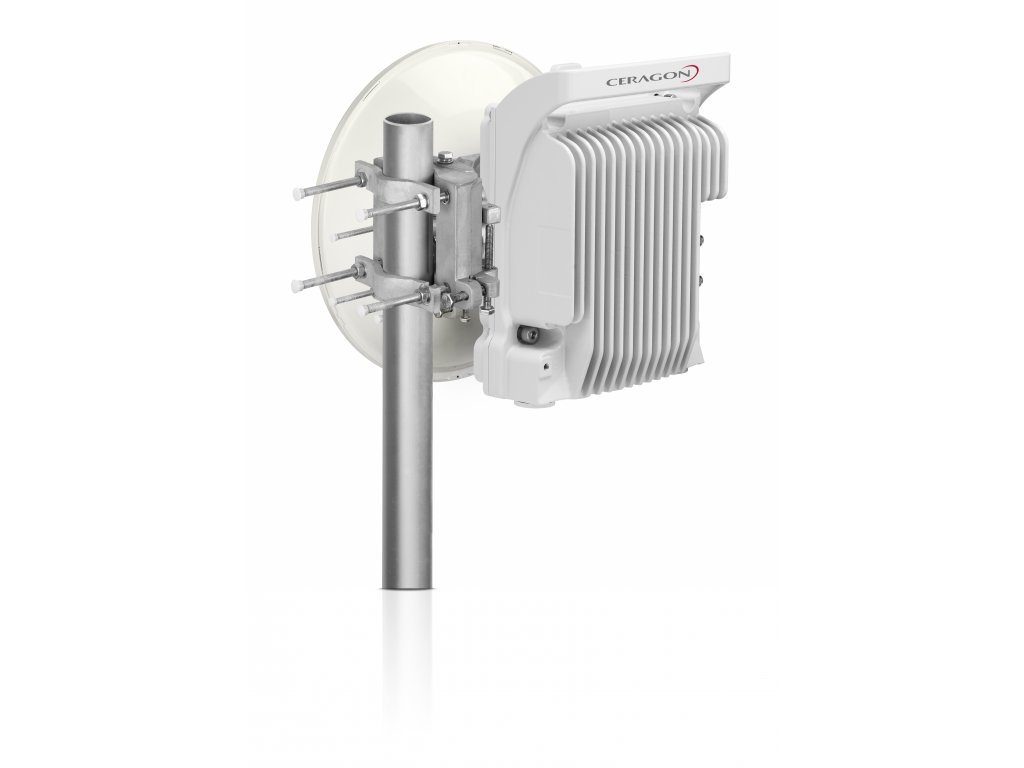

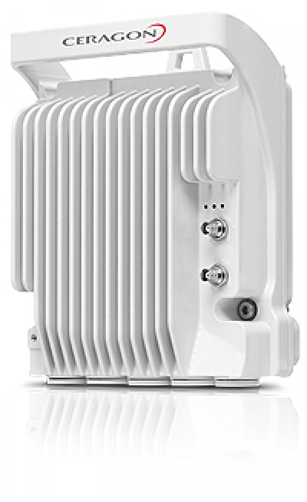

Ceragon IP-20C 11 GHz, up to 1 Gbit/s

The IP-20C is a compact high-capacity full outdoor microwave connection for licensed bands that meets the highest transmission capacity requirements. It achieves capacity of up to 1 Gbit/s and is fitted with Geth metallic port and GEET SFP slot to connect optics.

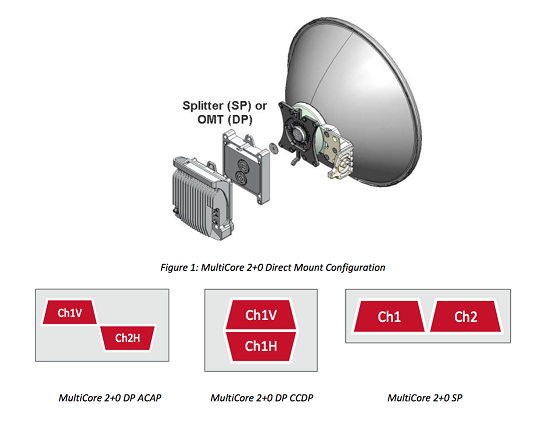

The connection supports the modern XPIC function, which ensures parallel operation in both polarizations at one frequency. As a result, it achieves capacity of up to 1 Gbit/s and significantly saves the cost of channel from the CTU. The whole joint is designed in one outdoor unit and guarantees easy and fast installation.

ACM modulation scheme at deterioration of climatic conditions



Main benefits of technology:

high transmission capacity

Optical route parameters with minimal latency

Inquirement of the Cost of Channel (XPIC)

The quality of the design and guarantee of the world manufacturer MW connections

properties:

11 or 18 GHz band

high transmission capacity up to 1 gbit/s

Canal width 3.5-80 MHz

modulation QPSK-2048 QAM

Max. TX POWER 15-23 dBM (according to frequency/joint type)

Interface GE + SFP

Typical consumption <41-65 W (according to frequency and joint mode)

power 48 VDC or POE

ACM, ATPC
