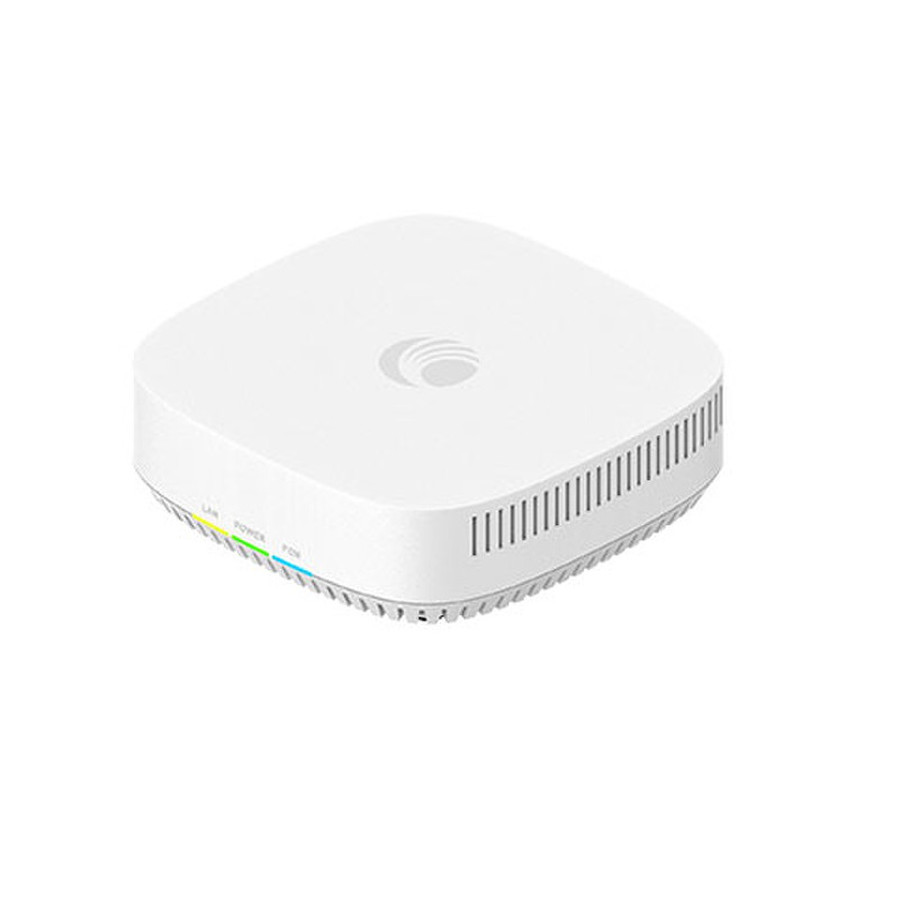

      Cambium GPON Indoor ONT SGX00
      Compare Set Watchdog

      Cambium GPON Indoor ONT SGX00

      The Cambium ont SGX00 is an internal Gpon unit equipped with a 1x Gigabit ETH port and allowing the device to be connected to the Gpon network with a speed of up to 2.488/1.244 Gbps.More information

      Producer
        Cambium Networks

      Part No.


      SGX00-0A02


      Code
       00073114
      Warranty
      12 Month
      Availability

      not in stock
      Availability in stores
      Order

      Your price
      Price after login

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        Cambium ont SGX00 is an internal Gpon unit equipped with 1x gigabit ETH port and allowing the device to be connected to the GPP network with a speed of up to 2.488/1.244 Gbps . Thanks to compact dimensions and PoE power it is possible to place the unit to almost any place.

        Properties:
        • Pon Gpon: 2.488/1.244 Gbps
        • wavelength: D: 1490 nm, u: 1310 nm
        • TX Power: Class B+ 4 to 9 dbm
        • rx sensitivity:-28 to-8 dbm
        • 1x 10/100/1000 Base-t Ethernet
        • Dimensions 105 x 105 x 33mm
        • Power supply 12V DC/1a (part of the package)

        Parameters

        Ethernet parameters
        Number of LAN ports 10/100/1000 1

        Optical parameters
        Optical connector type SC
        Polishing type APC
