Cambium cnWave V5000, 60 GHz, AP

Comprehensive solution for wireless gigabit access network in the form of Cnwave from the world number one Cambium Networks brings easy and fast high-capacity networks with significantly lower TCO than optical infrastructure and with several times faster construction. In fact, it is possible to connect clients at gigabit speed at a distance of hundreds of meters or use the terragraph technology to expand coverage using a mesh network. All this in a robust version and expanded warranty for 36 months .

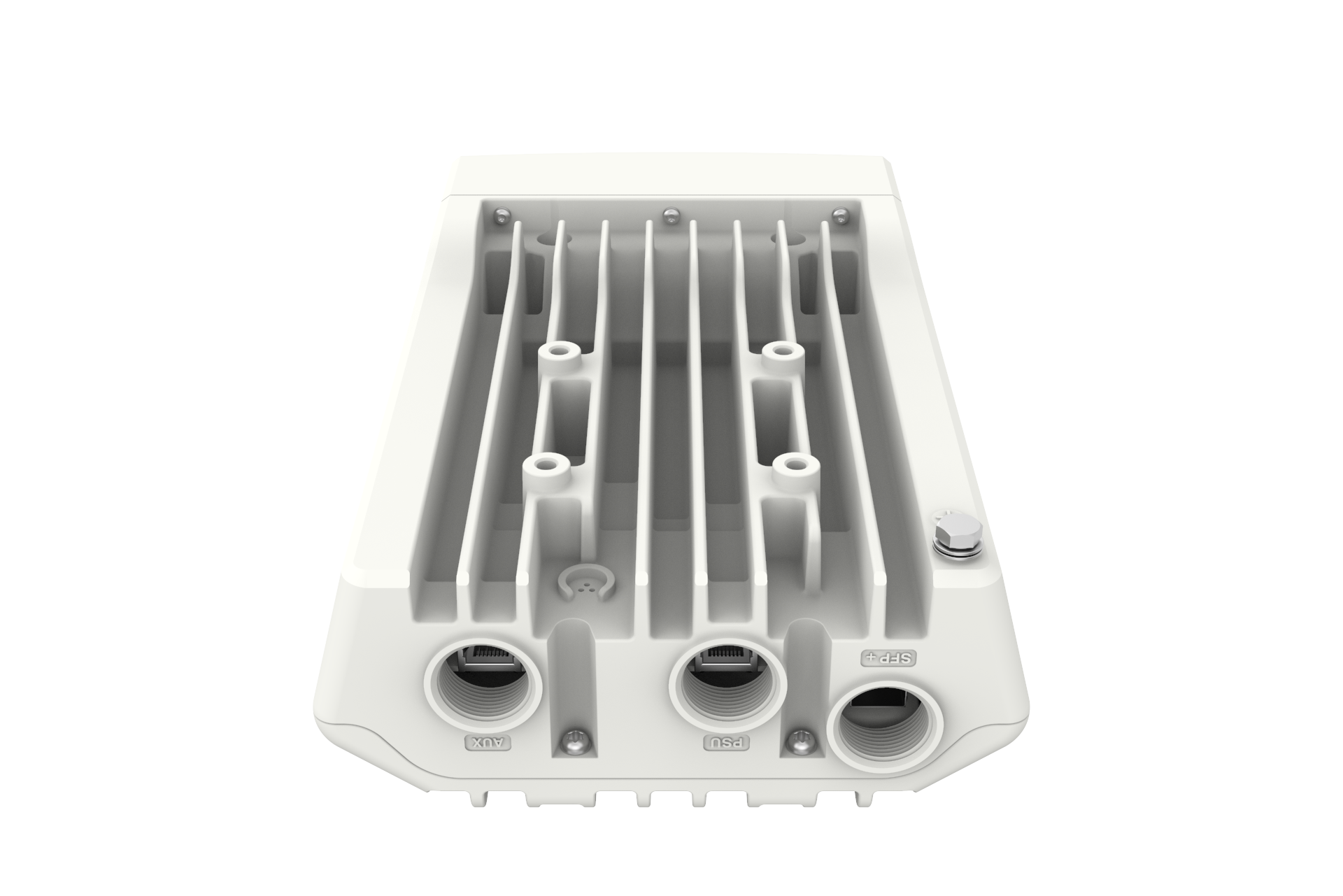

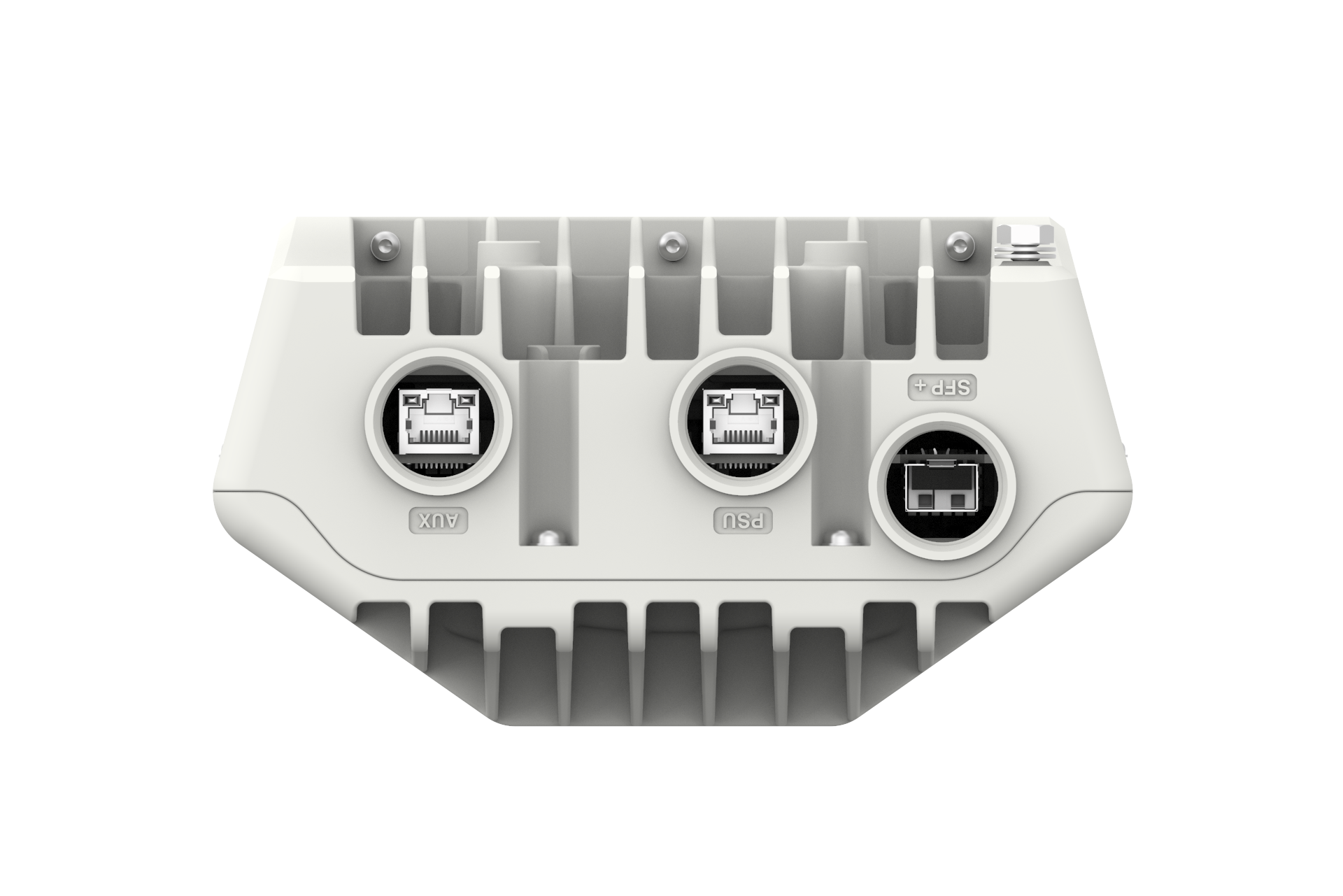

The Cambium Cnwave V5000 is the 60 GHz (two-integrated sectors with a radiation angle of 2x 140 ° (20 ° in the vertical direction) or 4 access points in Mesh mode. Thanks to the width of the 2.16 GHz channel and the modulation of up to 16 qam, the capacity unit reaches up to 7.6 GBPS (in the future thanks to SW upgrade and channel width of 4.32 GHz to double). The unit has a total of 2x metallic RJ45 port and one optical 10g SFP+ port . One of the ports supports 1/10g ETH and Passive Poe-in (44-57 V), the other port is supported by 1GE ETH and POE-OUT (802.3AF/AT).

For central network management, units can be integrated into the CNmaestro system. CNmaestro simplifies the management of all Cambium devices, allows zero-touch provisioning new devices and offers a clear display of network status. It optimizes the availability of the system, maximizes the permeability and helps to increase satisfaction for both corporate and residential customers.

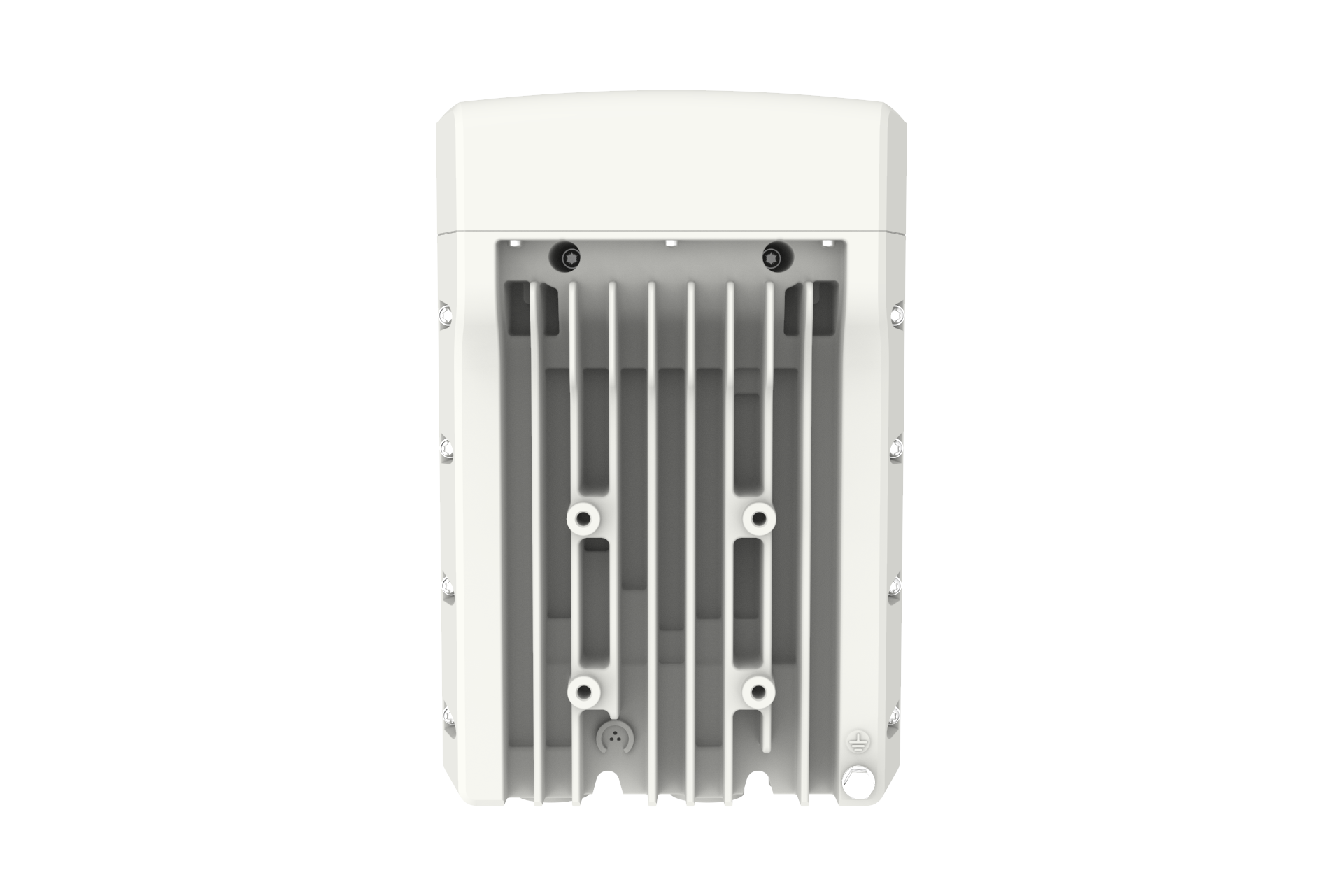

The V5000 unit is designed for installation on a column or wall (the holder is not included, you need Order ), with compact dimensions and low weight below 4 kg any place. Maximum consumption is 35 W , if used by PoE out up to 60 W.


properties:

• Frequency range 57 to 66 GHz
• Standard 802.11ay, Terragraph Facebook certification
• two sectors-each 140 °, ie coverage 280 °
• capacity up to 7.6 Gbps (1.8 GB/s DL and 1.8 GB/s UL for sector). In the case of Channel Bonding, the capacity doubles.
• TDMA/TDD Channel Access and Network Synchronization
• GPS Sync, alleviation interference with antenna control of the beam and dynamic filtering?
