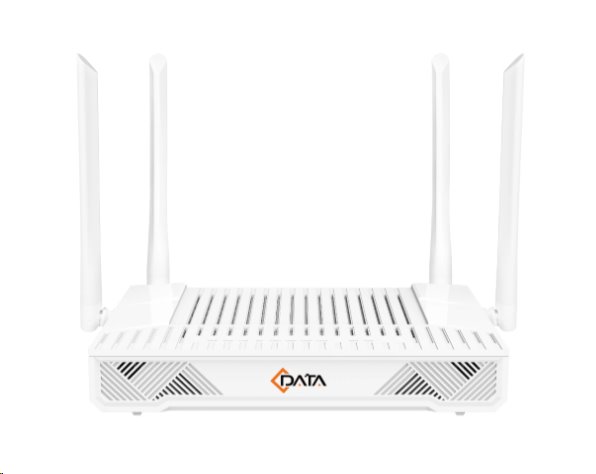

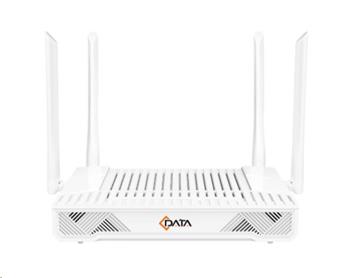

      C-DATA FD514TS3-R880, XGSPON ONT, WiFi 6, 4x GEth
      Compare Set Watchdog

      C-DATA FD514TS3-R880, XGSPON ONT, WiFi 6, 4x GEth

      C-DATA FD514TS3-R850S is a modern xgs-pon (10 GB/s) on Gateway with integrated Wi-Fi 6 (AX3000) , ideal for home or office FTTH. It allows simultaneous wireless access over 2.4 GHz and 5 GHz (total speed to 3000 Mbps ) and has four gigabit ethernet por...More information

      Producer
        C-DATA

      Part No.


      FD514TS3-R850


      Code
       00075248
      Warranty
      24 Month
      Availability

      in stock
      Availability in stores
      Order

      Add to cart
      Your price exc. VAT
      65.64 EUR exc. VAT
      VAT
      21%
      Your price inc. VAT
      79.42 EUR  inc. VAT

      Ask for a better price

        Ask for a better price

        Your e-mail
        Phone
        Quantity
        Comment

        Description

        C-DATA FD514TS3-R850S is a modern xgs-pon (10 GB/s) on Gateway with integrated Wi-Fi 6 (AX3000) , ideal for home or office FTTH. It allows simultaneous wireless access over 2.4 GHz and 5 GHz (total speed to 3000 Mbps ) and has four gigabit ethernet ports.
        • Support Xgsgpon (FSAN G.9807.1) 1 × PON POR PORT (SC/UPC, Gon/Epon)
        • 4 × 10/100/1000 Mbps gigabit LAN ports (RJ-45)
        • wifi 6 (802.11a/b/g/n/ac/ax)-2.4 GHz: up to 574 Mbps, 5 GHz: up to 2400 Mbps
        • xgsgpon: 10 Gb/s downstream, 10 Gb/s upstream
        • range up to 20 km
        • Support of alt of different manufacturers, plug-and-play installation
        • Management and Configuration: Web GUI, TR-069, OMCI
        • easy remote management and monitoring
        • power supply 12 V DC /2 and adapter
        • consumption <22 W

        Parameters

        Consumption 6
        Management Yes
        Power Supply DC
        Properties IGMP-Snooping, CTC, Port protect, QoS, VLAN

        Ethernet parameters
        Gigabit LAN yes
        Number od RJ45 ports 4

        Optical parameters
        Optical connector type SC
        Počet PON portů 1
        Polishing type APC
        PON standard XGSPON

        Physical parameters
        Depth (mm) 120
        Design Standalone
        Height (mm) 41
        Operating Temperature 0° až +40 °C
        Weight (kg) 0.3
        Width (mm) 170
        All parameters Less parameters

        Do you need help?

        We will help you with product selection or technical problems.

        (+420) 246 035 451 Information and orders

        Ing. Jan Stejskal

        Product manager
        +420 601 570 595
        stejskal@vanco.cz

        Product question

        Product question

        E-mail
        Phone
        Enquiry

        Do you need help?

        We will help you with product selection or technical problems.

        (+420) 246 035 451 Information and orders

        Ing. Jan Stejskal

        Product manager
        (+420) +420 601 570 595
        stejskal@vanco.cz

        Downloads1

        Datasheet
        fd514ts3-r850s.pdf Format pdf (314.7 kB) Download
