C-DATA FD514GS1-R550, GPON ONT, WiFi 6, 4x GEth
Compare Set Watchdog

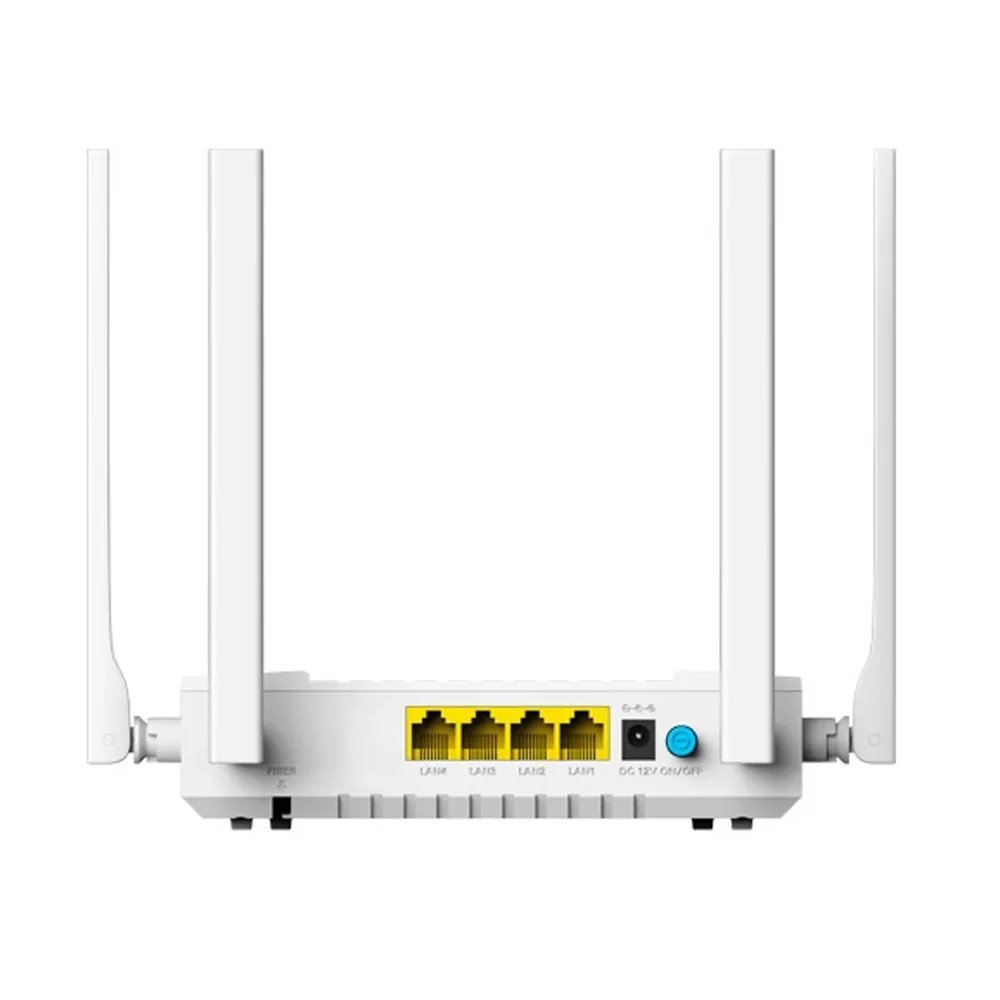

C-DATA FD514GS1-R550, GPON ONT, WiFi 6, 4x GEth

C-Data FD514GS1-R550 is a modern and powerful Xpon ont unit for FTTH in home and smaller companies. It supports both gpon as well as Epon standards, which ensures wide compatibility with OLT of different manufacturers. Thanks to the integrated WiFi 6 (...More information

Producer
  C-DATA

Code
 00075222
Warranty
24 Month
Your price exc. VAT
31.45 EUR exc. VAT
VAT
21%
Your price inc. VAT
38.05 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

    C-DATA FD514GS1-R550 is a modern and powerful xPON ONT unit designed for FTTH deployment in homes and smaller companies. It supports both GPON and EPON standards, ensuring wide compatibility with OLTs from various manufacturers. Thanks to the integrated WiFi 6 (802.11ax) in the 2.4 GHz and 5 GHz bands, it provides a fast and stable wireless connection for multiple devices at the same time.
    The device offers four gigabit LAN ports for wired connection, easy installation and management, low power consumption and reliable operation. It is ideal for Internet providers who want to offer customers a high-speed connection with modern features.
    • GPON (ITU-T G.984) and EPON (IEEE 802.3ah) support – flexible deployment and compatibility.
    • 1× PON port (SC/APC, GPON/EPON)
    • 4× 10/100/1000 Mbps gigabit LAN ports (RJ-45)
    • WiFi 6 (802.11a/b/g/n/ac/ax)-2.4 GHz: up to 300 Mbps, 5 GHz: up to 1201 Mbps
    • GPON: 2.488 Gbps downstream, 1.244 Gbps upstream
    • Range up to 20 km (depending on optical path)
    • Support OLT of various manufacturers, plug-and-play installation
    • Administration and configuration: WEB GUI, TR-069, OMCI
    • Easy remote management and monitoring
    • Power supply 12 V DC/1 A adapter
    • Consumption <12 W

    Parameters

    Consumption 6
    Management Yes
    Power Supply DC
    Properties QoS, VLAN, IGMP-Snooping, CTC, Port protect

    Ethernet parameters

    Gigabit LAN yes
    Number od RJ45 ports 4

    Optical parameters

    Optical connector type SC
    Počet PON portů 1
    Polishing type APC
    PON standard GPON

    Physical parameters

    Depth (mm) 120
    Design Standalone
    Height (mm) 41
    Operating Temperature 0° až +40 °C
    Weight (kg) 0.3
    Width (mm) 170
    All parameters Less parameters
