C-DATA FD511T-R460S, XGSPON bridge ONT, 10GE port
C-DATA FD511T-R460S is a powerful xgs-pon on designed for internal deployment as an optical FTTX terminal. Supports Standart XGS-Pon (FSAN G.9807.1) with symmetrical bites 10 Gb/s down/10 Gb/s up . With 10 GBE LAN design , low consumption (; Optical Po...More information
FD511T-R460S
Ask for a better price
Products classification
Product question
Product question
Do you need help?
We will help you with product selection or technical problems.
Ing. Jan Stejskal
Product managerDownloads1
Related products1
Related products
C-DATA FD1601S-B2, 1-port GPON OLT
C-DATA FD1601S-B2 is a compact and powerful mini gpon alt unit , designed for smaller to medium FTTH deployment with 128 connected onus on a single PON port. It offers 1 × Gpon Port , 2 × Gigabit Ethernet, 1 × SFP+ Conclink and is also equipped with in...
exc. VAT
inc. VAT
Last visited
Description
Optical Port (PON): XGS-Pon interface , Standard Support FSAN G.9807.1 ,

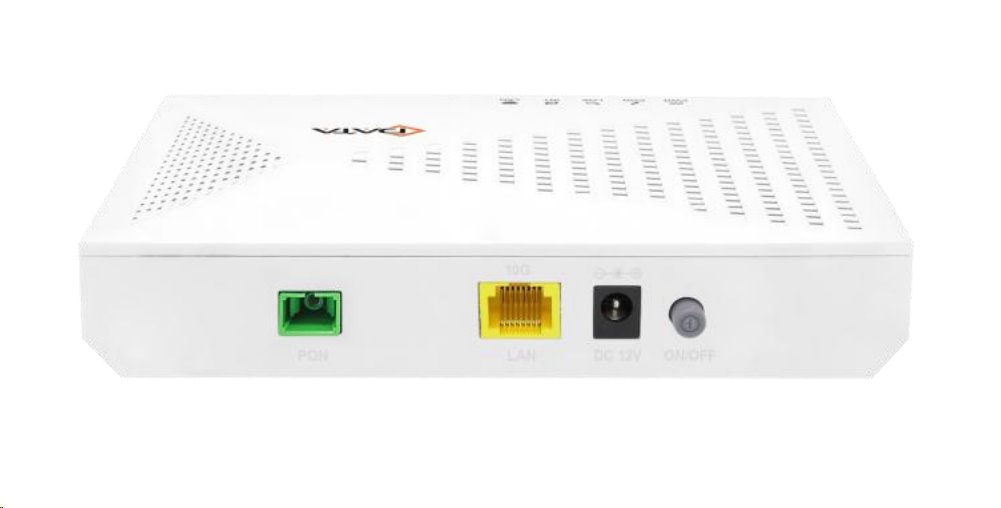

Ethernet Port (LAN): 1 × 10Gbps RJ-45
Dimensions and weight: 160 × 112 × 32 mm, weight approx. 200 g
Power: external 12 V/1a DC adapter, consumption <8 W
Operating environment: temperature 0–40 ° C, humidity 10-90 # i6per # (non-contentment)
Estates LED indicators: PWR, PON, LOS, LAN
Parameters
Ethernet parameters
Optical parameters
Physical parameters
