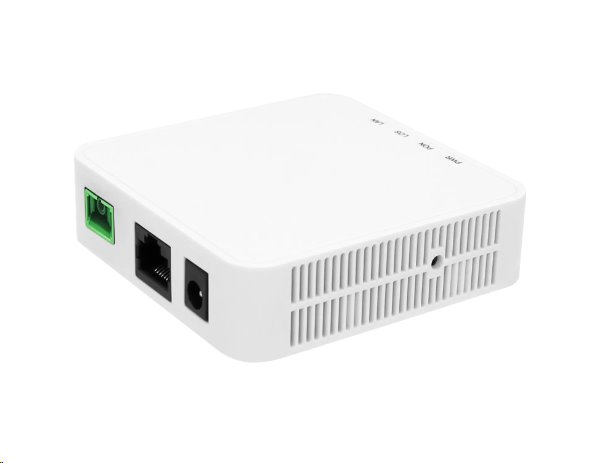

C-DATA FD511G-F660, GPON bridge ONT, 1GE port

C-DATA FD511G-F660 is a compact but powerful xpon (Dual-Mode Gon/Epon) that unit designed for home or small office FTTH deployment. It has one optical port (Gon/EPON) and one gigabit Ethernet RJ-45 port, providing the possibility of flexible network connection. Thanks to full compatibility with ITU-T G.984 (Gon) Iee 802.3Ah (EPON) , the supported OLT mode automatically detects an adaptive transition between GPPP/EPON. For example, the unit supports remote firmware upgrades, automatic supervision (auto-discover), configuration VLAN, bandwidth, safety features and SNMP management. This promises stable operation, intuitive management and simple deployment.

• xpon (dual-mode gpon/epon): support for Gpon (ITU-T G.984.2, Class B+) and Epon (IEEE 802.3Ah 1000Base-Px20+)

• Optical Port (PON):

  • gpon: up to 2,488 GB/s downstream/1,244 GB/s upstream.

  • Epon: 1,25 GB/s symmetrically

• Ethernet Port (LAN): 1 × 10/100/1000 Mbps RJ-45, Autonegotation, Full/Half Duplex, Auto-MDI/MDI-X

• Dimensions and weight: approx. 78 × 78 × 23.5 mm, weight approx. 62.7 g

• Power supply: external 12 V/0.5 and DC adapter, consumption <3 W

• Operating environment: temperature 0–40 ° C, humidity 10-90 # i6per # (non-contentment)

• Estates LED indicators: PWR, PON, LOS, LAN
