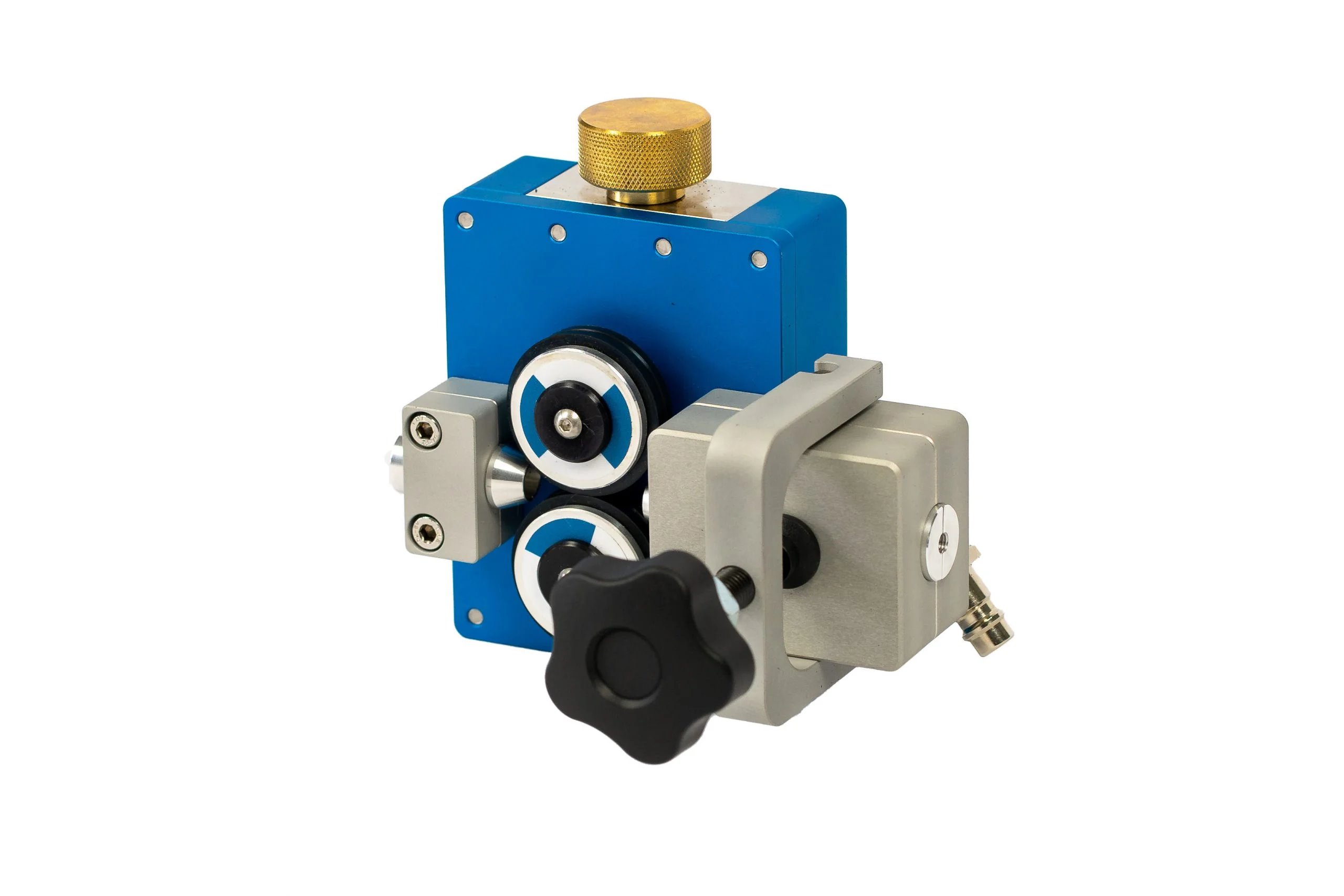

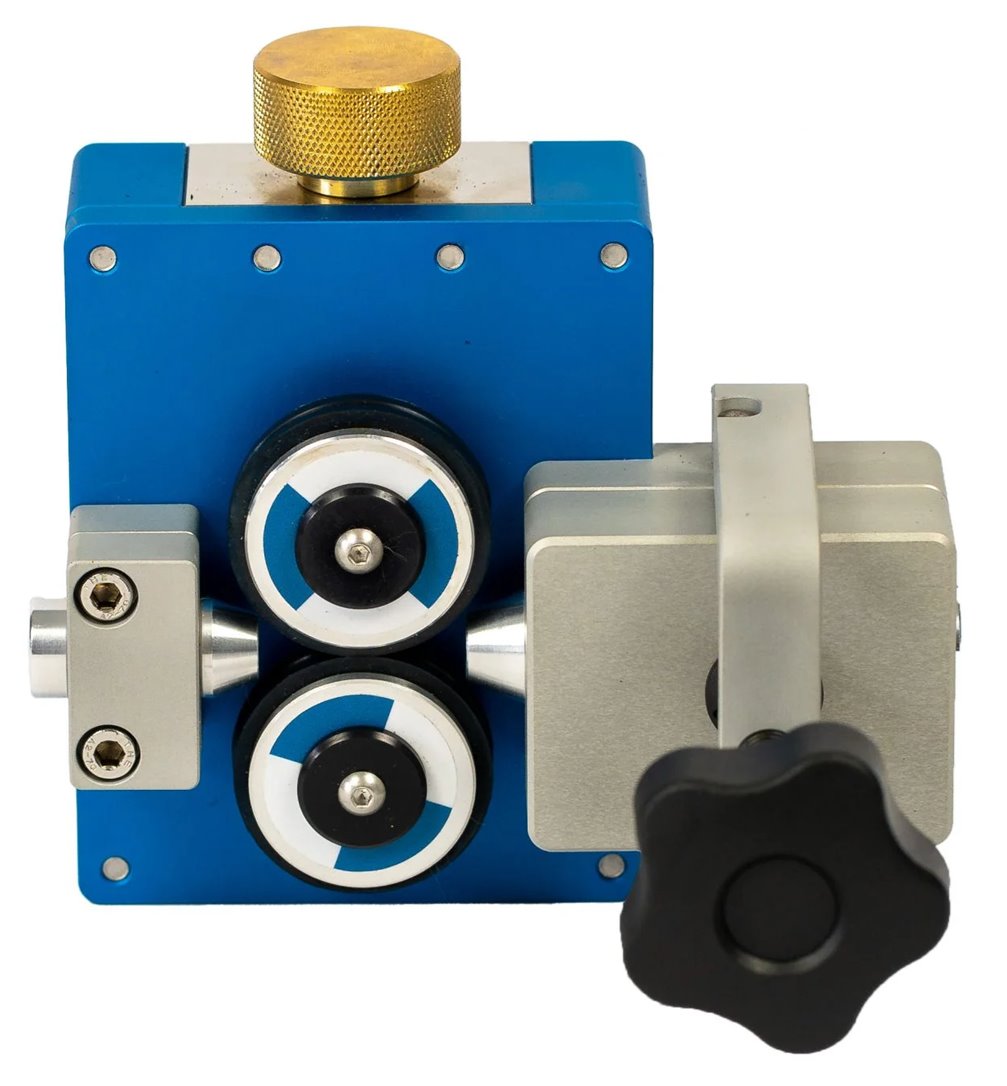

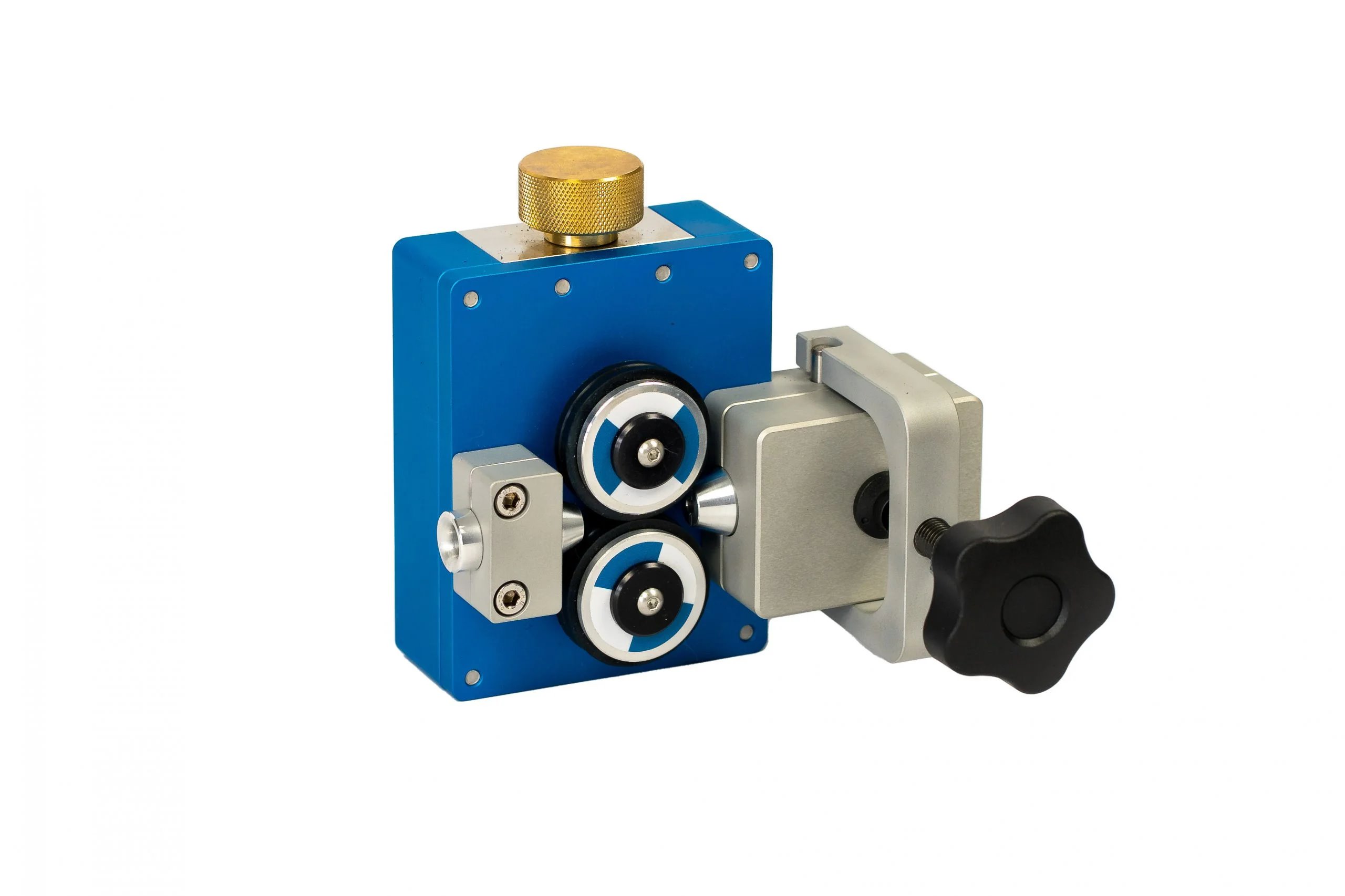

Blower for optical cables BDJ BUDGET PLUS

The Blue Dragon Jet Budget Plus is designed to build the last mile of the FTTH network. Thanks to its simplicity and compact construction it is very easy to use. Using removable collets and input reductions is designed for blowing cables from 0.5 mm to 6 mm into microt runs from 5 mm to 10 mm. The construction is adapted for the possibility of removing the non-finished cable.

Technical data:

Construction: anodized al alloy, stainless steel

pressure air supply: connection: 3/4"bayonet clutch, up to 15 bar

Dimensions: 260 x 100 x 140 mm

Weight without accessories: 2 kg

drive using an acuarder

Maximum blowing speed 60 m/min

Optical cable diameter: 0.5 mm-6 mm

Minimum microtube diameter: 5 mm

maximum diameter of microtube: 10 mm

Maximum blowing gloves: about 700 m

minimum compressor requirements:

microtubes to 8 mm-0.8 m3/min

microtubes from 8-12 mm-1 m3/min

microtubes from 12-16 mm-1.5 m3/min

Accessories:

set

A set of reducing boot for opt.

Set of sealing cuffs in cassette

Set of Exchange Rocks 2, 4 and 6 mm

inbus keys

lubricant prelube 5000 0.24 l

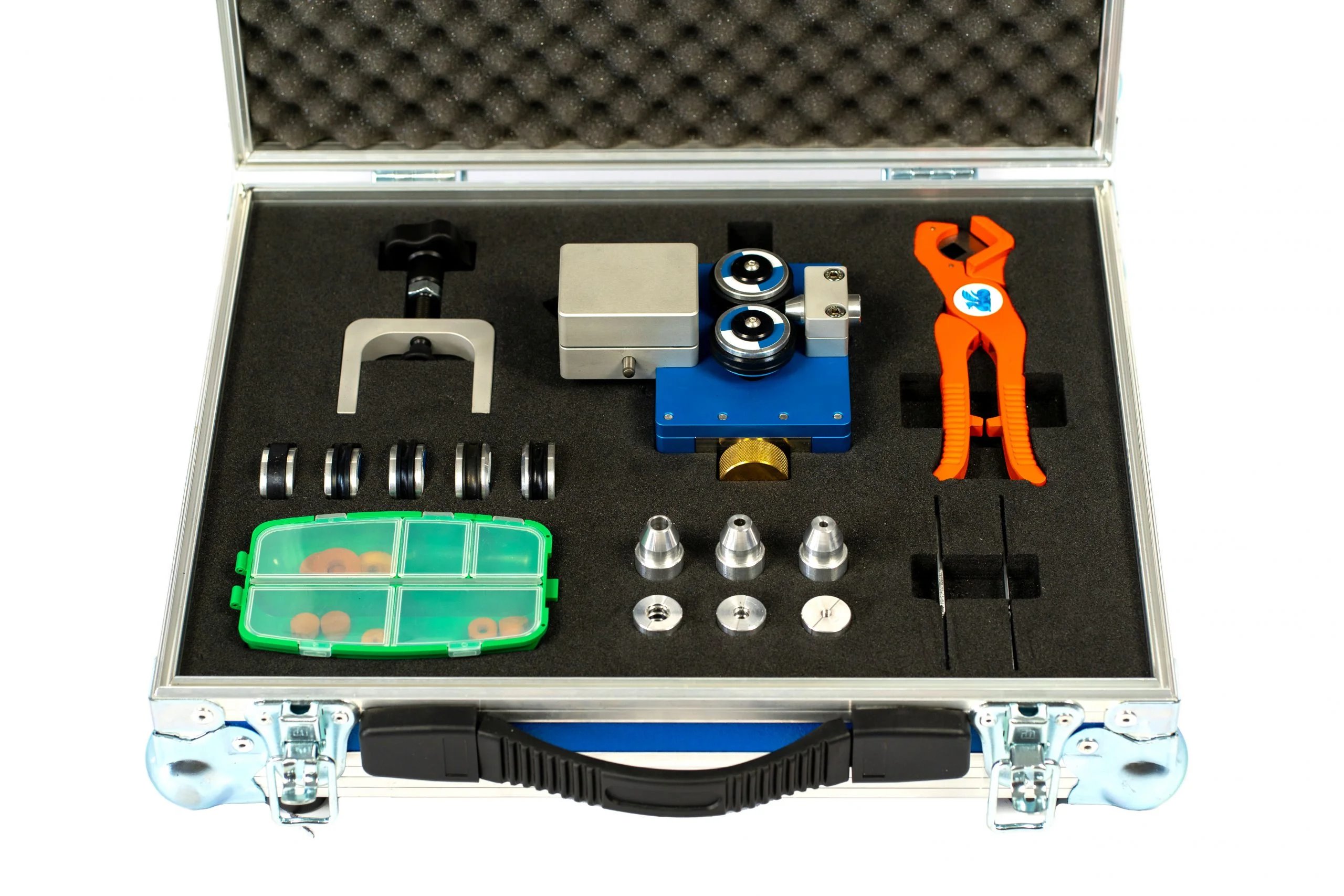

supplied in a protective al trunk

10m hoses to connect a compressor

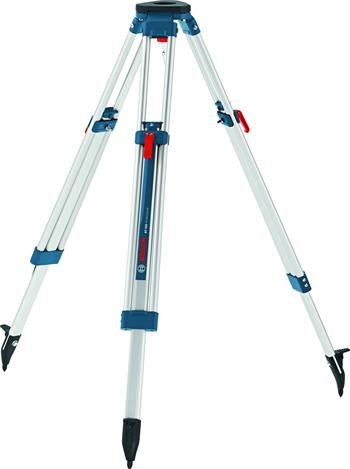

tripod to ensure stability when blowing
