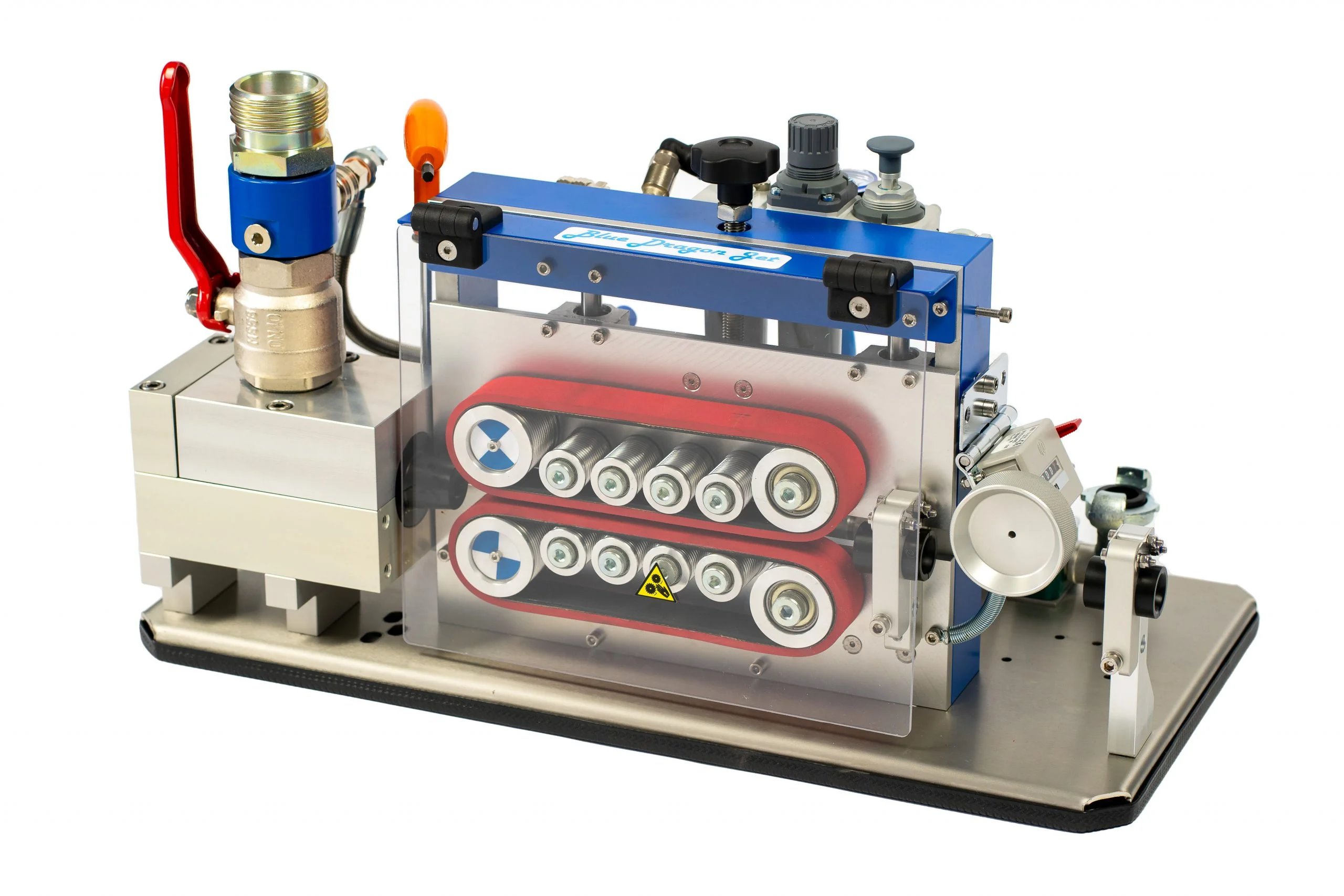

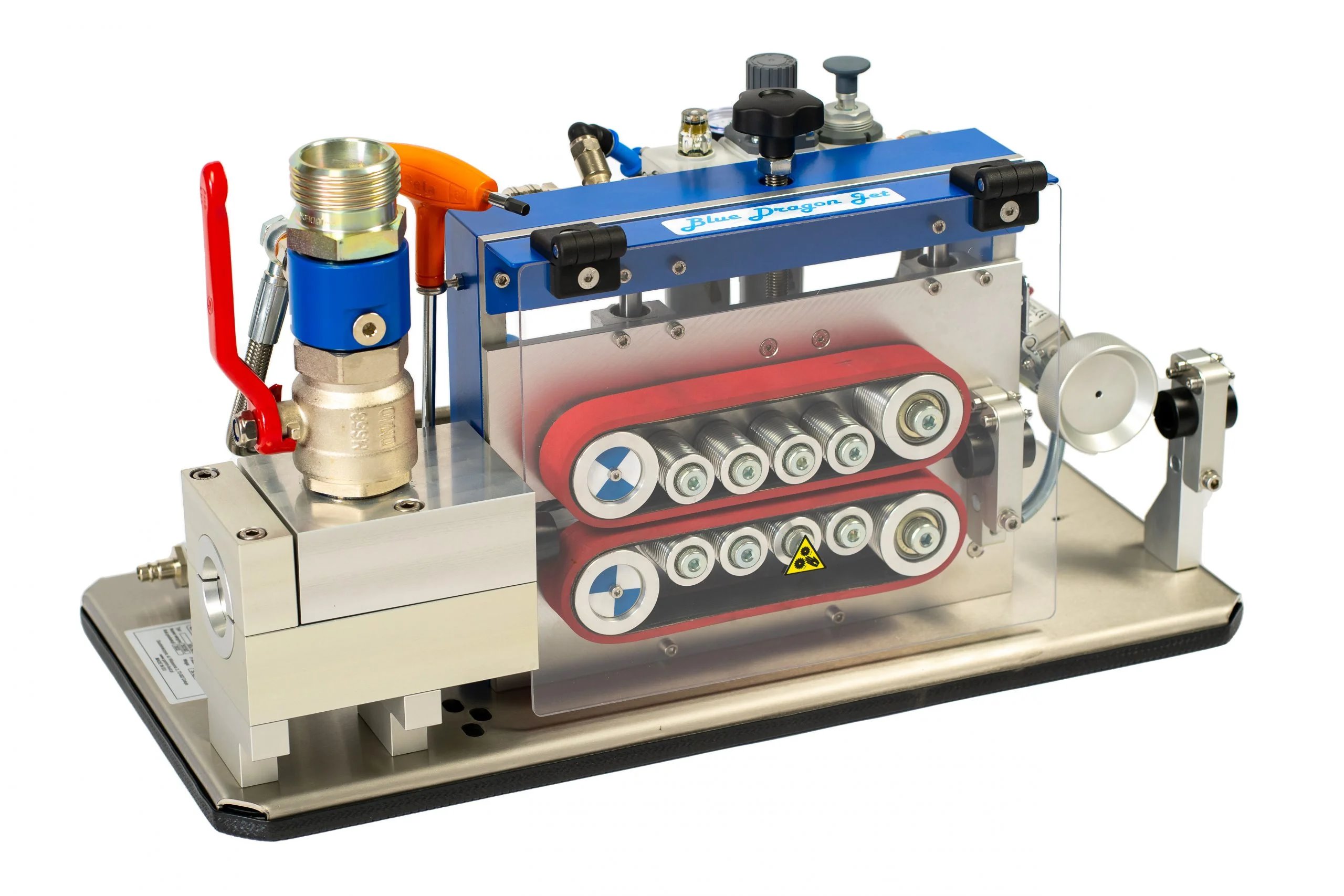

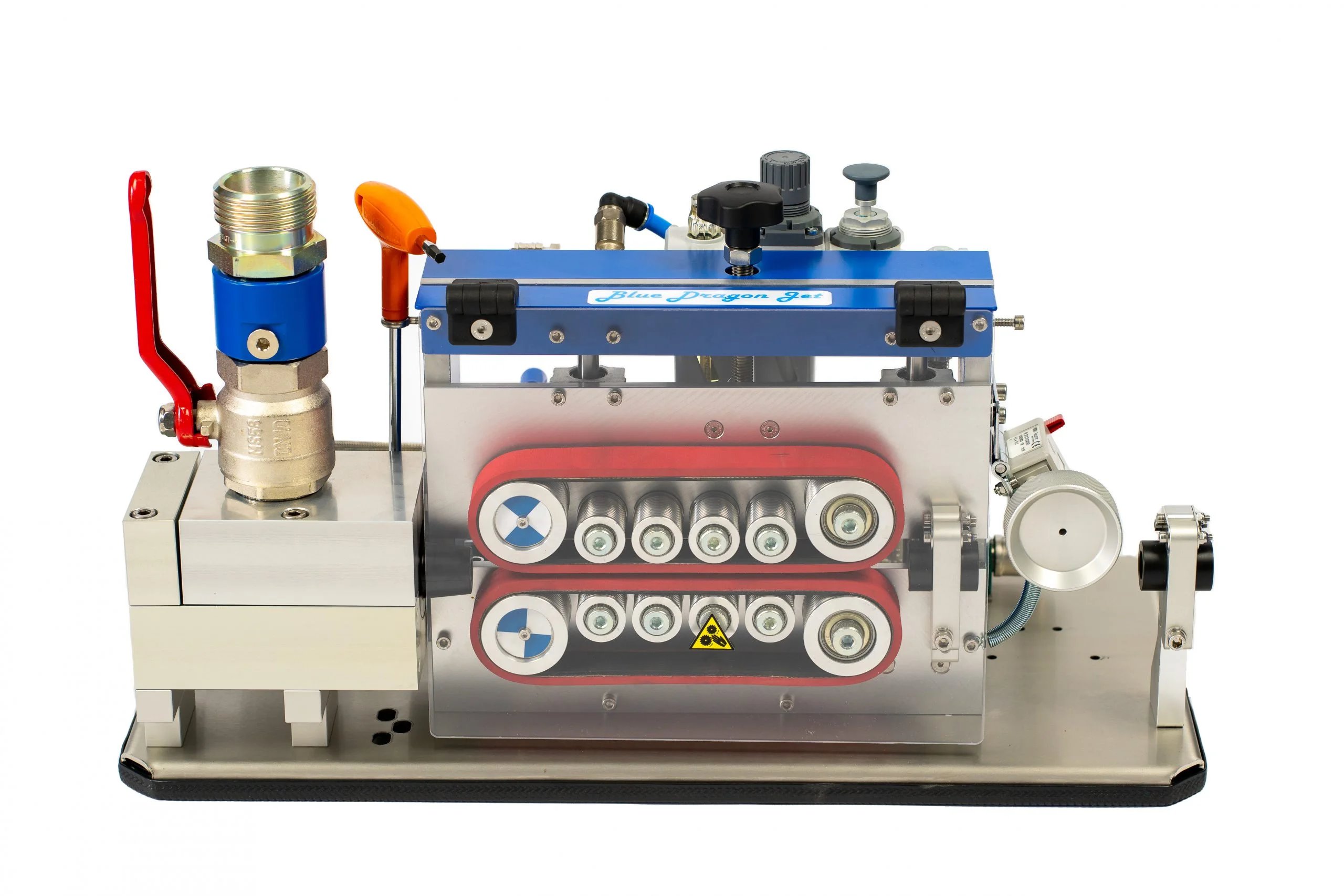

Blow molding machine for optical cables BDJ MAX

The Blue Dragon Jet Max is a professional pneumatic drive device designed to blow cables and microt runs into HDPE pipes. Thanks to its simple and robust construction, it is very easy to use while maintaining a long life. The machine is supplied with accessories to blow cables/tubes with diameters of 6-15 mm into HDPE pipes 32, 40 and 50 mm. The construction is adapted for the possibility of removing the non-finished cable. The blower is equipped with a practical mechanical counter that allows you to read the length of the foaf cable.

Technical data:

Construction: anodized al alloy, stainless steel

Dimensions: 620 x 300 x 380 mm (690 x 430 x 440 incl. Transport box)

Weight: 35 (48 kg incl. Transport box)

pneumatic drive

maximum blowing speed 120 m/min

Optical cable diameter: 6 mm-15 mm

HDPE diameter: 32, 40, 50 mm

Maximum blowing gloves: about 2500 m

minimum compressor requirements:

8-10 m3/min for blowing up to 32/40/50mm HDPE

Accessories:

Set of collets for HDPE pipes

Set of seals for HDPE pipes

set of sealing cuffs on cables

inbus keys Slot keys

air hose

oil for pneumatic motor

set for calibration
