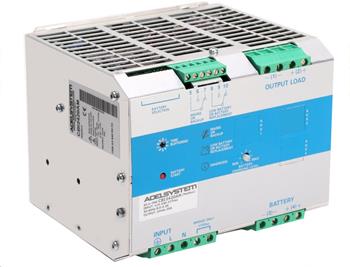

ADEL System CBI60024A, industrial backup power supply, 24V/25A, 600W, IP surveillance

A number of industrial power supply backed up CBI sources (sometimes also known as DC-UPS) from the traditional Italian manufacturer Adel System brings the best technologies to the category of affordable sources. The CBI60024A is an AC/DC source with an input voltage of 115-230 V and a DC 24 V/25 and output, with the option to connect with a power to 600 W . In addition, the batteries can be connected to the power supply, and the powered device will remain in operation even in the event of a power failure.

The CBI60024A has Ethernet with , which allows you to monitor and a range of parameters via Ethernet (SNMP v3, Modbus TCP/IP, https). Simple and clear graphical interface allows you to display the status of all inputs, outputs, voltage and SOH battery.
You can monitor history all interfaces (min/max, number of exceeding limits) and set complete charging parameters (battery type, curve, alarm and threshold values). The data can be transmitted using the site (HTTP/HTTPS), SNMP V1/V2/V3C, Adelbus/Canbus, Modbus, or to be sent by email. Alarms can also be informed thanks to three relay outputs. You can also run Battery test , restart, set the charging current or batteries completely disconnect . All data is logged, including long-term battery statistics (SOH, internal resistance) and can be exported in CSV format.

All devices can use any type of battery with a factory-optimized charging curve suitable for all the most common battery technologies: open lead, closed lead, gel/AGM, Ni-CD, Li-ion, LIFEPO4 . The integrated battery life test ensures power reliability thanks to continuous testing of internal impedance. It prevents possible damage and provides permanent, reliable power supply-according to the parameters, the system is able to recognize sulfate batteries or batteries with short-circuit cell. Lead batteries can be kept in the best possible condition thanks to the integrated regular cycling function.

Other battery control and protection include:

• Testing Impedance of Traffic Wires-During maintenance charging, the status of the supply wires to detect poor contact
is checked every 20 seconds
• Short-circulated or sustained batteries-During maintenance charging every two hours is a test of internal impedance for detection of defective batteries
• Incorrect Polarity of Battery-Battery Conservation with opposite polarity
• Incorrect battery type-protection against connection of incompatible batteries
• temperature compensation-thanks to the connectable temperature sensor, the optimum charging curve is guaranteed at all temperature conditions
• Short-circuited cells-thanks to specific DC-UPS test algorithms recognize battery with internal short-circuit cells

The source can withstand up to 100# i6per# overload of the output without disconnecting the load . Against short circuit is then protected by one of 3 optional methods: 1) Hiccup Mode 2) Continuous Out Mode 3) Manual Reset.

Wide working temperature range (- 25 ° C to 70 ° C ), compact size including DIN rail holder and above standard 3 years warranty are a prerequisite for reliable operation at all times.

key features:

• input: 115-230 VAC
• Output: 24 VDC /25 and /600 W
• Efficiency: More than 91 #i6per #
• battery charging current up to 25 and (adjustable)
• Overload option up to 100 #i6per #
• Support for Ethernet monitoring (Web/SNMP)
• Output relay (power signaling/low battery level)
• Advanced Management and Diagnostics of Battery
• Start button from batteries
• Three types of short-circuit protection: 1) hiccup mode 2) Continuous Out Mode 3) Manual Reset
• compact size + assembly on DIN
• 3 years warranty

The complete portfolio of CBI sources and their parameters can be found in this catalog .
