ADEL System CBI4810A, industrial backup power supply, 48V/10A, 500W

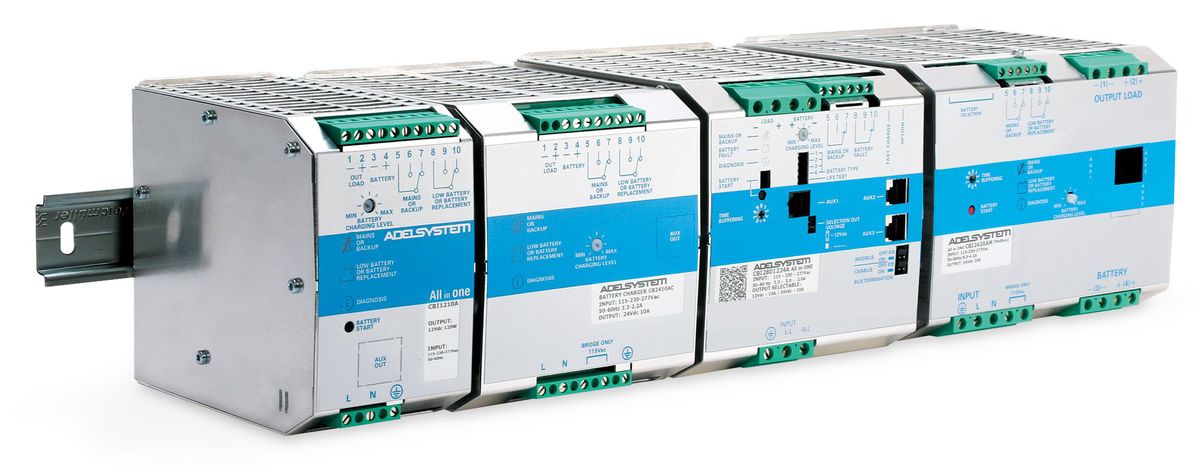

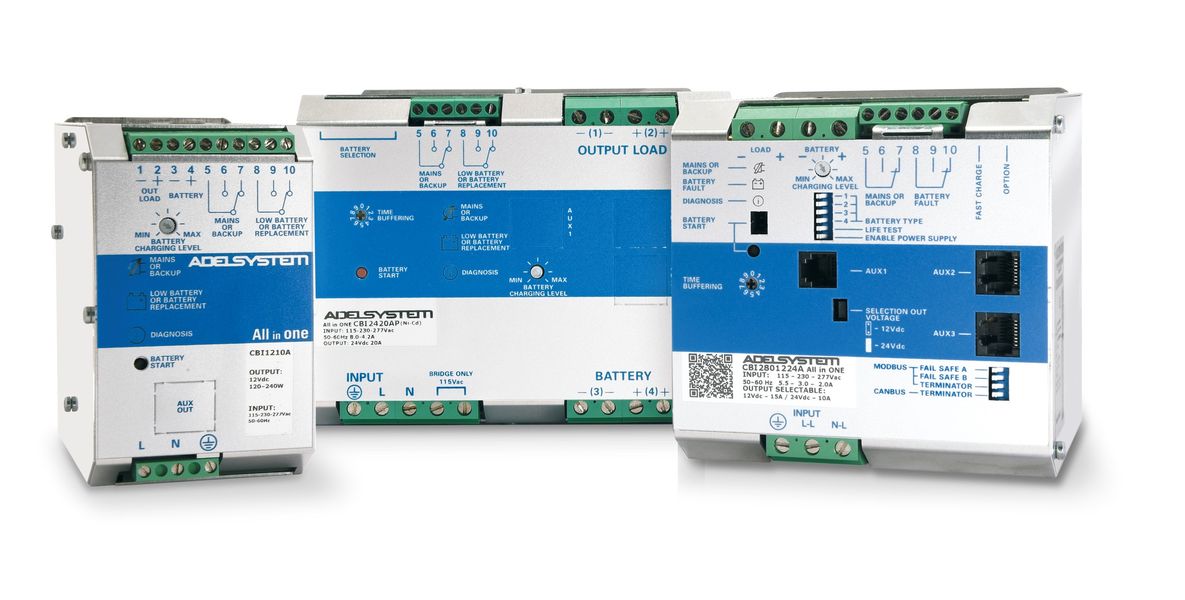

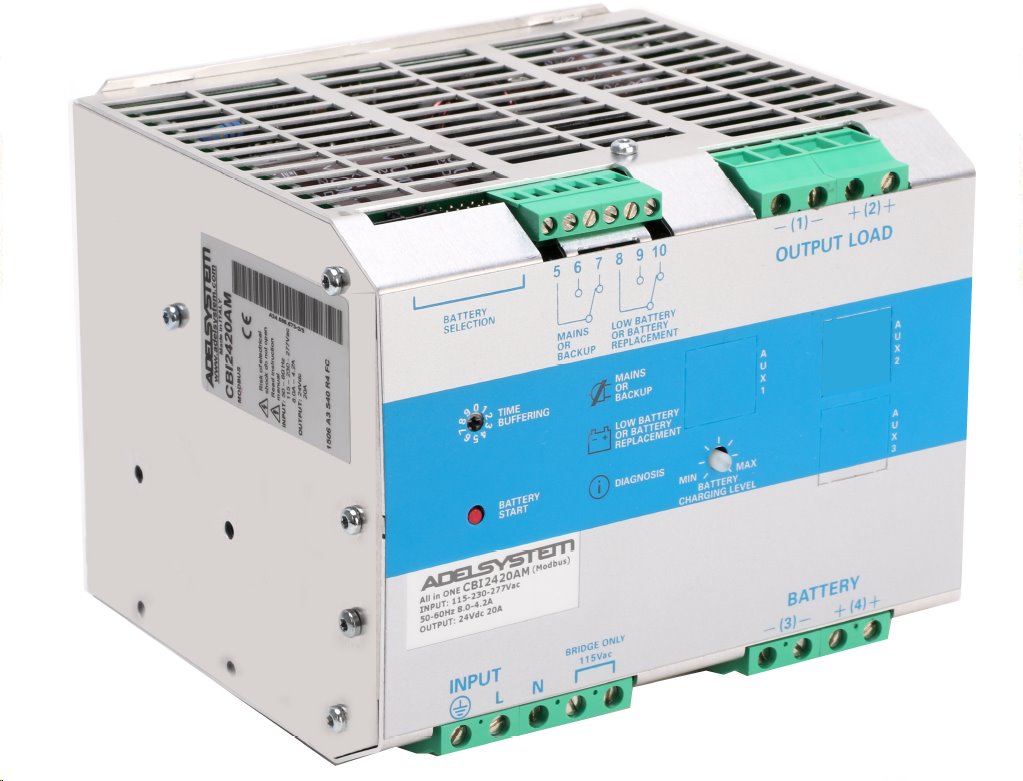

A number of industrial power supply backed up CBI sources (sometimes also known as DC-UPS) from the traditional Italian manufacturer Adel System brings the best technologies to the category of affordable sources. The CBI4810A is an AC/DC source with an input voltage of 115-230 V and a DC 48 V/10 and output, ie with a power input up to 500 W . In addition, the batteries can be connected to the power supply, and the powered device will remain in operation even in the event of a power failure.

The CBI4810A source has a smart monitoring and management system, so all devices can use any type of battery with a factory-optimized charging curve suitable for all the most common battery technologies: open lead, closed, gel/AGM, Ni-CD, LI-ion. The integrated battery life test ensures power reliability thanks to continuous testing of internal impedance. It prevents possible damage and provides permanent, reliable power supply-according to the parameters, the system is able to recognize sulfate batteries or batteries with short-circuit cells.

Other battery control and protection include:

• Testing Impedance of Traffic Wires-During maintenance charging, the status of the supply wires to detect poor contact
is checked every 20 seconds
• Short-circulated or sustained batteries-During maintenance charging every two hours is a test of internal impedance for detection of defective batteries
• Incorrect Polarity of Battery-Battery Conservation with opposite polarity
• Incorrect battery type-protection against connection of incompatible batteries
• temperature compensation-thanks to the connectable temperature sensor, the optimum charging curve is guaranteed at all temperature conditions
• Short-circuited cells-thanks to specific DC-UPS test algorithms recognize battery with internal short-circuit cells

The output voltage can be controlled in the range of 44 to 57 V, the source can withstand up to 100# i6per# overload of the output without disconnecting the load . Against short circuit is then protected by one of 3 optional methods: 1) Hiccup Mode 2) Continuous Out Mode 3) Manual Reset.

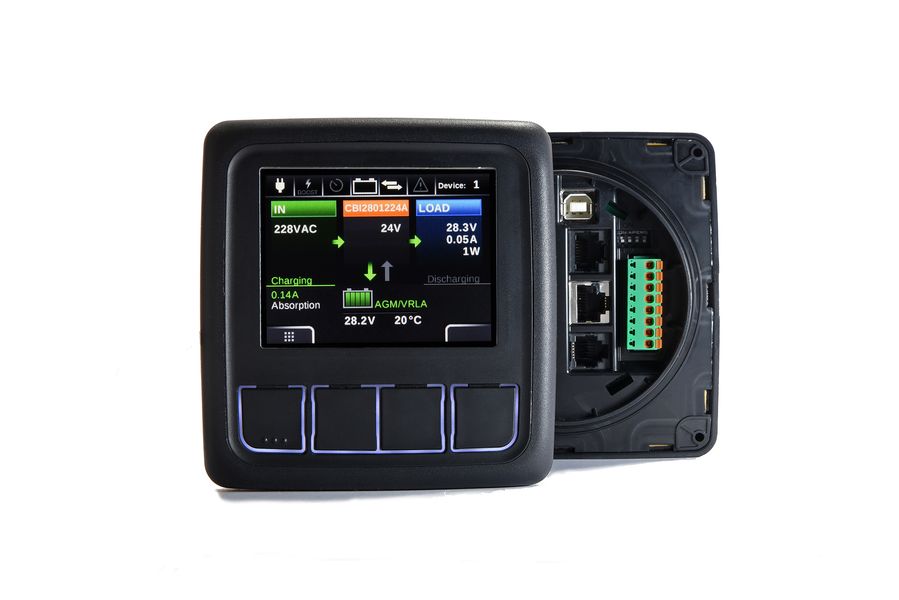

The CBI4810A source has a connection to the Modbus of the bus of the bus . It is therefore an ideal solution for system installations in industrial buildings where it can communicate with its superior system. In addition, thanks to the imaging module DPY351 can be displayed directly at the locality all the parameters of the connected resources. In addition, this module has a Ethernet interface, including its own http and SNMP interfaces -sources are no problem to connect to the existing network and monitor the power of power from around the world.
