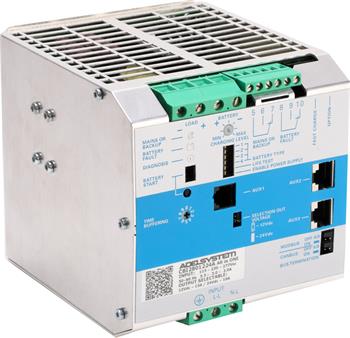

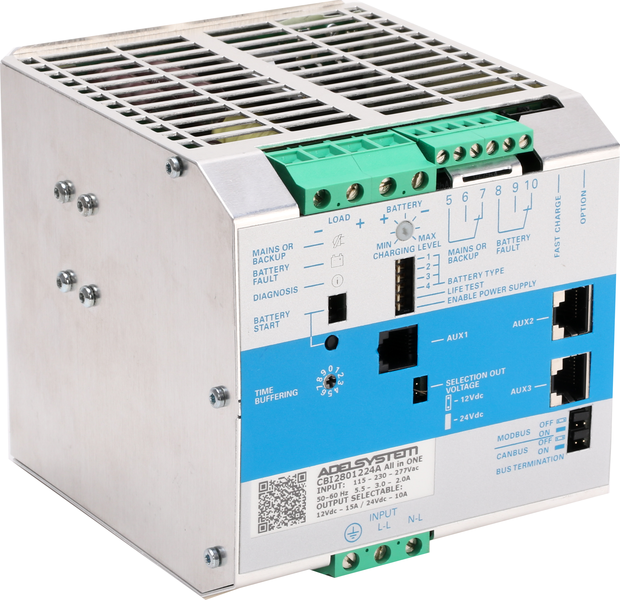

ADEL System CBI2801224A, Industrial backup power supply 12V+24V/15A+10A, 280W

A number of industrial power supply backup sources (sometimes also known as DC-UPS) from traditional Italian manufacturer Adel System brings the best technologies to the category of affordable sources. The CBI2801224A is an AC/DC source with an input voltage of 115-230V and a direct user option 12 or 24V . In addition, the batteries can be connected to the power supply, and the powered device will remain in operation even in the event of a power failure.

Source CBI2801224A has a smart monitoring system and battery management, all devices can use any type of battery with factory optimized charging curve suitable for all the most common battery technologies: open lead, closed, GEL/AGM, GEL/AGM Ni-cd, li-ion. The integrated battery life test ensures power reliability thanks to continuous testing of internal impedance. It prevents possible damage and provides permanent, reliable power supply-according to the parameters the system is able to recognize sulfate batteries or batteries with short-circuit cell.

Other battery control and protection include:

• Testing Impedance of Traffic Wires-During maintenance charging, the status of the supply wires to detect poor contact
is checked every 20 seconds
• Short-circulated or sustained batteries-During maintenance charging every two hours is a test of internal impedance for detection of defective batteries
• Incorrect Polarity of Battery-Battery Conservation with opposite polarity
• Incorrect battery type-protection against connection of incompatible batteries
• temperature compensation-thanks to the connectable temperature sensor, the optimum charging curve is guaranteed at all temperature conditions
• Short-circuited cells-thanks to specific DC-UPS test algorithms recognize battery with internal short-circuit cells

The output voltage can be controlled in the range of 22 to 28.8 V or 10 to 14.4 V, the source can withstand up to 100# i6per# overload of the output without disconnecting the load . Against short circuit is then protected by one of 3 optional methods: 1) Hiccup Mode 2) Continuous Out Mode 3) Manual Reset.

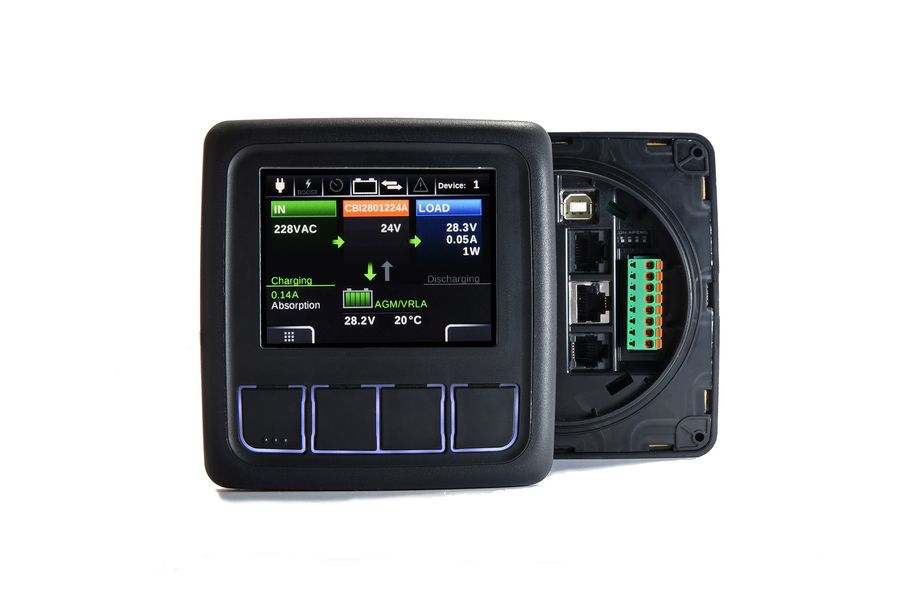

The CBI2801224A source has a connection to the Modbus of the bus of the bus . It is therefore an ideal solution for system installations in industrial buildings where it can communicate with its superior system. In addition, thanks to the imaging module DPY351 can be displayed directly at the locality all the parameters of the connected resources. In addition, this module has a Ethernet interface, including its own http and SNMP interfaces -sources are no problem to connect to the existing network and monitor the power of power from around the world.

Wide working temperature range (- 25 ° C to 70 ° C ), compact size including DIN rail holder and above standard 3 years warranty are a prerequisite for reliable operation at all times.

key features:

• input: 115-230 VAC
• Output: 12 or 24 VDC /15 and /10 and
• Efficiency: More than 91 #i6per #
• battery charging current up to 10 and (adjustable)
• Overload option up to 100 #i6per #
• Support Modbus Lip Protocol and Connection to DPY351 for remote Ethernet monitoring (Web/SNMP)
• Output relay (power signaling/low battery level)
• Advanced Management and Diagnostics of Battery
• Start button from batteries
• Three types of short-circuit protection: 1) hiccup mode 2) Continuous Out Mode 3) Manual Reset
• compact size + assembly on DIN
• 3 years warranty

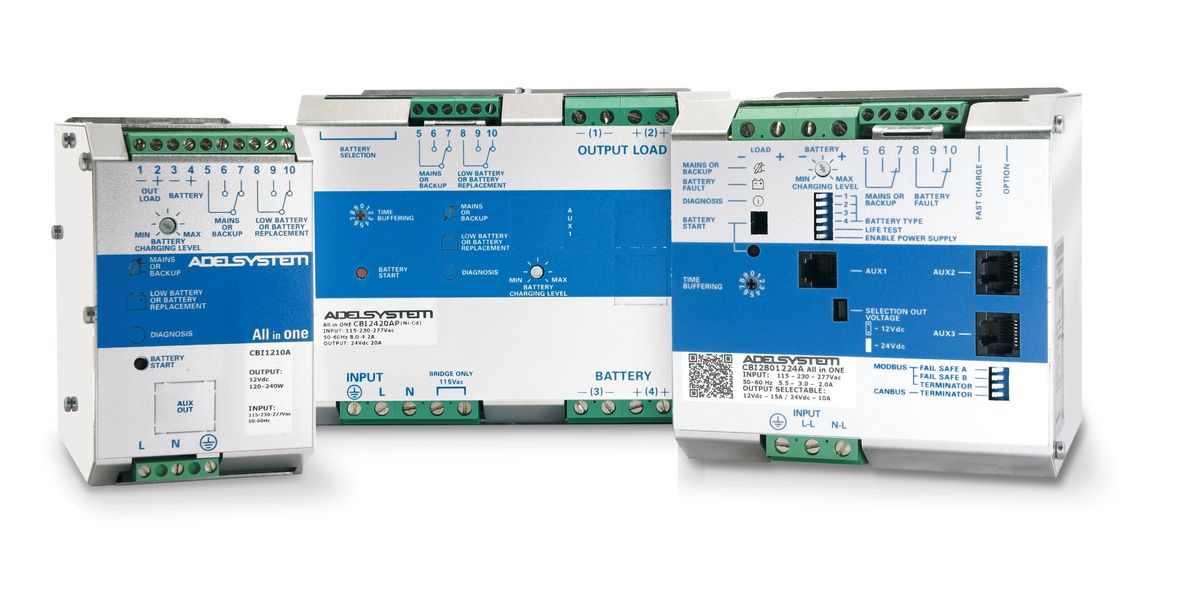

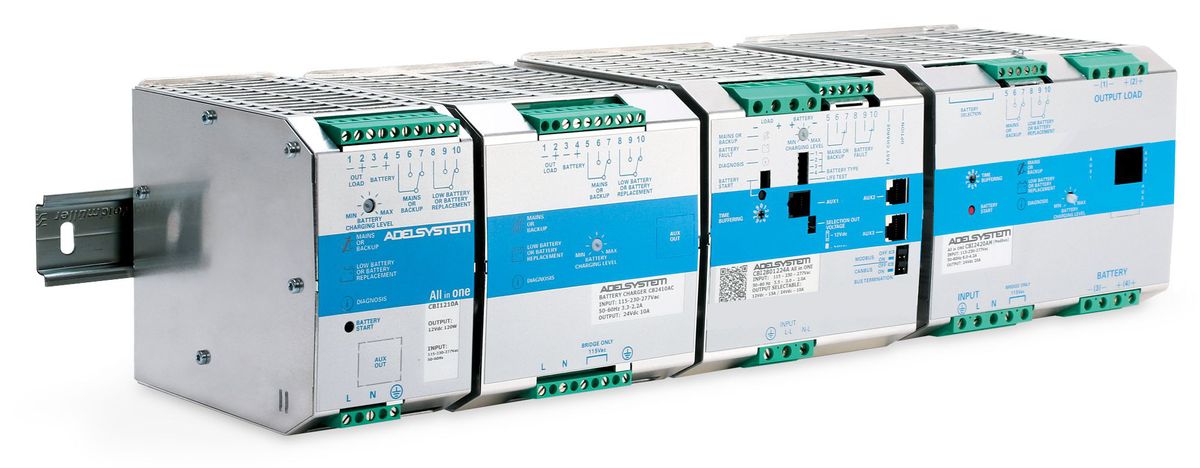

The complete portfolio of CBI sources and their parameters can be found in this catalog .
