WODASIGN EOC1121R4-Slave (no wifi)

These are adapters for data transfer Ethernet over coaxial cables, based on HomePlugAV technology, which offers a large range (700-1500 m), high speed (physical rate up to 700MB/s speed on the MAC layer of 350MB/s), interference immunity and operation even at high attenuation.
Easy to use device for connecting buildings to the Internet over a common coaxial divorce. Many units enables communication over a single coaxial line signal speeds of up to 700Mbps.

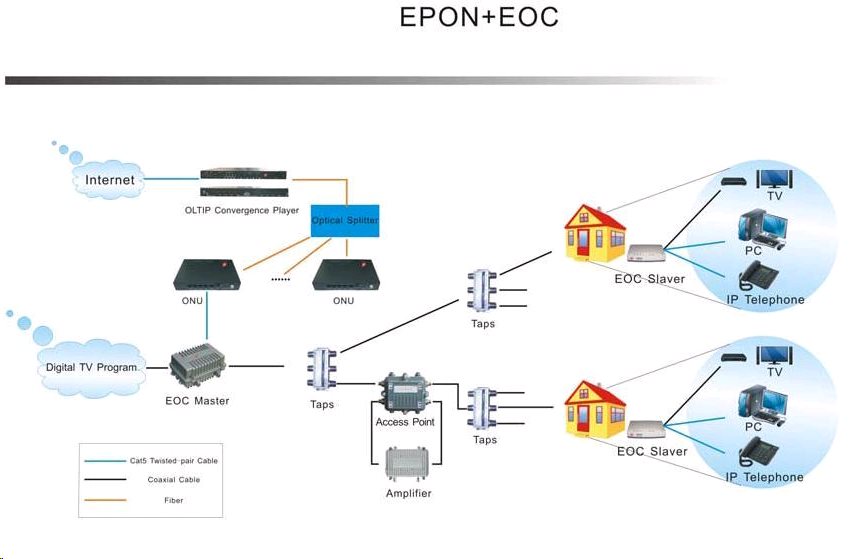

EoC means divorce Ethernet over coaxial network on the existing coaxial distribution system provides simultaneous transmission of cable TV/SAT signal along with the data signal. HomeFor application network contains EOC Head End unit called the Master that connects the TV signal data to the Ethernet coaxial mixed signal and the terminal unit called Slave. A master can serve up to 128 slave units, the network structure can be a star or tree (network structure may be a star or tree) HomeThe EoC master secures data transmission Ethernet over coax wiring is suitable for a wide range of deployment when implementing network applications, where you use existing coaxial wiring to the home installation (in-home) and commercial (offices, residential buildings, hotels, factories)
You do not need to install any new cables. This device allows you to realize high-speed network for the transmission of video, voice and data. The network structure is a star or tree with a single central master unit and multiple (up to 128) of slave units that can be isolated from each other (slave izolation).

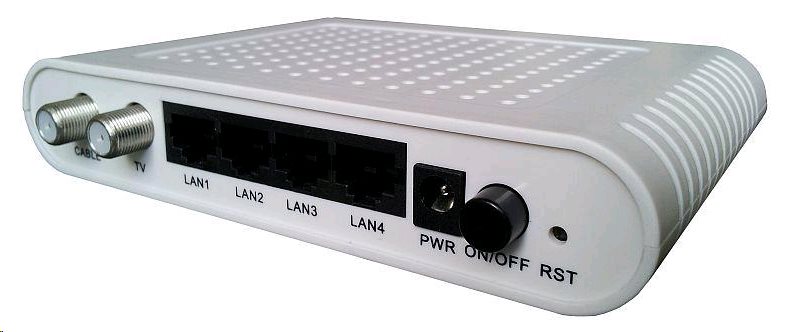

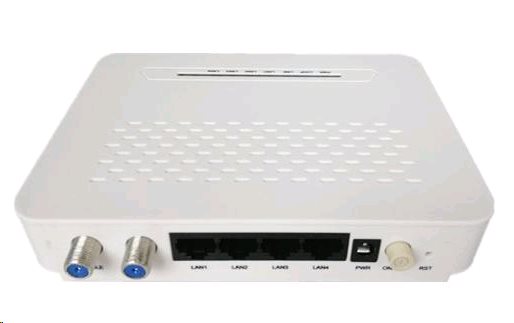

Slave units HomeThey have four Ethernet port for connection of terminal equipment. Slave units are configured and monitored via the NMS in the master unit. EoC slave unit is designed for end users and works with EoC master unit for connection and transmission of Ethernet over coaxial distribution. For mixed signal again converts the data output signal Ethernet and TV output TV. HomeSupports all the necessary networking features such as QoS, VLAN, IGMP, bandwidth management and more. Therefore appropriate to implement any network (for voice, video and IPTV) using existing coaxial cables HomeDepending on the installed CATV unit can be connected directly to the TV and outlet port. In the event that the attenuation of noise filter in older types of sockets allow such direct deployment is necessary to replace the outlet. Replaces called for. Bidirectional socket HomeThe device is intended for system MDU (Multi-Dwelling) that provides network administrators the ability to manage bandwidth. At the same time, this system allows the user location more (than the systems Ad-Hoc or Peer-to-peer). The system must be one powerful controller with management
Features:

Name	Value
LAN	4 10/100 Base-TX, Auto-Negotiation (10/100 Mbps)
Standards	IEEE 802.3
connectors F	2 F famele 75 Ohm, for connection to the coaxial lead and the TV receiver. Port for TV is passively connected to the input and works even when the device is turned off
Maximum number of units promaster unit:	128 slave
Max. the distance between two units (m):	800 to 1500 (depending on the structure and quality of the installation, valid for max RG59 cable cross section)
simultaneous operation with TV:	yes
Chipset	Qualcomm Atheros 7411
Signal Rate (Mbps)	700
Frequency band (MHz)	7.5-65
Max. attenuation on the line between master and slave (dB)	65
Output power (dBuV):	116
Power:	12V DC

symmetrical synchronous operation, the duplex transparent Ethernet bridge, independent of protocols, operating systems, transparent, does not need any software

802.1Q VLAN support, IGMP, 802.1p prioritization, bandwidth management/shaper-sets the master

external source 12V DC

Master unit HomeIt is connected to a switch or router, and access to data for all slave units. The Master also includes a central NMS/Network Management System /, which is the old configuration and diagnostics across networks and is accessible via remote IP management WEB, Telnet, SNMP, CLI
