UBNT Wave Pico, 60 GHz
Compare Set Watchdog

UBNT Wave Pico, 60 GHz

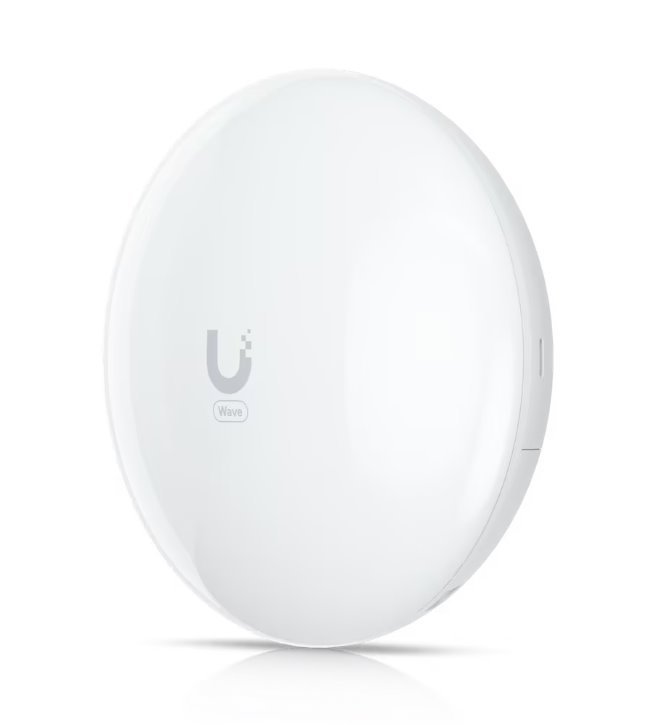

Ubnt Wave Pico is a 60GHz client unit with an antenna gain of 27 dBI designed for PTMP (Point-to-Multipoint) connections with a speed of up to 2 GB/s.More information

Producer
  Ubiquiti

Part No.


Wave-Pico


Code
 00073906
Warranty
24 Month
Regular selling price exc. VAT
148.93 EUR
The discount is calculated against the lowest regular selling price for which the product was sold in the last 30 days before the start of the discount event.
Your price exc. VAT
146.97 EUR exc. VAT
VAT
21%
Your price inc. VAT
177.83 EUR  inc. VAT


    Ask for a better price

    Your e-mail
    Phone
    Quantity
    Comment

    Description

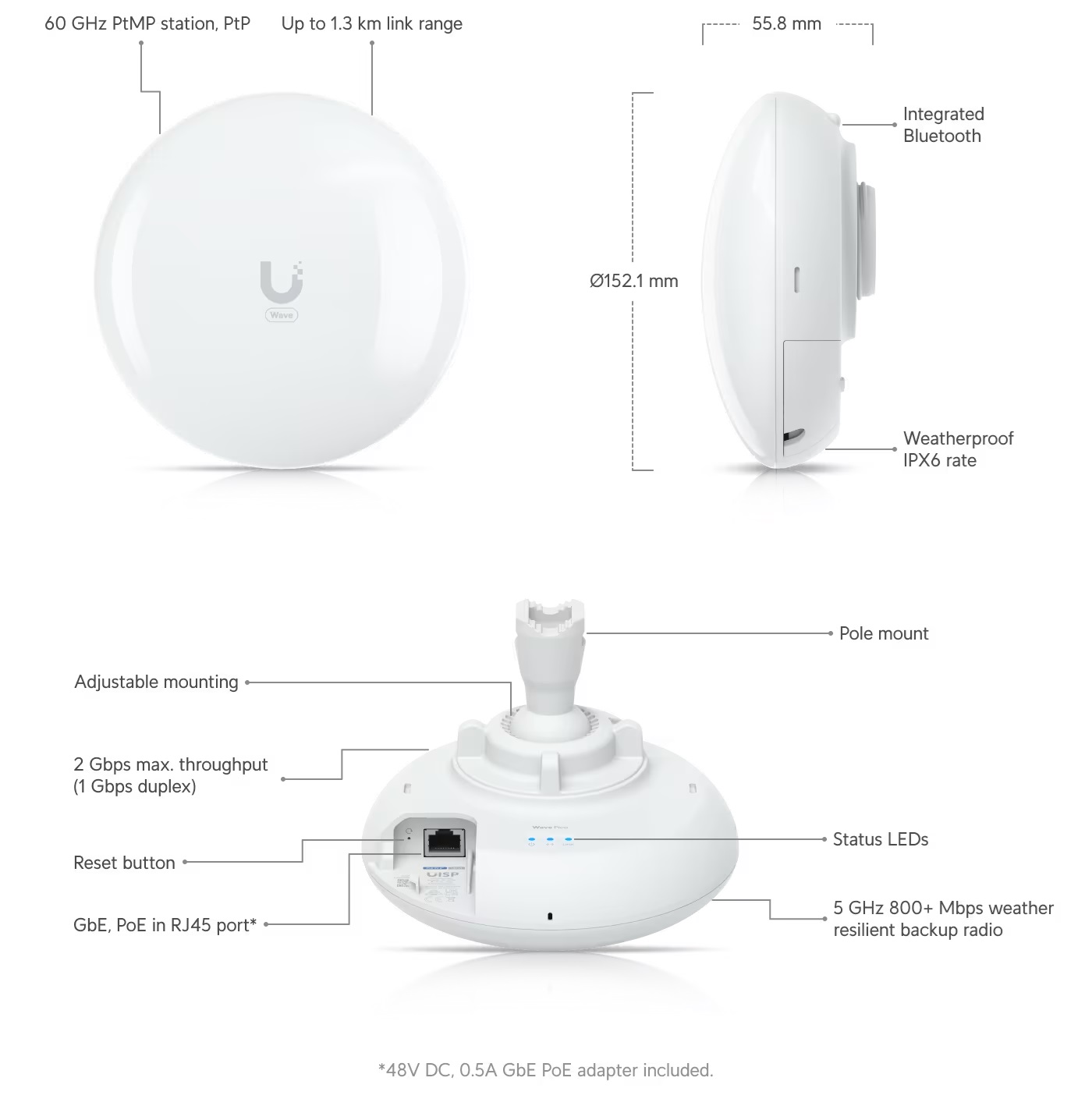

    Ubnt Wave Pico is a 60GHz client unit with 27 dBi for PTMP (point-to-multipoint). The unit is equipped with a 5GHz backup with a speed of 800+ Mb/s to maintain connectivity even in bad weather. For the best possible availability, 5GHz Radio (802.11AX WiFi 6) is a backup . The maximum range with Wave AP is 1.3 km and use with Wave AP Micro 0.9 km. The width of the channel can be 1080 and 2160 MHz. The device permeability is 2 GB/s (1 GB/s duplex) using 5 GHz use only 800 Mb/s.

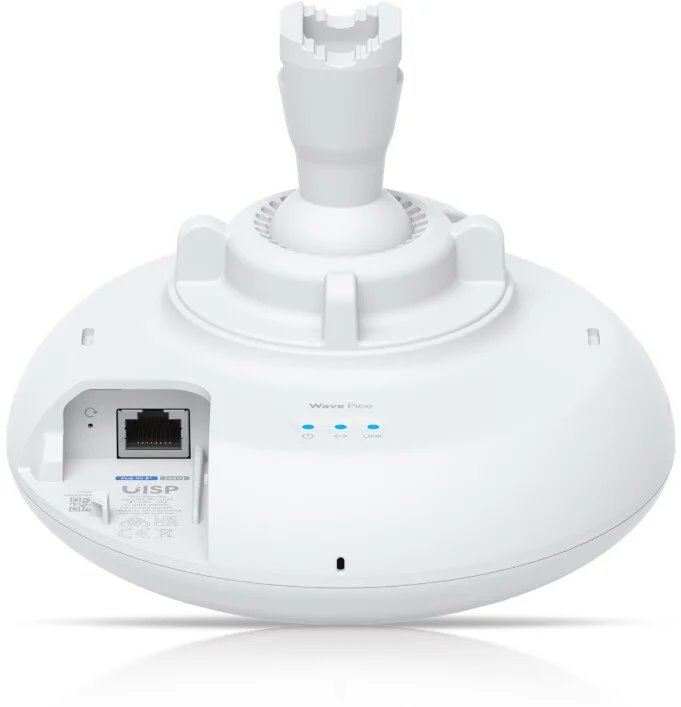

    • gigabit rope -port with supporting PoE (24 or 48 V DC)
    • UISP mobile app -Settings via Web Management and Bluetooth
    • Certification according to EN 303 722, ie legal use in the range of 66-71 GHz

    Package content

    • device

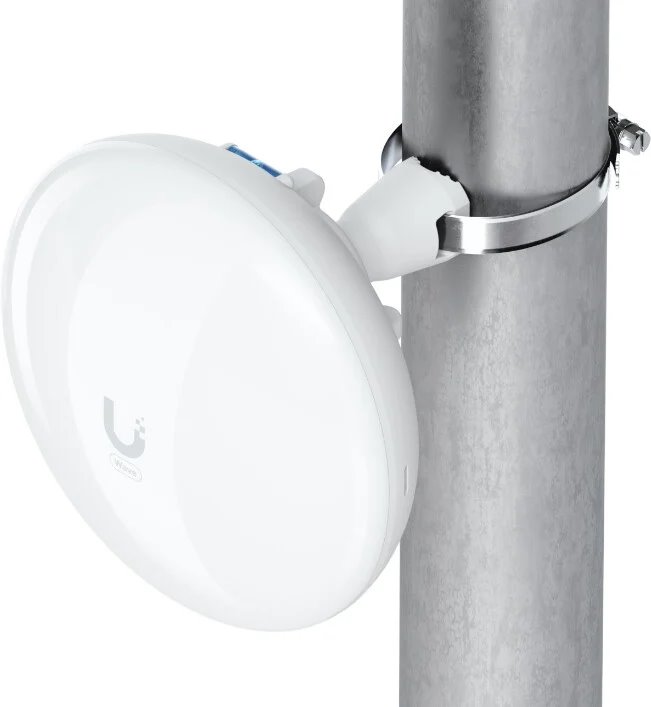

    • mast bracket with precise lazing (for masts 20 to 53 mm)
    • Gigabit PoE power adapter 48 V/0.5 and
    • Quickstart

    Parameters

    Antenna gain 5 GHz (dBi) 9
    Antenna gain 60 GHz (dBi) 27.7
    Bluetooth Yes
    Consumption 10
    Encryption WPA2 AES
    IP protection IPX6
    Management Yes
    Max. počet klientů 24
    Power Supply PoE

    Ethernet parameters

    LAN port speed 1 Gbps
    Network interface (Mbps) 10/100/1000
    Number od RJ45 ports 1

    Physical parameters

    Depth (mm) 55.8
    Design Outdoor, Na stožár
    Height (mm) 152.1
    Operating Temperature -40° až +60°C
    Počet LAN portů 1
    Weight (kg) 0.409
    Width (mm) 152.1

    Wireless parameters

    Frequency 5 GHz, 60 GHz
    Operating mode Client
    WiFi Standards WiFi 6 (802.11ax)
    WiFi transfer rate - 5 GHz [Mbps]: 800
    WIFI transfer rate - 60 GHz [Mbps] 2000
    All parameters Less parameters

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    +420 601 570 595
    stejskal@vanco.cz

    Product question

    Product question

    E-mail
    Phone
    Enquiry

    Do you need help?

    We will help you with product selection or technical problems.

    (+420) 246 035 451 Information and orders

    Ing. Jan Stejskal

    Product manager
    (+420) +420 601 570 595
    stejskal@vanco.cz

    Downloads2

    Průvodce instalací
    Wave_Pico_inst.pdf Format pdf (1 651.3 kB) Download
    Datasheet
    Wave_Pico_ds.pdf Format pdf (1 098.8 kB) Download
