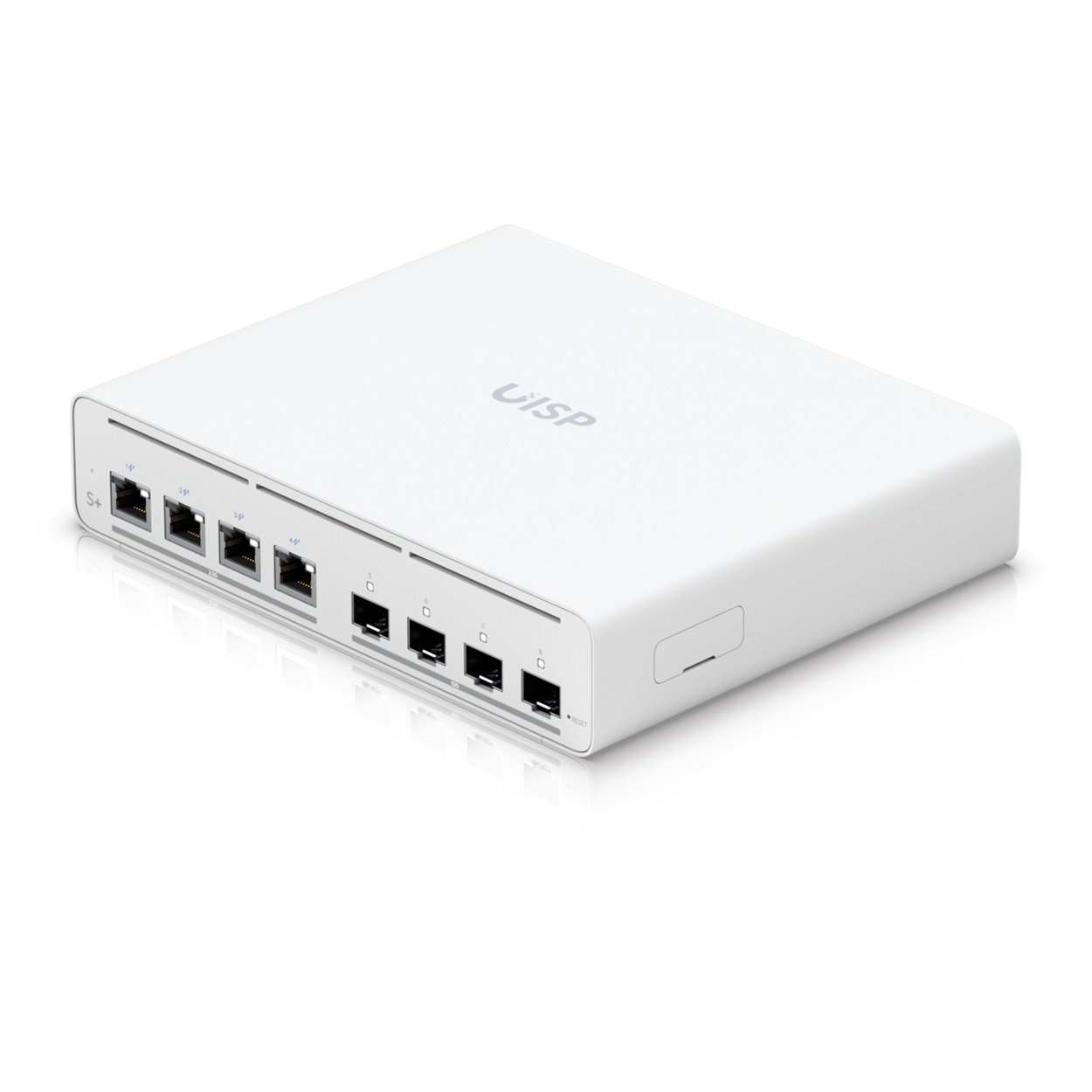

UBNT UISP Switch Plus

Name: UBNT UISP Switch Plus
Brand: Ubiquiti
SKU: 62570
Price: 423.97 EUR
Availability: InStock

UBNT UISP Switch Plus is a powerful L2 PoE switch without fan with 4x LAN ports (speeds up to 2.5 Gb/s) and 4x SFP+ ports (up to 10 GB/s. Total PoE Budget is 160 W.More information

Producer

Ubiquiti

Part No.

UISP-S-Plus

Code

00073955

Warranty

24 Month

Availability

Availability in stores

Order

Regular selling price exc. VAT

350.48 EUR

The discount is calculated against the lowest regular selling price for which the product was sold in the last 30 days before the start of the discount event.

Your price exc. VAT

350.39 EUR exc. VAT

VAT

21%

Your price inc. VAT

423.97 EUR inc. VAT

Ask for a better price

Description

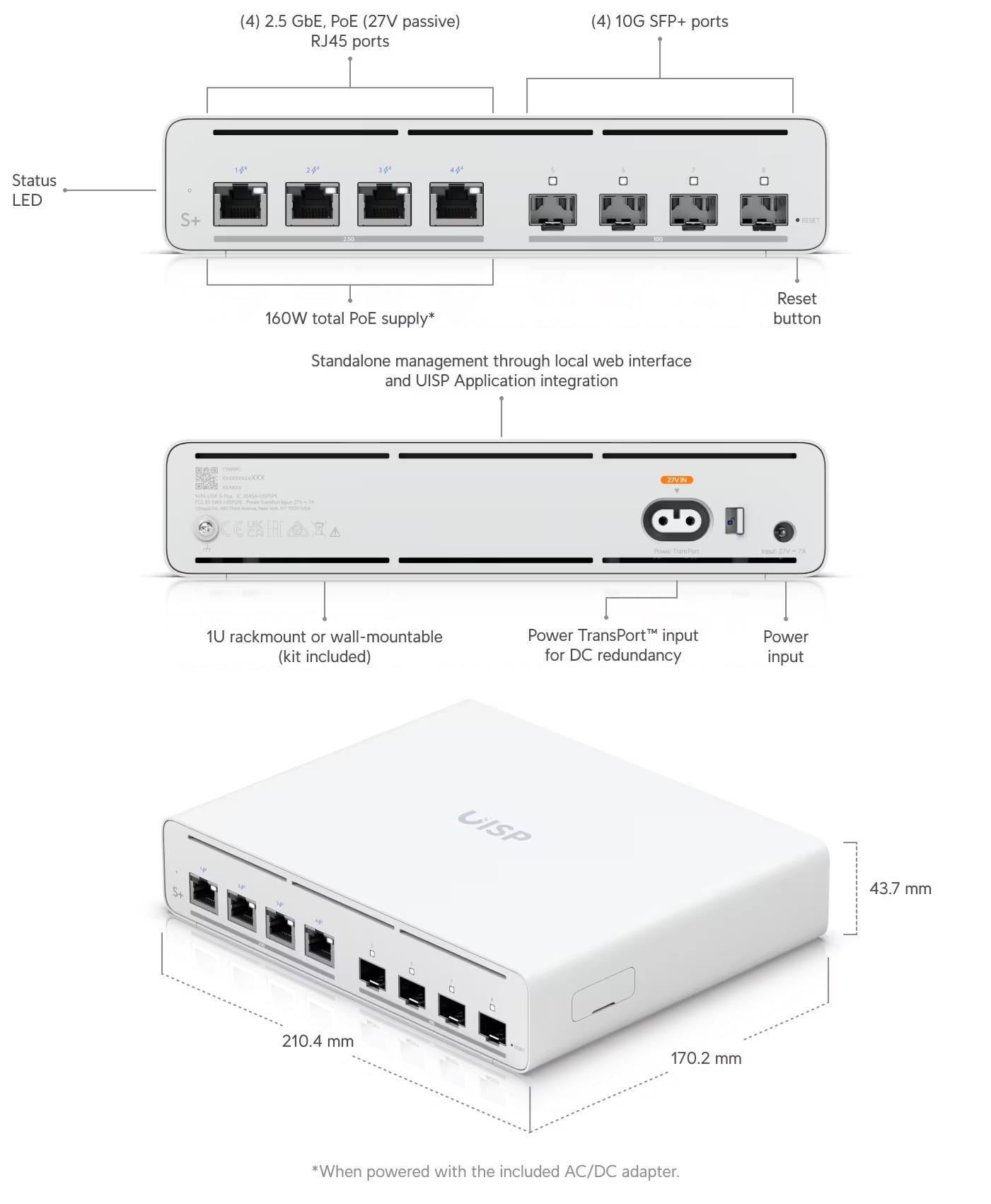

Ubnt UISP Switch Plus (UISP-S-Plus) is a powerful L2 PoE switch designed for both home and offices. There are 4x LAN ports with a speed to 2.5 GB/s and passive 27 in Poe output. The optical interface offers 4x SFP+ ports at to 10 GB/s . It provides 160 W Poe Budget . The switch also has two power supply, one of which is transport, designed as a backup DC power supply in the event of a power failure from the original source. Switch has a capacity of 100 Gbps, total non-blocked permeability of 50 Gbps and the speed of packets up to 74 MPPS.

The UISP Switch Plus can be managed using UISP (centralized platform) or via a regular web interface.


key features:

4x LAN ports up to 2.5 Gb/s
4x SFP+ ports up to 10 Gb/s
Fanless-a quiet running without a fan
Power Transport input for direct current redundancy
DHCP SNOOPING, Port insulation, speed settings to individual ports

Package content:

device
Hlink cable (AC)
rj45 cable
mounting kit to rack

Parameters

Ethernet parameters
Bluetooth	Yes
Consumption	25
Fan	No
Management	Yes
Material	Plastic
Platforms	UISP
PoE Type	Output
Power Supply	DC
Redudant power supply	yes
Gigabit LAN	yes
Network interface (Mbps)	10/100/1000/2500/10000
Number od RJ45 ports	4
Number of LAN ports 10/100	0
Number of LAN ports 10/100/1000/2500	4
Number of SFP (1G) ports	0
Number of SFP+ (10G) ports	4
Optical parameters
Optické rozhraní	1/10 Gbps
Physical parameters
Depth (mm)	170
Design	Standalone, Na zeď
Height (mm)	44
Height (U)	1
Operating Temperature	-10° až +50 °C
Weight (kg)	1.750
Width (mm)	210
PoE parameters
Number of PoE ports	4
PoE budget (W)	160
PoE standard	Pasivní, 802.3at, 802.3af
Powering
PoE	Yes
