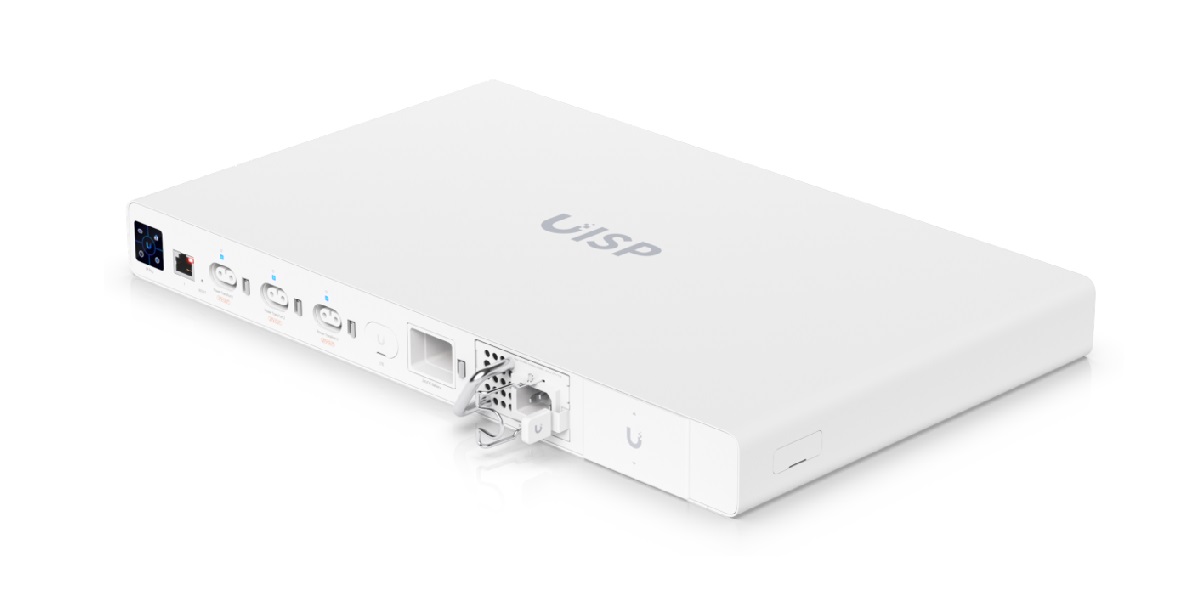

UBNT UISP Power Pro, uninterruptible power supply system

Ubnt UISP Power Pro (UISP-P-Pro) is a source of uninterruptible power designed for wireless points of internet connection. From the production fitted with one source, it provides power 240 W at 27 V DC output voltage. Optionally, the second power supply can also be purchased and installed to increase the output power to to 480 W . In addition to power supply from the 230 V mains, the power supply can also be supplied with a lead battery with a voltage of 24 V (maximum current load corresponds to an output of 500 W, ie 20.83 a).

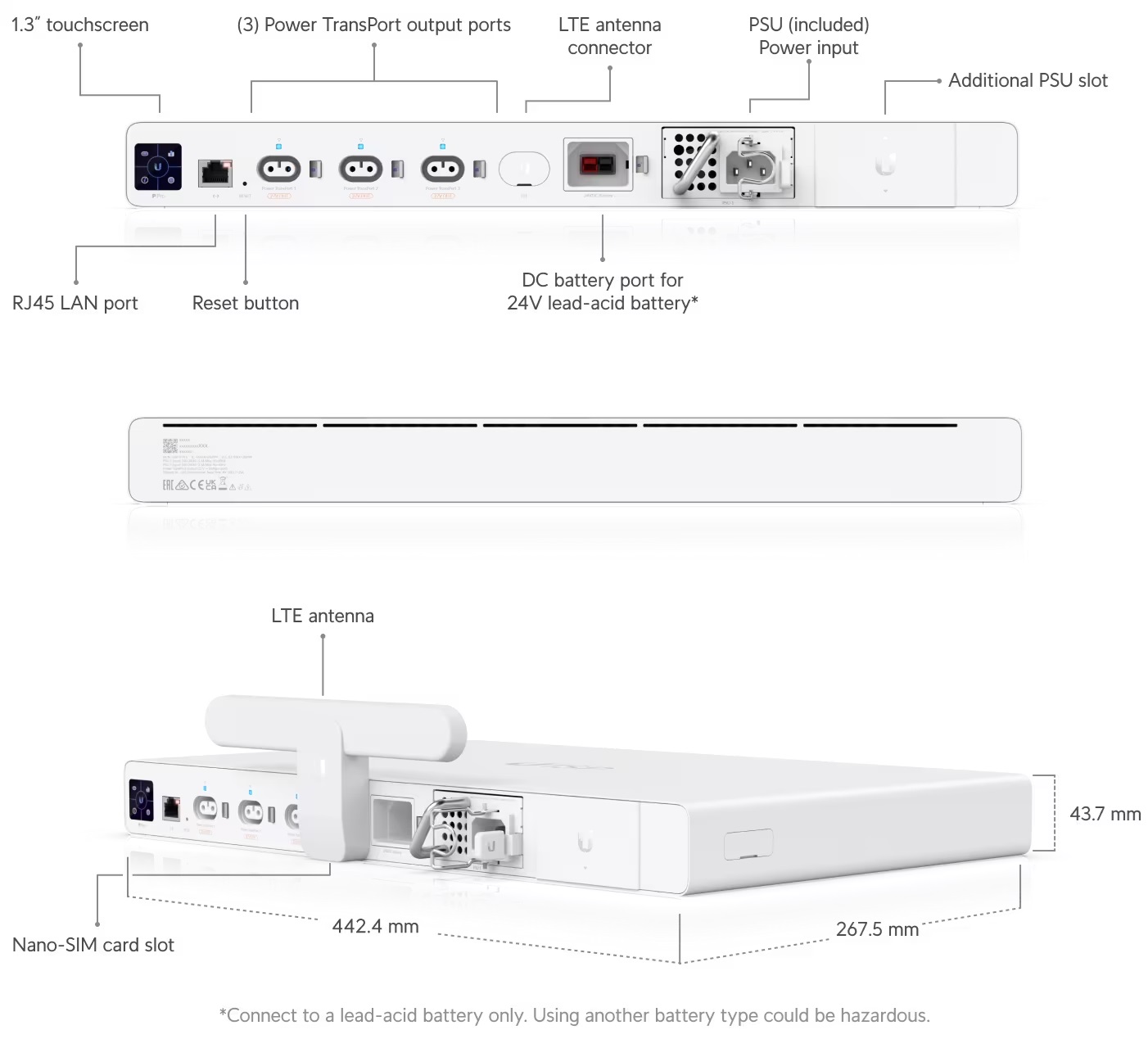

The source is equipped with three transport , which is compatible with selected UISP devices. In addition to transport outputs, there are 2 power supply shafts on the front (1 fitted), a connector for the connection of the lead battery, and there is a 1.3"touch screen, 1x RJ45 Management Port and LTE Connector .

For immediate information about the change of status, a LTE module is available, including the assembly accessories included. After inserting the SIM card with SMS-Over-LTE (LTE Cat M1), the device sends a notification about its status. The LTE module can be fastened directly to the source or using an extension cable to the magnetic surface, or a sticking holder can be used.


Compatible devices:

• UISP Console
• UISP Router (installed in UISP-Box)
• UISP Router for
• UISP Switch (installed in UISP-Box)
• UISP Switch for

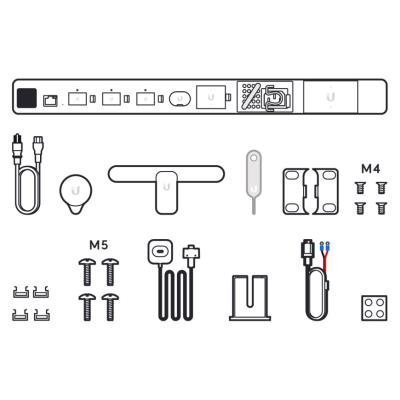

Package content:

• device
• 2x rack mounts
• 4x M4 screws
• 4x set for attaching to the seagull
• power cable
• cable for attaching lead battery
• lte module with antenna
• extension cable for LTE module with magnetic holder
• sticking holder LTE module
• Needle on SIM card
• plastic crowbar
• 4x sticking rubber pad
